4. Device installation | 4.3 - Hardware construction | 56
Switch settings
PR 5110
ON: S1, S2, S3
OFF: S4, S5
Configuration example
PR 5310 PR 5110
- [SI071] [rENdSP] [Port] [r
S485] [bAud] [9600] [Mod
E] [ HALF]
[ ] [oP 10] [LInE] [rS485]
[ ] [oP 12] [tokEn] [oFF]
[ ] [oP 13] [SEndModE] [SEnd]
4.3.4.2.2 ModBus point-to-point connection (2-wire)
2-wire transfer mode:
Half duplex (simultaneous sending and receiving not possible)

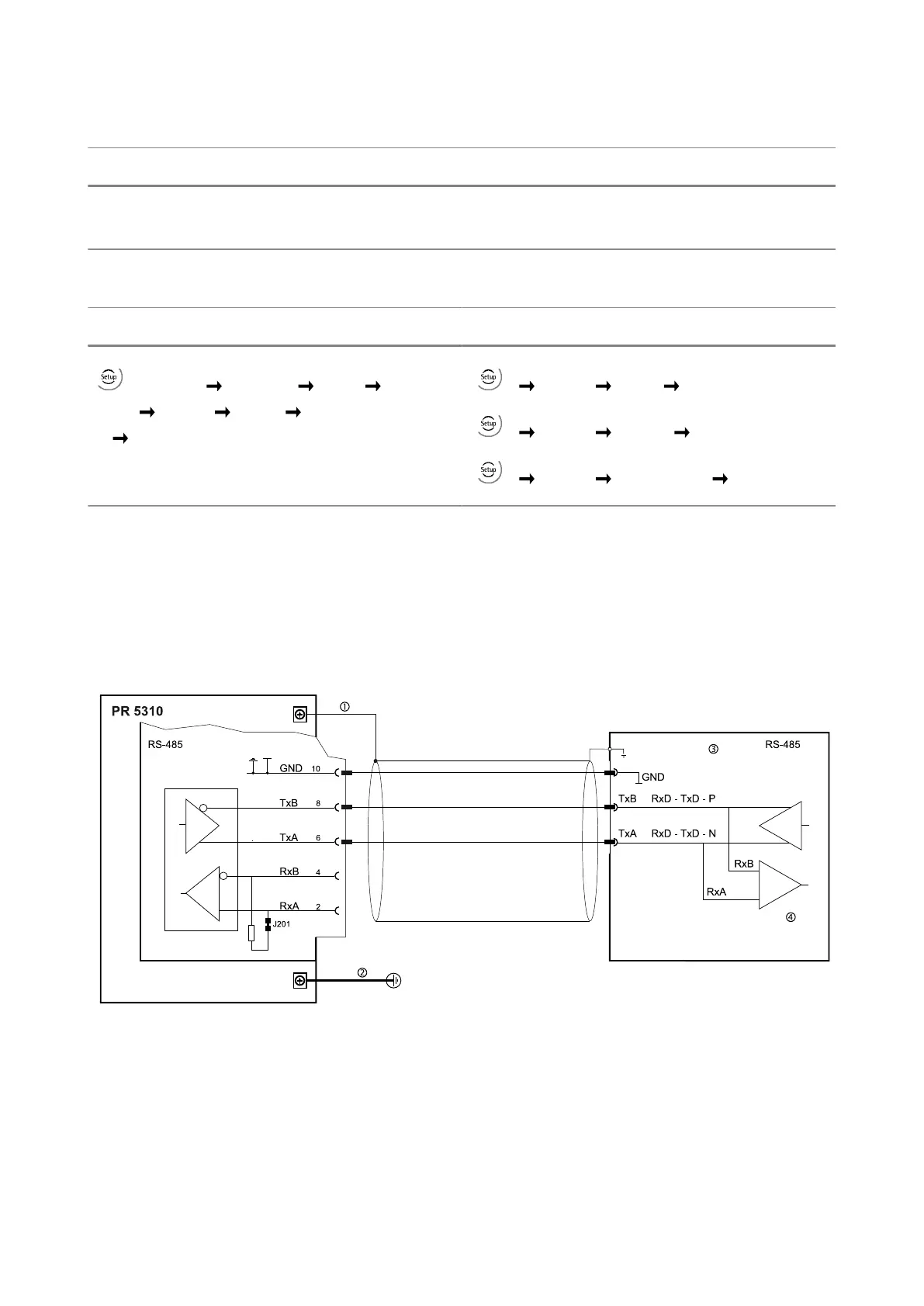

Connection example panel device
①Screen
②Potential equalization
③Indicator
④Half duplex
