4. Device installation | 4.3 - Hardware construction | 55
4.3.4.2.1 Connection of the remote display PR5110 via RS-485
The PR5110 remote display can be connected to the device via the internal
RS-485 interface.

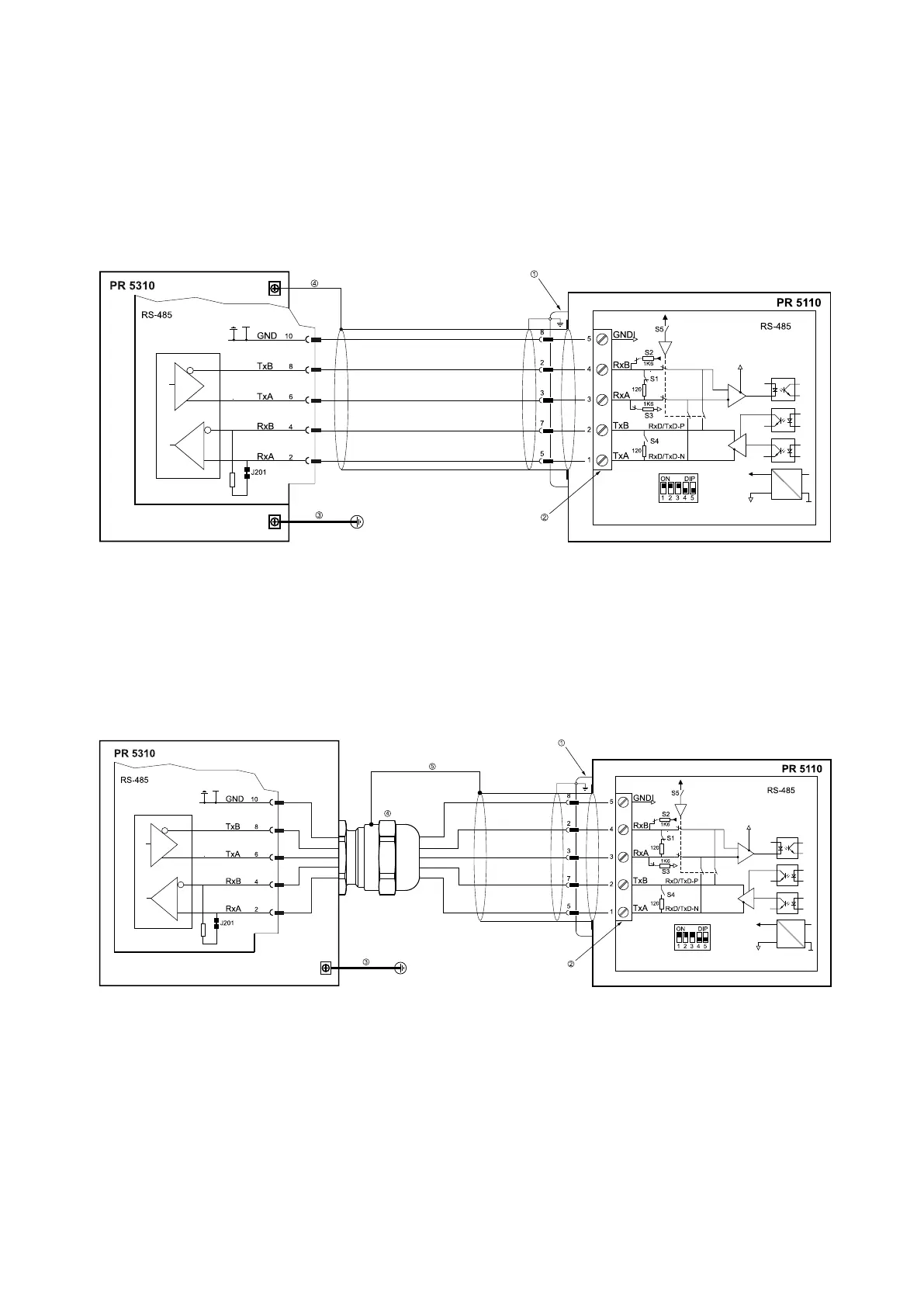

Connection example panel device
①
D‑Sub
9-pin plug connector (male)
②5-pin plug connector
③Potential equalization
④Screen
Connection example table-top device
①
D‑Sub
9-pin plug connector (male)
②5-pin plug connector
③Potential equalization
④Cable gland
⑤Screen
