4. Device installation | 4.3 - Hardware construction | 54
4.3.4.2 RS-485 interface
Technical data
Name Data
External connection Plug connector, 26-pin
Number of channels 1
Type
RS‑485,
full duplex
(4‑wire)
RS‑485,
half duplex
(2‑wire)
Transfer rate 1200…38 K4 bit/s
Signals TxA, RxA, TxB, RxB
Potential isolation no
Cable gauge max. 1.5mm
2
Cable length max. 1000m
Cable type Twisted pair, screened (e.g. LifYCY 3x2x0.20), 1pair
of wires for ground (GND).
Cable screen must be connected to the housing at
the rear wall or in the cable gland.

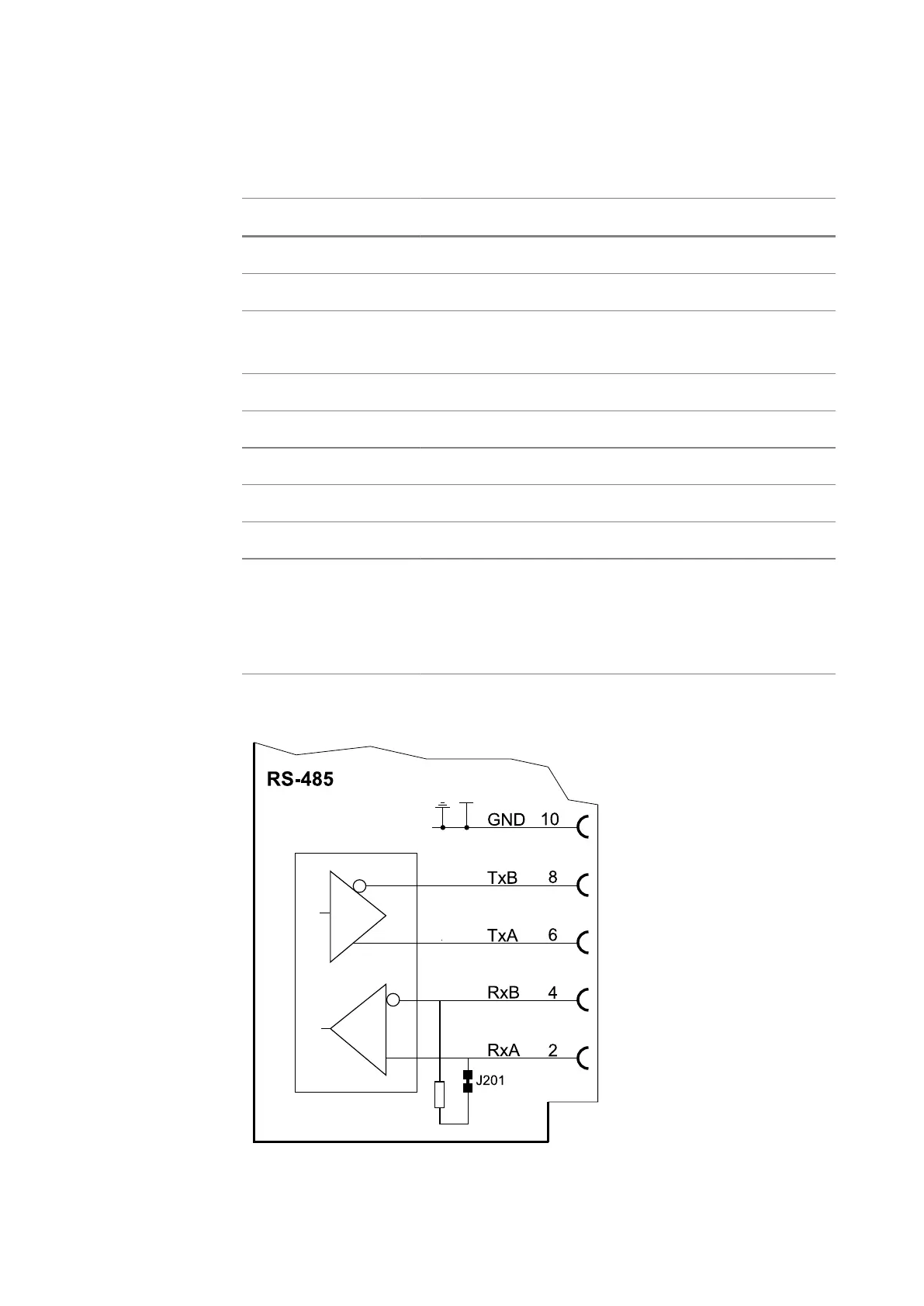

Block diagram
