4. Device installation | 4.3 - Hardware construction | 53

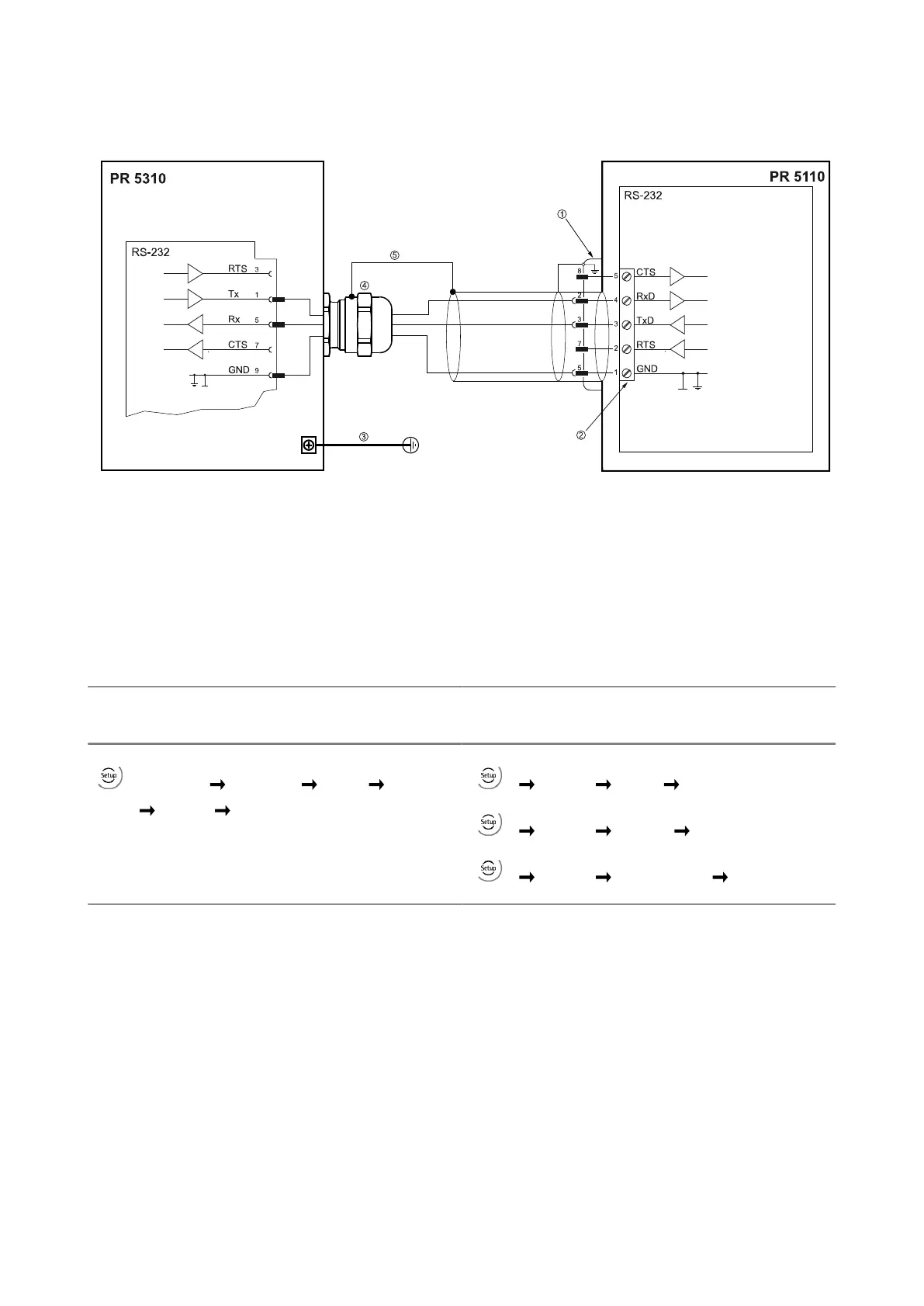

Connection example table-top device
①

D‑Sub
9-pin plug connector (male)
②5-pin plug connector
③Potential equalization
④Cable gland
⑤Screen
Configuration example
PR 5310 PR 5110
- [S1071] [rENdSP] [Port] [r
S232] [bAud] [9600]
See also ChapterConfiguring the serial in
terface for the remote display.
[ ] [oP 10] [LInE] [rS232]
[ ] [oP 12] [tokEn] [oFF]
[ ] [oP 13] [SEndModE] [SEnd]
