MIOX RIO H4 - Auxiliary 24 V Power Connection; Figure 11 Auxiliary 24 V Power Connector; Table 4 Auxiliary 24 V Power Connector Name and Description

MIOX RIO Series Operators Manual
P/N: 102-00076-G Page 21
Auxiliary 24V Power Connection
The auxiliary power connector provides field connection points to provide 24V power to the
auxiliary relays. Current is limited to 1 AMP and is fused internally. Table 4 provides the
description for each terminal
Table 4 Auxiliary 24V Power Connector Name and Description
Connection Name Description
+24VDC +24 volts DC power
+24VDC +24 volts DC power
24V Return Return connection for 24VDC power
24V Return Return connection for 24VDC power
PE1 Physical Earth connection
PE2 Physical Earth connection

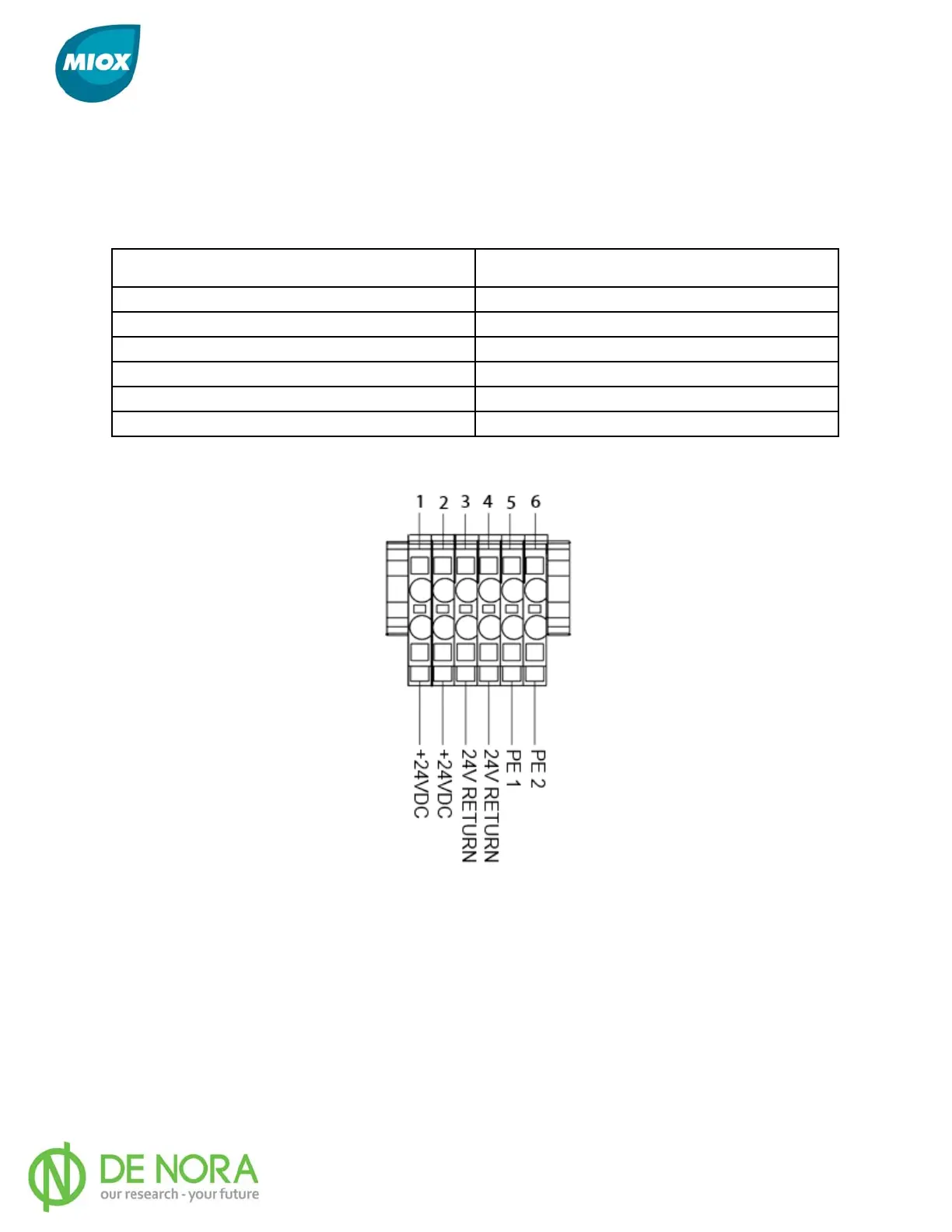

Figure 11 Auxiliary 24V Power Connector
