MIOX RIO Series Operators Manual
P/N: 102-00076-G Page 33

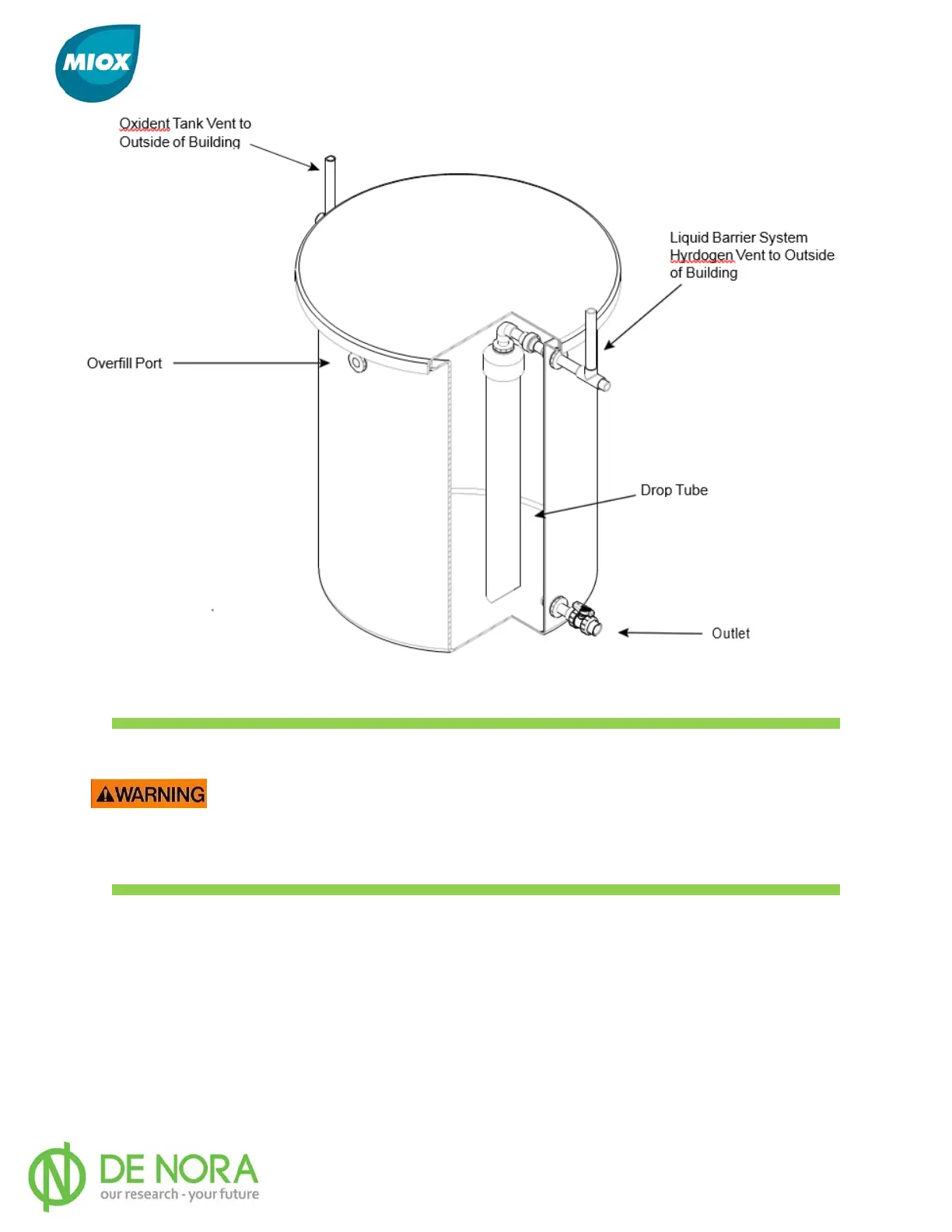

Figure 19 Oxidant Tank Vents
All oxidant tanks must have a properly installed LBS Vent and Oxidant
Tank Vent to operate safely. An optional Dilution Air System can be
supplied upon request and on large installations, a combination stand
pipe and Dilution Air System can be used. Refer to MIOX ’s
Hydrogen
Safety White Paper
for additional details.
