MIOX RIO H4 - Dilution Air Connection; Figure 12 Dilution Air Connector; Table 5 Dilution Air Connector Name and Description

MIOX RIO Series Operators Manual
P/N: 102-00076-G Page 22
Dilution Air Connection
The dilution air connector provides field connection points for an auxiliary dilution air system
and/ or associated external dilution air system sensors. The connections supported include a
MIOX external dilution air enable, MIOX external dilution air system failure input, and two
other failure inputs. The failure inputs can be connected to either external differential
pressure switches or an external flow switch with dry contacts. Pins 19 and 20 (Figure 12)
should be wired to the Dilution Air Panel Relay to turn on the auxiliary panel. Table 5
provides the description for each terminal.
Table 5 Dilution Air Connector Name and Description
Connection Name Description
DAE +24 VDC
+24VDC enable signal for MIOX external dilution air
system
DAE Return Return for enable
DAS Fail 1-1 Failure Input 1; 24VDC OK - 0 VDC FAIL
DAS Fail 1-2 +24VDC source of Failure Input 1
DAS Fail 2-1 Failure Input 2; 24VDC OK - 0 VDC FAIL
DAS Fail 2-2 +24VDC source of Failure Input 2
DAS Fail 3-1 Failure Input 3; 24VDC OK - 0 VDC FAIL
DAS Fail 3-2 +24VDC source of Failure Input 3

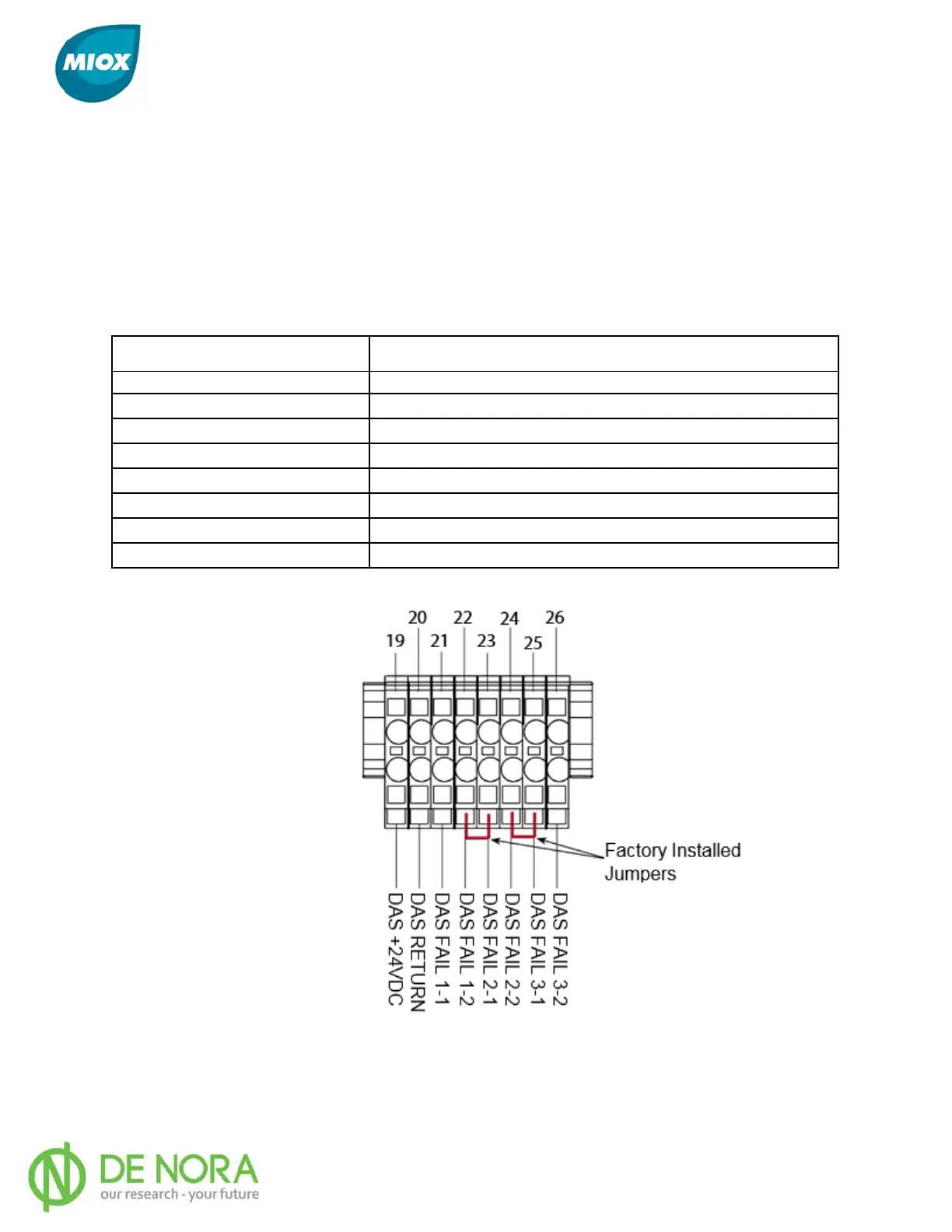

Figure 12 Dilution Air Connector
