MIOX RIO Series Operators Manual
P/N: 102-00076-G Page 41
Cell Lead/Bussbar Connection
Apply electric joint compound to the cell lead lug and the ½” bolt. Align the cell lead lug with
the hole on the buss bar and fasten with the ½” bolt, washers, and nut. The bolt head should
face the front of the cell followed by a split washer, flat washer, cell lead, bussbar, flat
washer, and nut (Figure 25). Tighten bolt to 40 ft./lbs. ± 2 ft./lbs. (54 N·m ± 2.7 N·m).

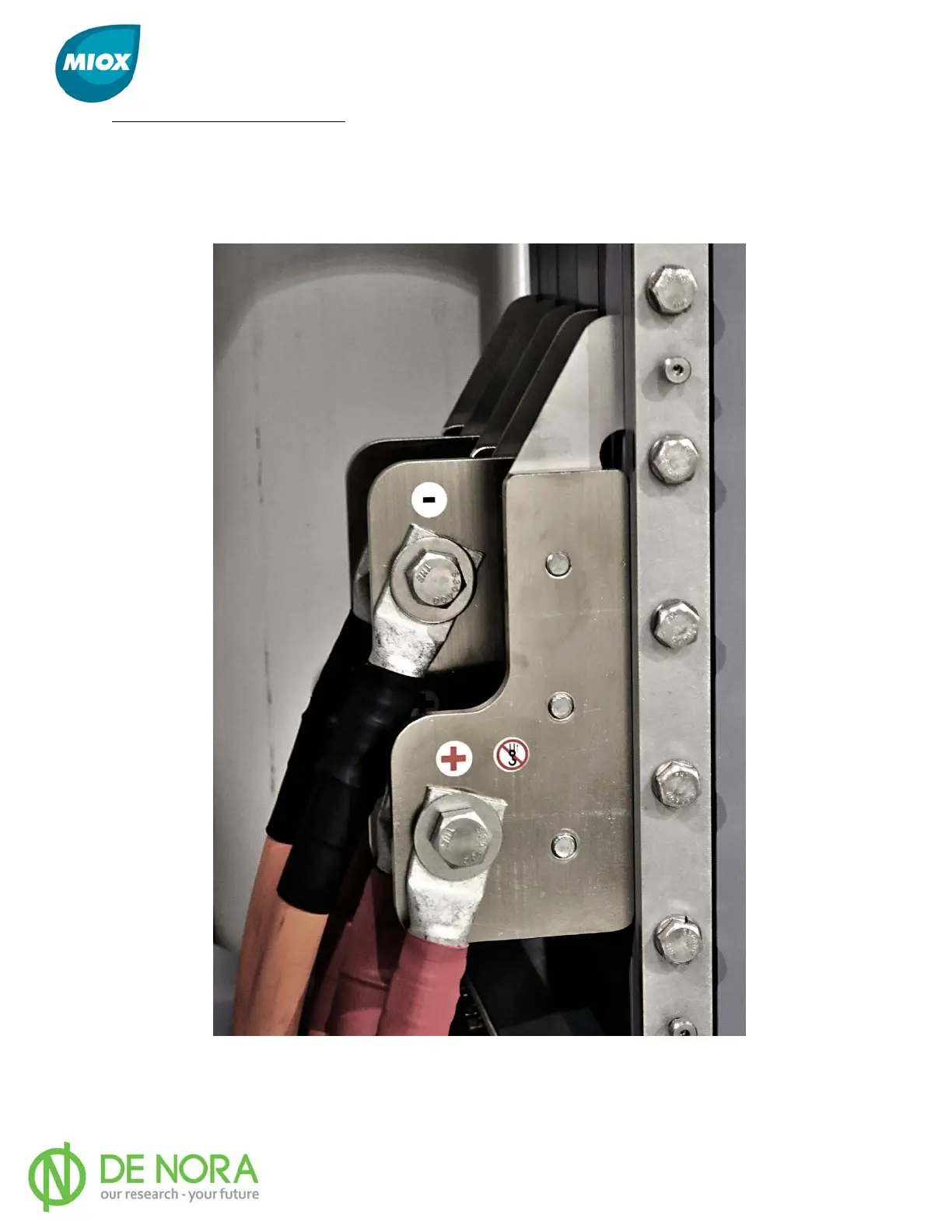

Figure 25 Cell Lead and Buss Bar Connection
