Mircom TX3-200-4U-C - Figure 2 Dimensions of TX3-UFT and the Universal Enclosure; Figure 3 Mounting TX3-UFT Universal Series Flush Trim Ring

20 TX3 Telephone Access System Installation and Operation Manual
Enclosure Installation

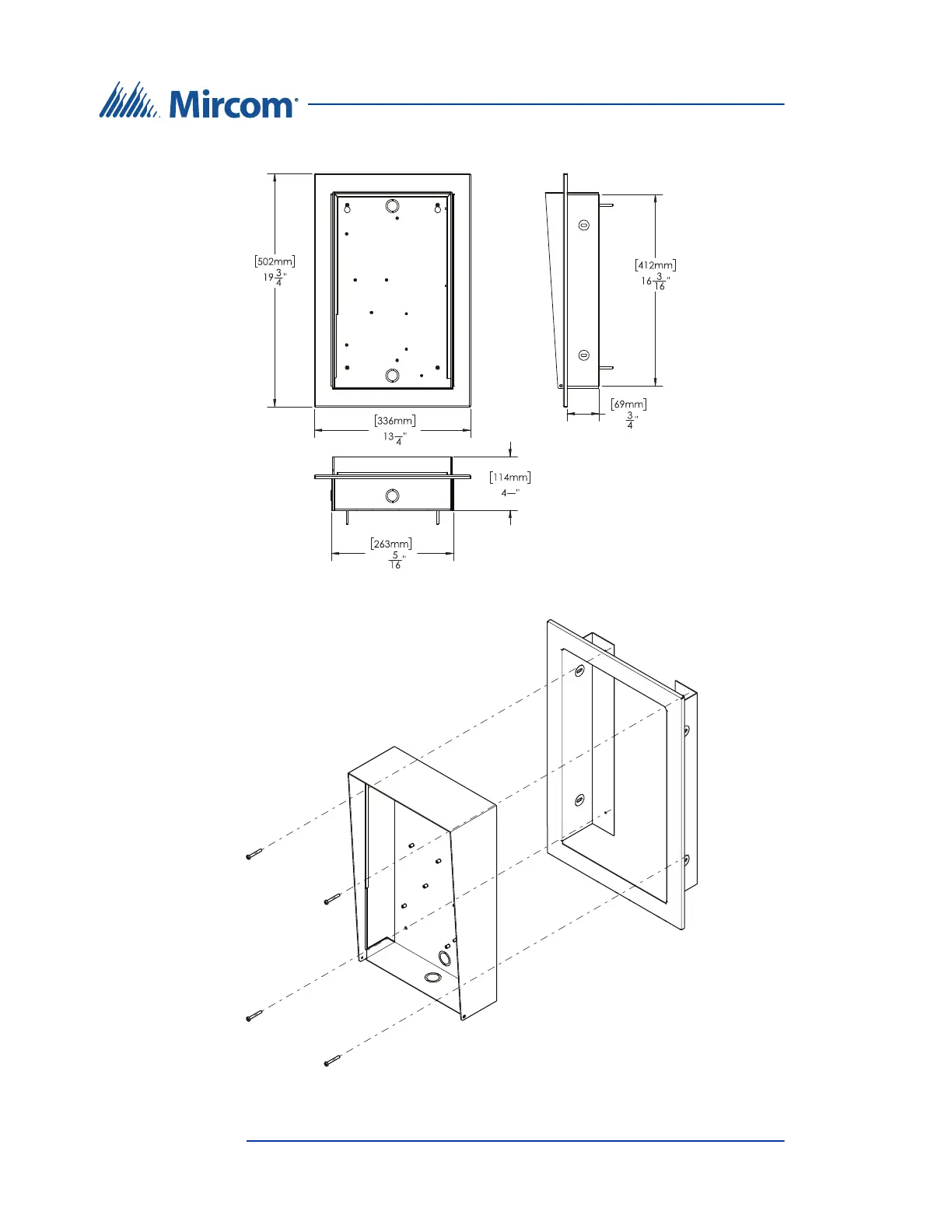

Figure 2. Dimensions of TX3-UFT and the Universal enclosure
Figure 3. Mounting TX3-UFT Universal Series Flush Trim Ring
1
2
10
1
2
Cutout in wall should be:
17” (432 mm) H
10 5/8” (269 mm) W
3” (76 mm) D
Universal
Enclosure
TX3-UFT
Semi-Flush Trim
