4.1 Controller Board

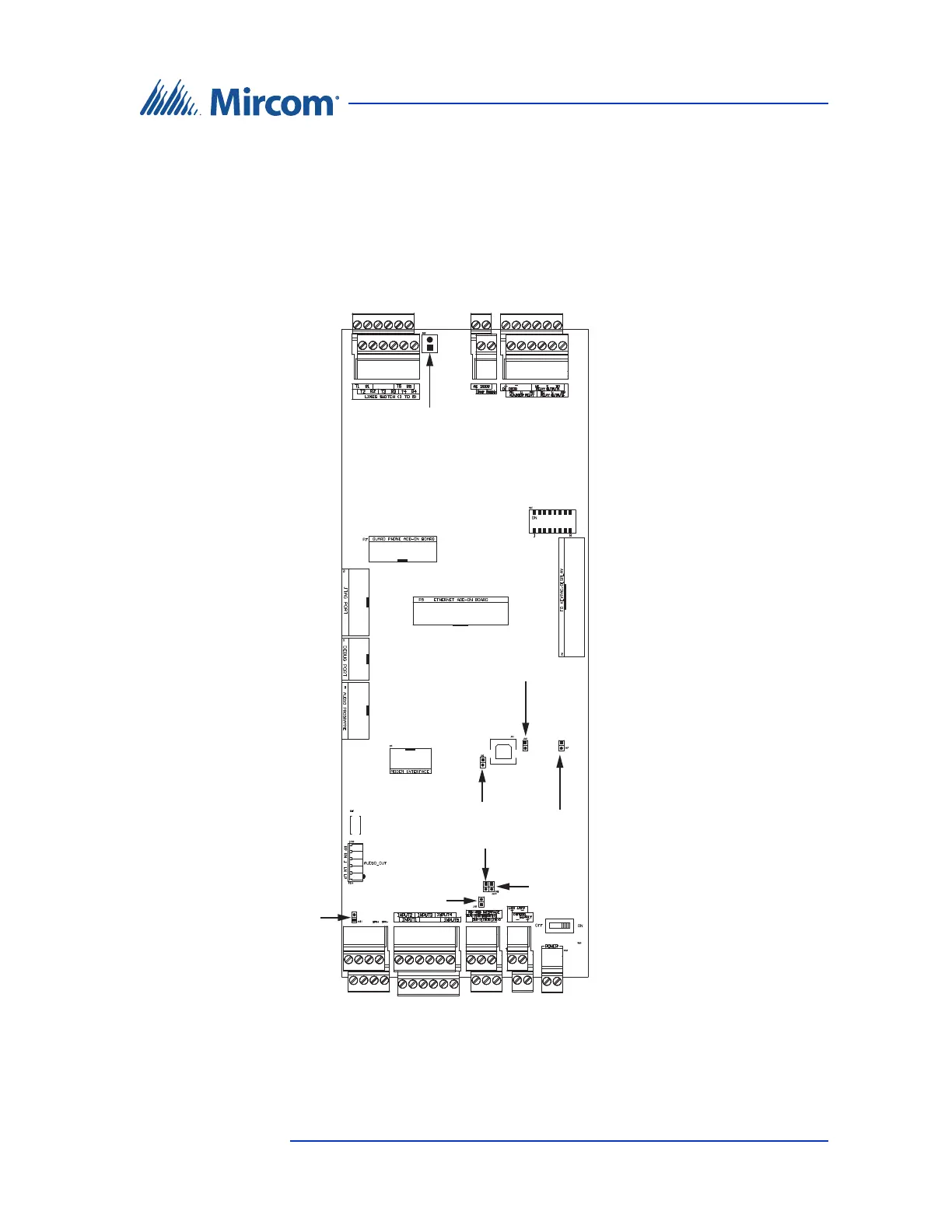

Figure 20 shows the general layout of the Lobby Control Unit main controller
board. See section 4.2 on page 41 and section 4.3 on page 46 for a detailed
description of the connectors at the bottom and top of the controller board.
Figure 20. Lobby Control Unit Main Controller Board
Telephone
lines 1 to 5
Door Supply, Door
Relay, and 2 General
Purpose Relays
JW8
P7: Guard Phone
connector
SW1: DIP
Switches
P5: IP Module
connector
USB Port
P4: Modem
Module
connector
JW7
JW1
JW2
JW5
JW10
JW9
JW11
P6: To Keypad/
Display
SW1:
Power
P3
P1
P8
TS14
JP2
JP1
Speaker and
microphone
Lamp supply,
camera supply,
power supply
Inputs 1-5 RS-485
