Enclosure Installation

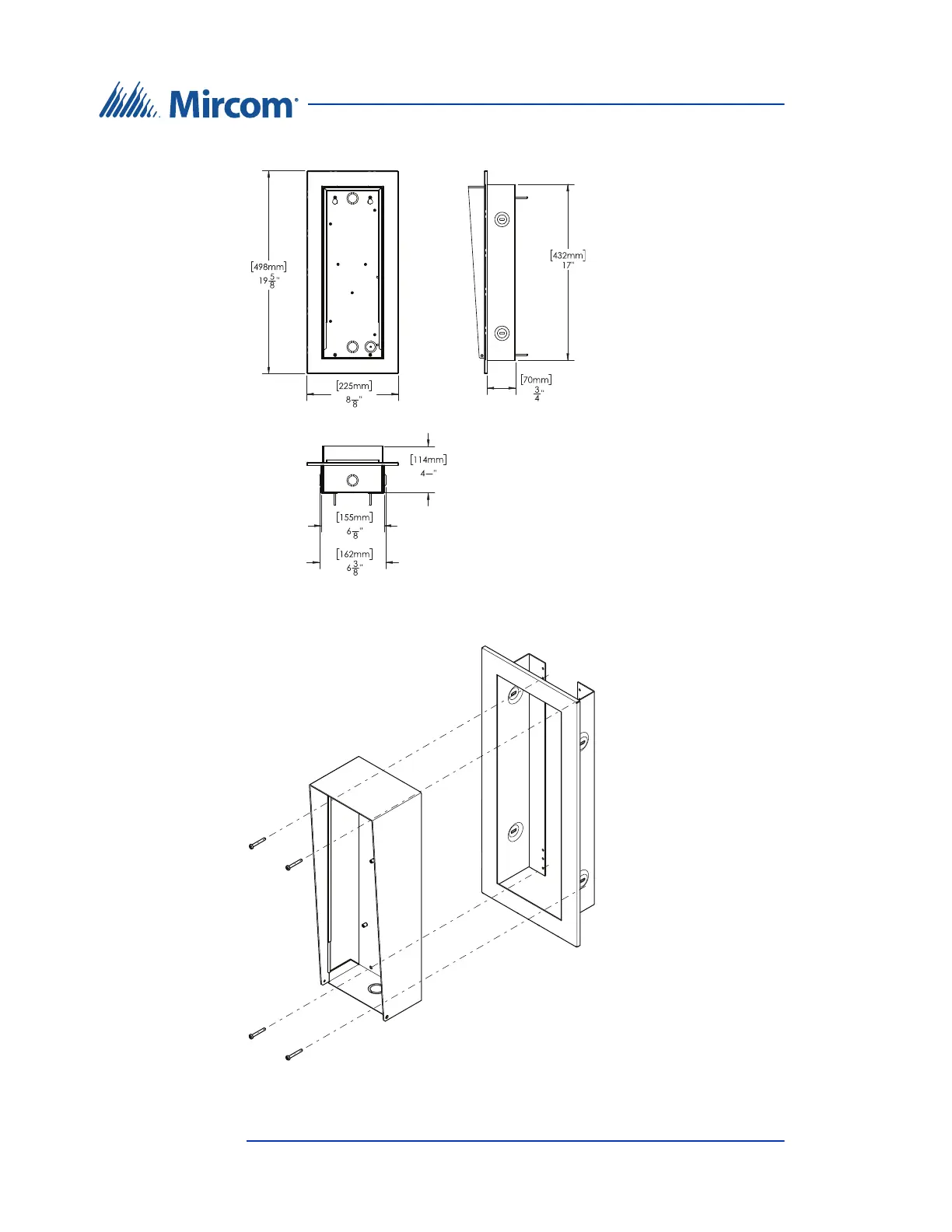

Figure 5. Dimensions of TX3-USFT and the Universal Slim-line
enclosure
Figure 6. Mounting TX3-USFT Slim Line Universal Flush Trim Ring
7
2
1
2
1
Universal Slim-line
enclosure
TX3-USFT Slim-line
semi-ush trim
Cutout in wall should be:
17 1/4” (438 mm) H
6 1/2” (165 mm) W
3” (76 mm) D
