26 TX3 Telephone Access System Installation and Operation Manual
Enclosure Installation

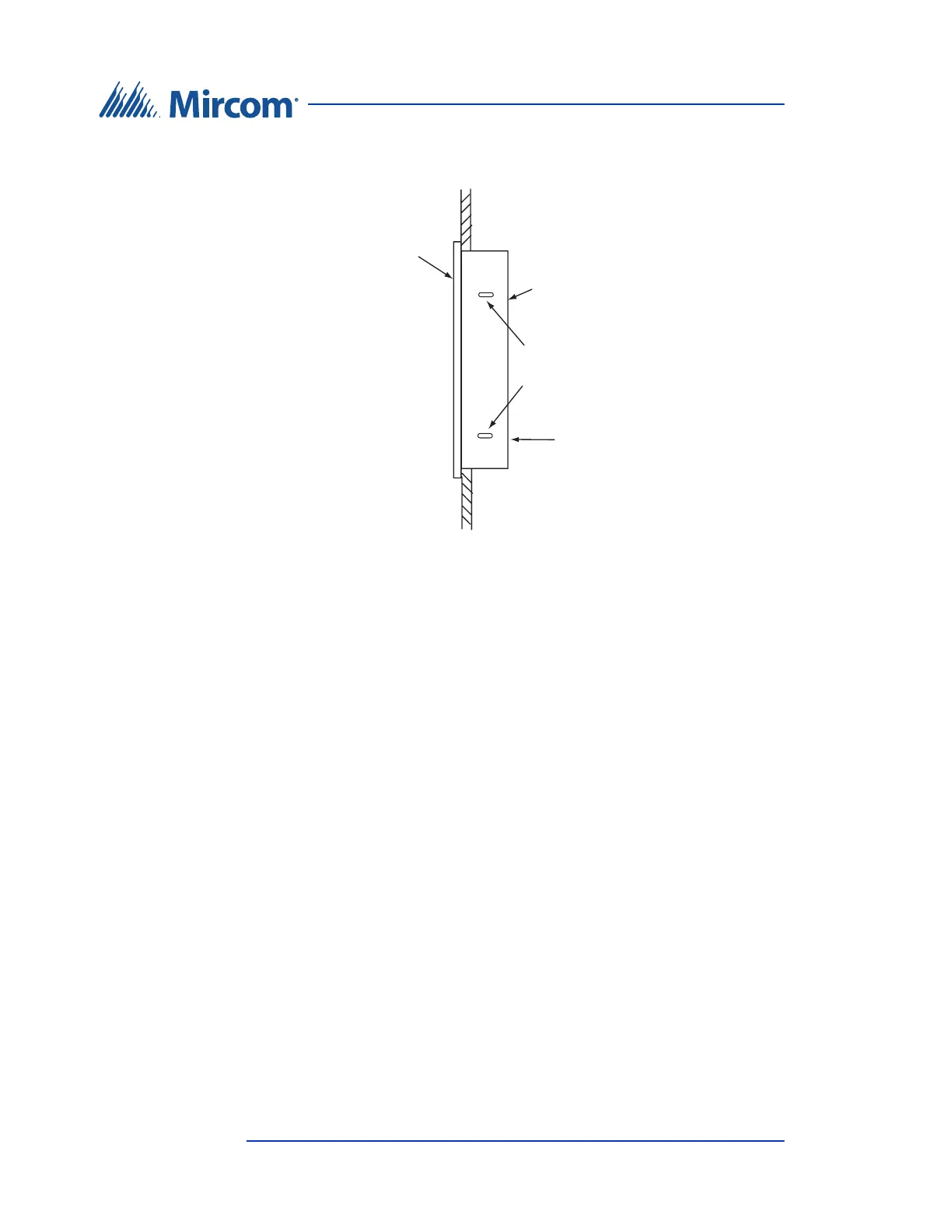

Figure 8. Mounting the Continental enclosure
To install the Continental enclosure
1. Find a suitable location for the Continental enclosure beside a wall stud.
2. Using the enclosure as a template, trace an opening in the wall for the cut
out with one side aligned with the side of the wall stud.
3. Cut an opening in the wall ensuring that one side is aligned with the wall
stud.
4. Insert the enclosure into the wall cutout and using the enclosure as a
template mark the top mounting hole location as shown in the side view in
figure 8. Ensure that at least one side is beside a wall stud.
5. Remove the enclosure and place the screw halfway into the wall into the
marked hole location using the supplied screw.
6. Place the enclosure onto the top screw.
7. Screw the lower two screw at the bottom of the trim ring halfway into the
wall.
8. Tighten the two screws into place.
Use
the two side
s
lots for mounting
the b
ox to the
w
all stud
WALL
FRONT
OUTSIDE
FRAME
SIDE VIEW
BACKBOX
MOUNTING
KNOCKOUTS
TOP
The Continental enclosure back box must
be
ush mounted with wall
GROUND
SCREW
LOCATION
Cutout in wall should be:
16 7/8” (429 mm) H
10 3/8” (264 mm) W
3” (76 mm) D
