3.4 Three Lobby Control Unit Configuration
Figure 14 shows a configuration with many Lobby Control Units connected to
many phone lines using combined ADC and NSL connection types. Line 1 and
Line 2 connect to NSL Control Units while Line 3 connects to a dedicated phone
line.
Lobby Control Units 1, 2 and 3 can make simultaneous calls as long as a line is
not in use by another Lobby Control Unit. For example, if Lobby Control Unit 1
uses line1, Lobby Control Unit 2 can use Line 2 and Lobby Control Unit 3 can
use line 3.
When Lobby Control Unit 1 is using line 1 and Lobby Control Unit 2 also wants
to use line1, which is busy, then a line busy message displays on Lobby Control
Unit 2.

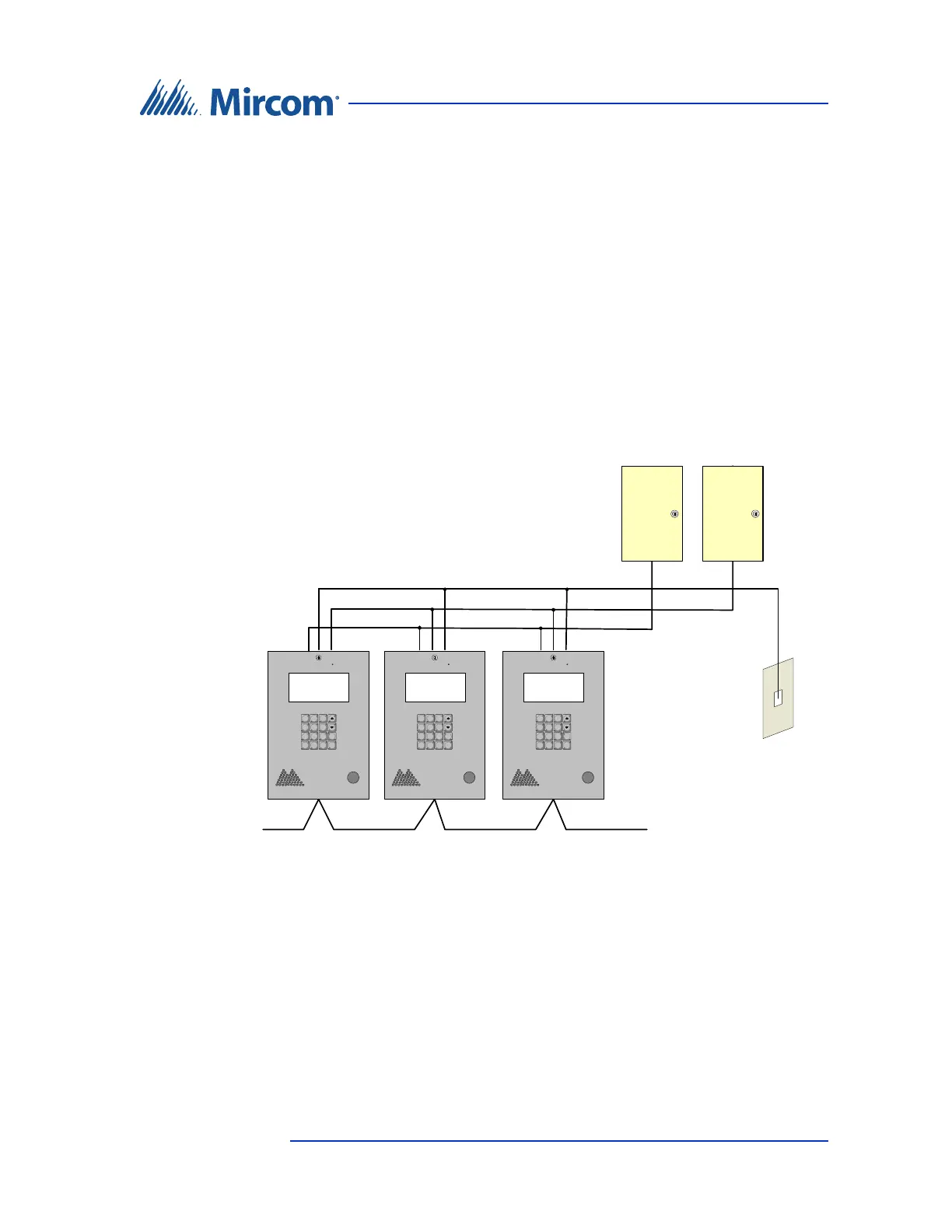

Figure 14. Multiple Lobby Control Units to Multiple Lines
