3300 ICP Technician’s Handbook
Configuration C: CXi/CXi II Typical Voice and Data
Network

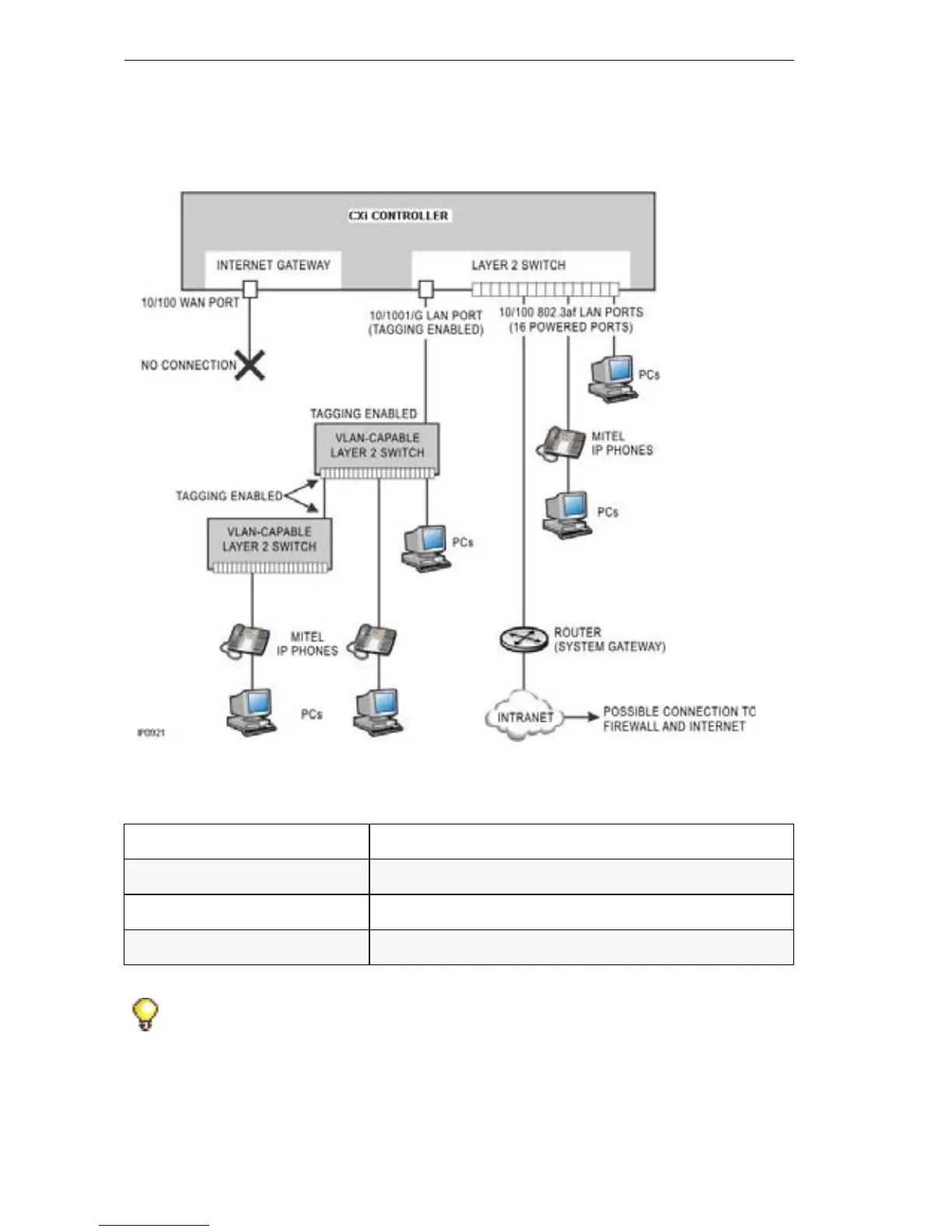

Figure 125: CXi/CXi II Voice and Data Configuration Example
IP Address 192.168.1.2
Subnet 255.255.255.0
Gateway (Router) 192.168.1.1
Layer 2 192.168.1.3
Tip: If an IP Address is on the IP Network List in the IP Routing form,
the connection will be routed to 192.168.1.1 (router).
If the IP Address is not on the IP Network List, then the connection
will be routed to the WAN Port automatically.
