Controller LEDs

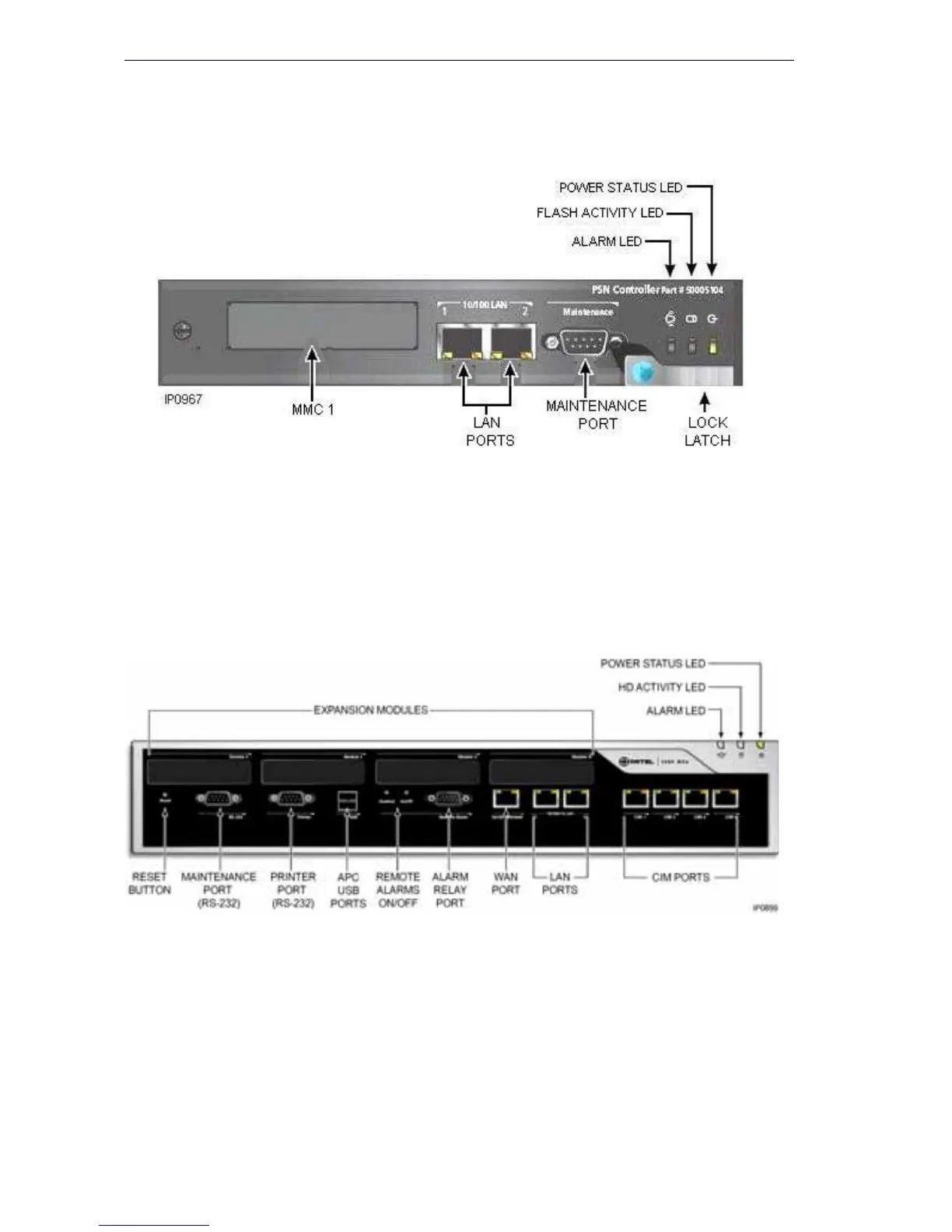

Figure 138: AX Controller Card LEDs
Power LED (page 336) T1/E1 Combo (page 346)
Flash Activity LED (page 336) Dual T1/E1 Framer (page 345)
Alarm LED (page 336) Quad BRI Framer (page 347)
CIM LEDs (page 342) Ethernet LEDs (page 341)
Figure 139: MXe/MXe Server – Front Panel
Power LED (page 336)
CIM LEDs (page 342)
Hard Drive LED
(page 336)
T1/E1 Combo Card (page 347)
FIM LEDs (page 340) Dual T1/E1 Framer (page 345)
Ethernet WAN/LEDs (page 341) Quad BRI Framer (page 347)
Alarm LED (page 336) Remote Alarms On/Off (page 344)
