3.4.2 Transport control units CR3D and drive units DU3
To transport using a crane, fix the hook of the crane into the eyes of the control unit or the drive unit.
You can now transport the control unit or the drive unit.
E
ATTENTION:
Either use a dolly or a crane to transport the control unit or the drive unit. Two persons are
always required to transport the control unit or the drive unit.
R001451E

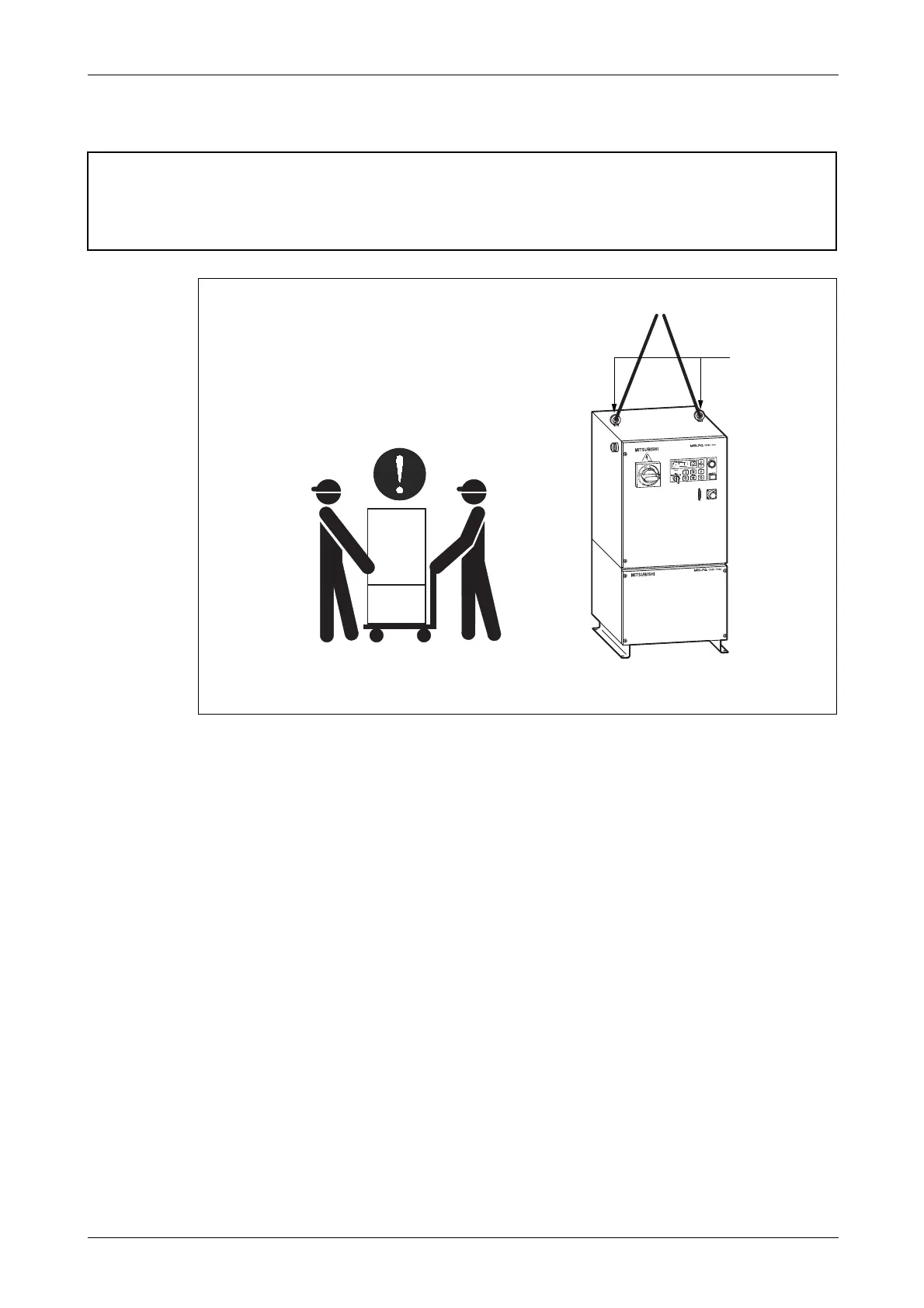

Fig. 3-10: Transport control units CR3D and drive units DU3
Transport with a dolly
Lifting eyes
Transport with a crane
