Appendix 1-2

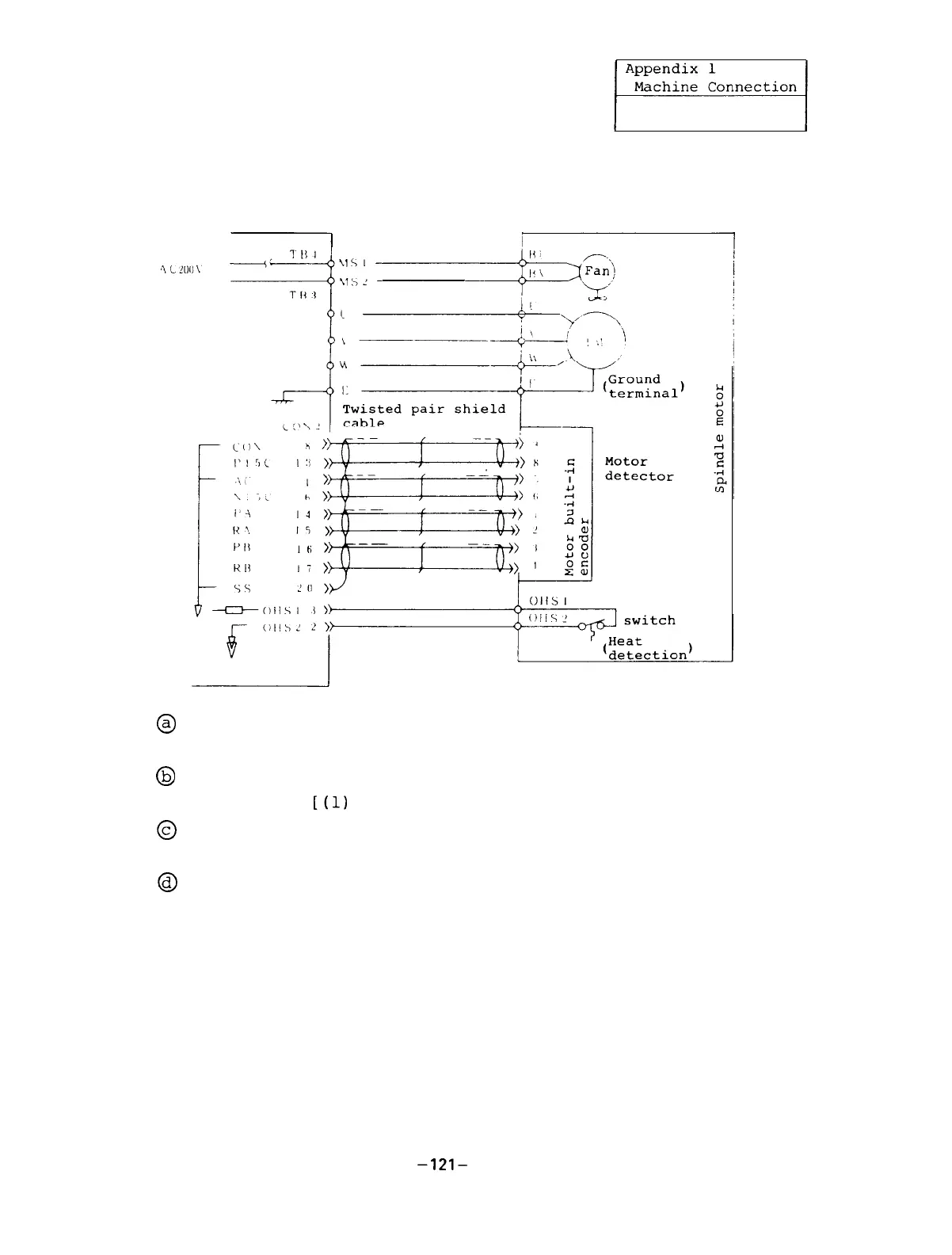

Connection with motor (for standard motor)

Temperature

The motor cooling fan rotates while the machine ready

signal is turned on.

For the main circuit cable size for the motor, see

Appendix 3

[(l)

Main circuit cables].

The cable for the motor detector should be a twisted

pair shield cable whose length is 20 m or less.

Ground a cable which connects the motor ground and

controller ground.

-121-
