2.8 Replacing motor cooling

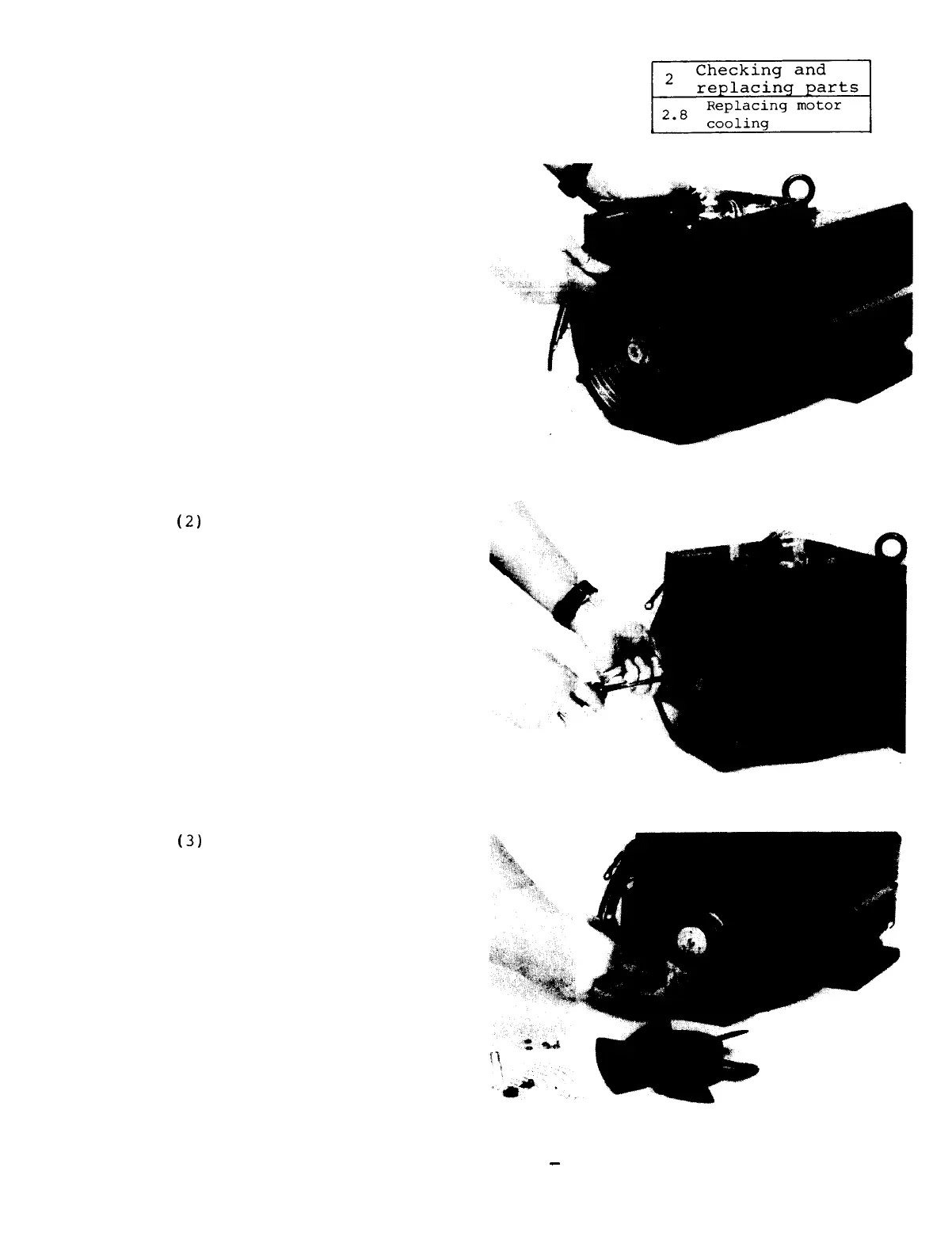

(a) In the case of 132
frames or less
(1) Remove the hex socket
bolts which fasten the
finger guard.
(2)
(3)
Remove the P flat head
screw which is located
at the center of the
cooling fan and only
the fan can be dis-
mounted.
Cut the four leads of
the cooling fan which
are connected in the
terminal box.
Remove
the P flat head screw
which fastens the fan
motor main body and
the fan motor main
unit can be dis-
mounted from the fan
case.
-71 -
