Mitsubishi FREQROL-SF

To Next Page

To Previous Page

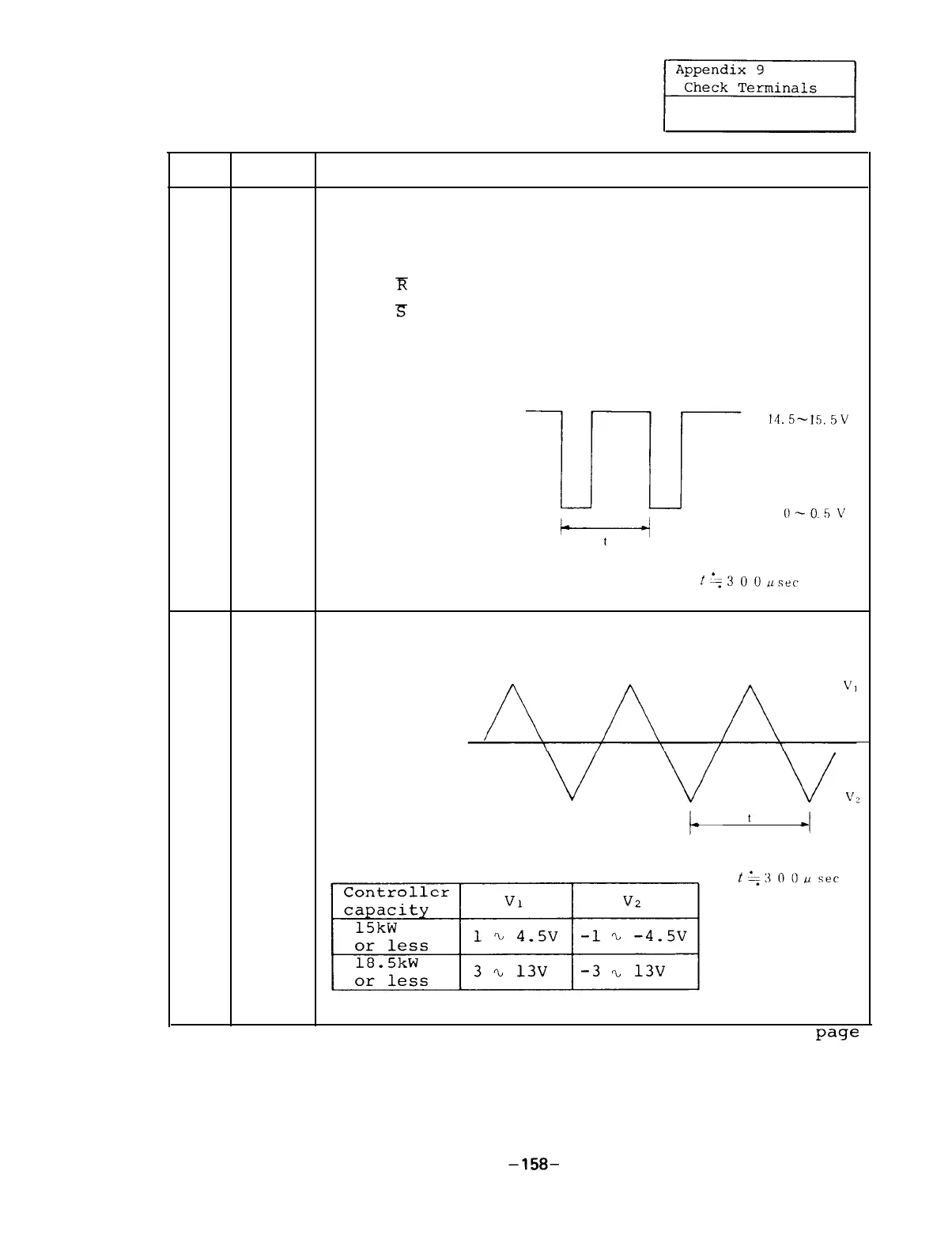

No.

Common

Signal,

description, waveform

CH27

AGA

Phase R base amplifier driving signal

CH28

AGA

Phase S base amplifier driving signal

CH29

AGA

Phase T base amplifier driving signal

CH30

AGA

Phase

base amplifier driving signal

CH31

AGA

Phase

base amplifier driving signal

CH32

AGA

Phase T base amplifier driving signal

Example of waveform)

Orientation stop state

CH24

AGA

Triangle wave carrier

Example of waveform)

Ready on state

Continued on the next

page

-158-
