7 ONLINE MODULE CHANGE

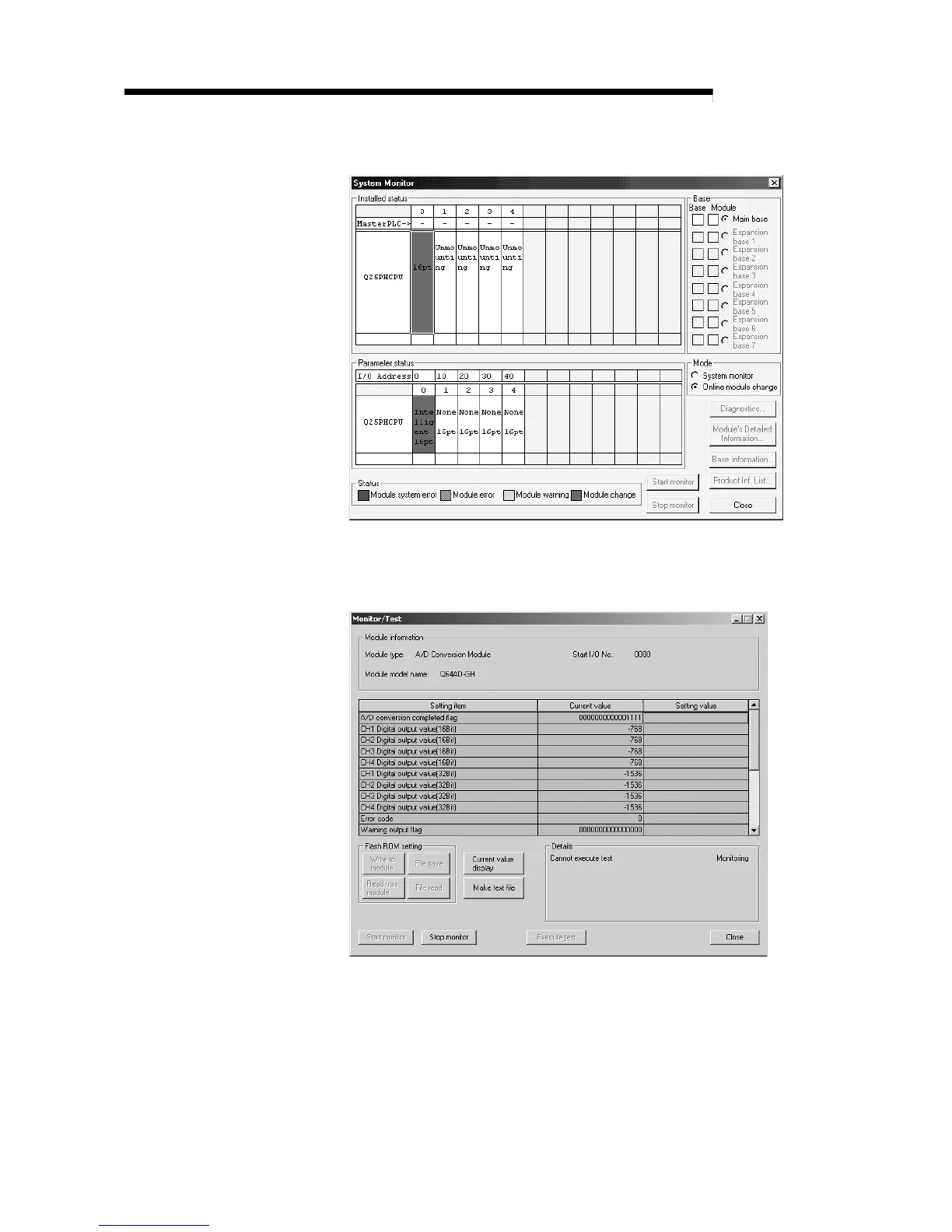

(c) Click the [Close] button to close the System monitor screen.
(d) Monitor the digital output values (buffer memory addresses 11 to 14, 54 to
62, Un\G11 to 14, Un\G54 to 62) to check whether proper conversion has
been made or not.
