Mitsubishi LANCER EVOLUTION-IV 1998

CIRCUIT DIAGRAM – Centralized Junction
C-19
CIRCUIT DIAGRAM
CENTRALIZED JUNCTION
CENTRALIZED RELAY
Connector No. Name Connector No. Name
A-82X Radiator fan motor relay (LO) A-113X Condenser fan motor relay (LO)
A-112X Radiator fan motor relay (HI) A-114X Condenser fan motor relay (HI)

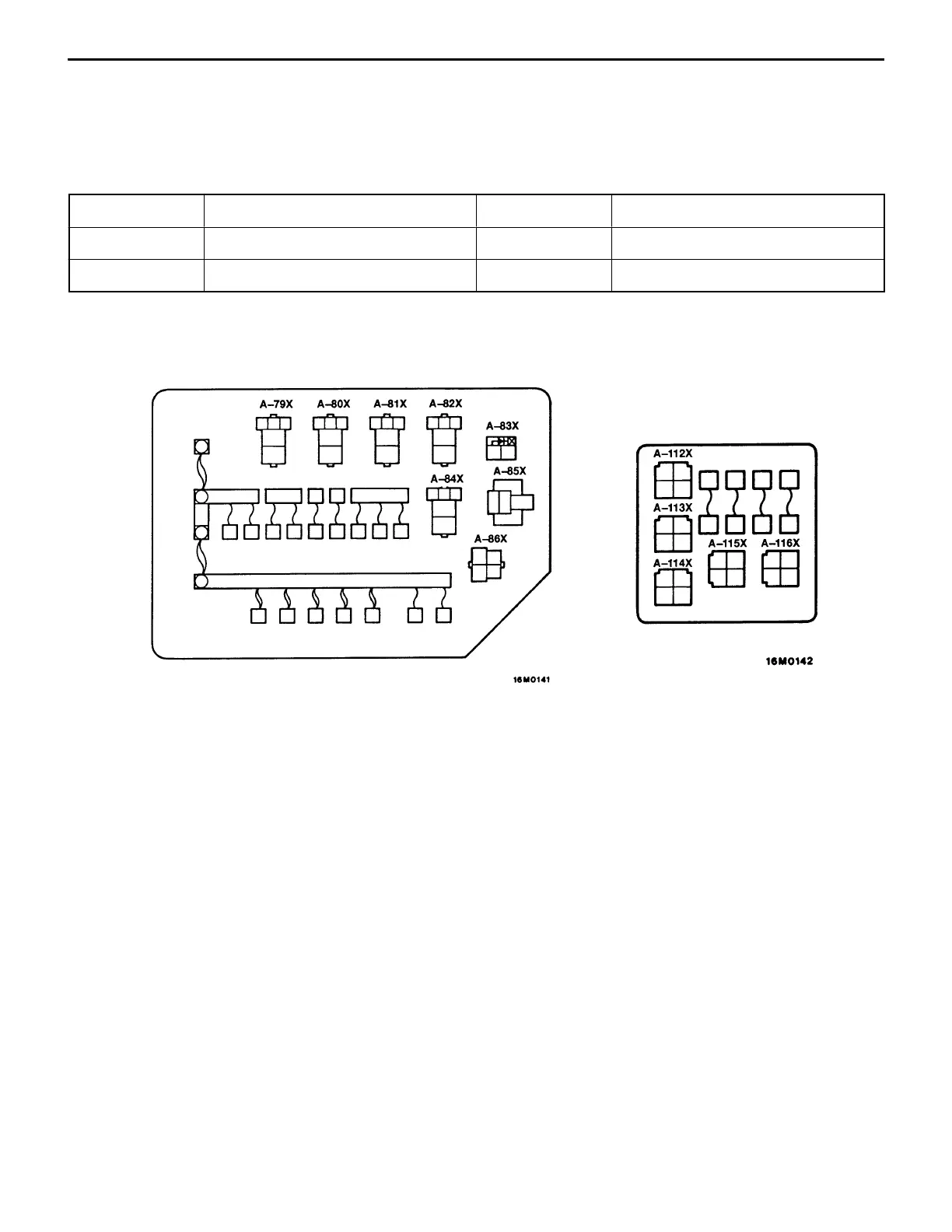

Relay box in engine compartment
(A/C relay box)
