ENGINE ELECTRICAL – Charging System
16-2
CHARGING SYSTEM

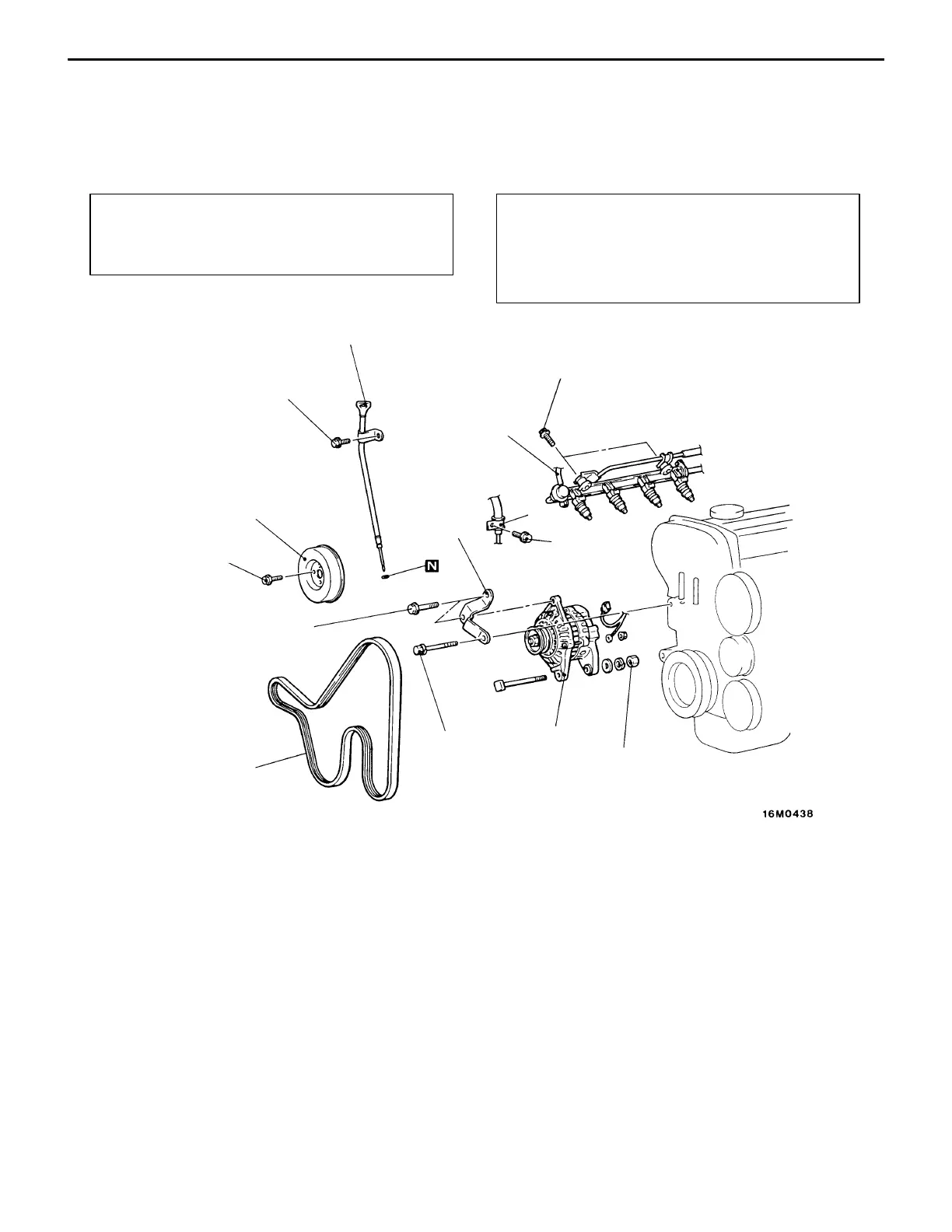

ALTERNATOR
REMOVAL AND INSTALLATION
Pre-removal Operation
(1) Under Cover Removal
(2) Engine Mount Removal
(3) Strut Tower Bar Removal
Post-installation Operation
(1) Strut Tower Bar Installation
(2) Engine Mount Installation
(3) Under Cover Installation
(4) Drive Belt Tension Adjustment
(Refer to GROUP 11 – On-vehicle Service.)
Unit: Nm {kgf@m}
44 {4.5}
7
3
2
6
1
5
4
24 {2.4}
22 {2.2}
9 {0.9}
12 – 15
{1.2 – 1.5}
10 – 13
{1.0 – 1.3}
12 {1.2}
Removal steps
AA" 1. Drive belt (Power steering, A/C)
AB" 2. Delivery pipe, injector and pressure
regulator assembly
3. Oil level gauge guide
4. Pressure hose connection
AC" 5. Alternator
6. Water pump pulley
7. Alternator brace
To Next Page
