MANUAL TRANSMISSION – Transmission Control
22A-4
TRANSMISSION CONTROL
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Air Cleaner Assembly Removal and Installation
Caution: SRS
Be careful not to subject the SRS-ECU to any shocks
during removal and installation of the shift cable
and select cable assembly.
4
5
6
7
8
9
10
11
12
13
14
1
2
3
8
Unit: Nm {kgf@m}
12 {1.2}
12 {1.2}

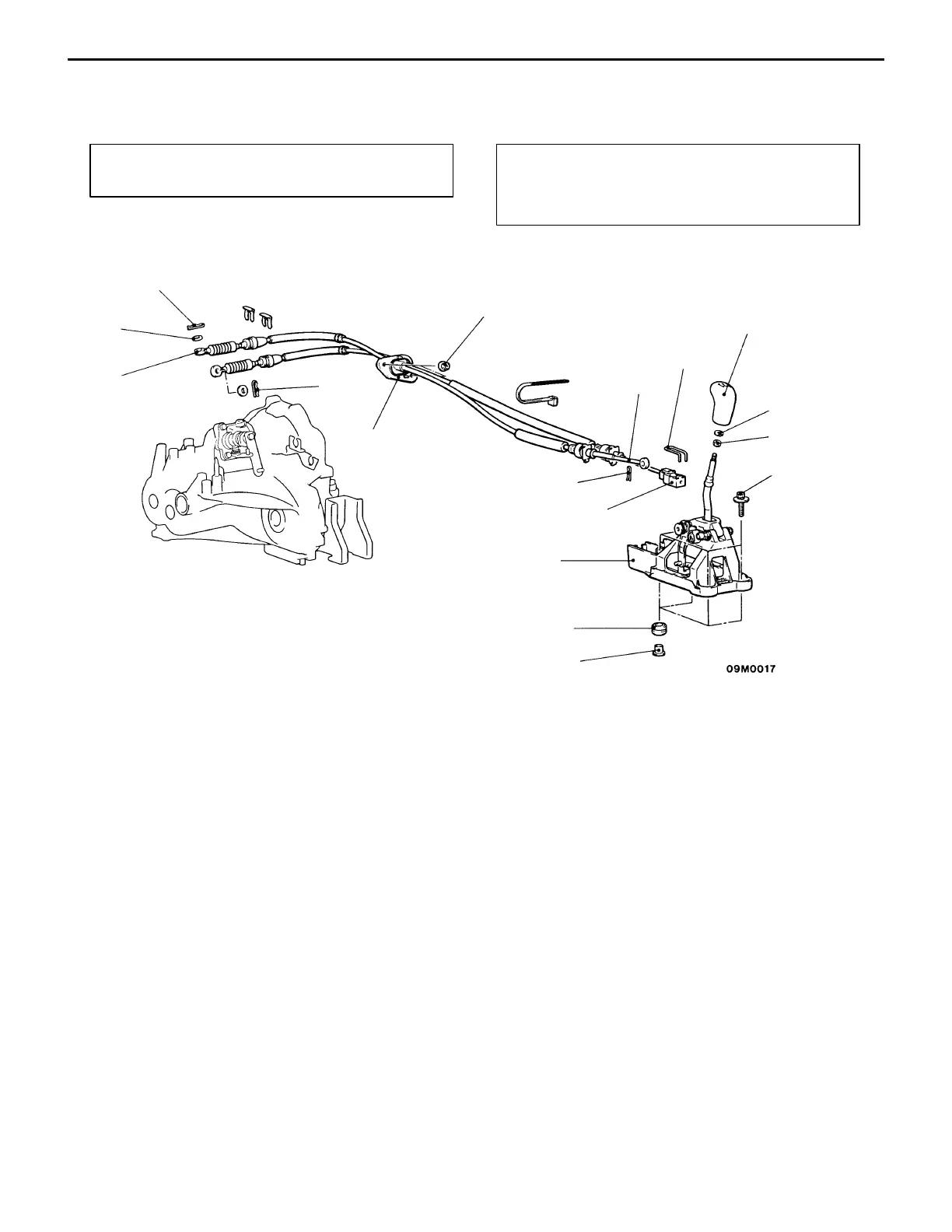

Shift cable and select cable
assembly removal steps
"BA 1. Shift knob
"BA 2. Spring washer
"BA 3. Nut
D Front floor console
(Refer to GROUP 52.)
4. Snap pin
5. Select cable connection
(Shift lever side)
6. Clip
7. Shift cable connection
(Shift lever side)
8. Snap pin
"AA 9. Select cable connection
(Transmission side)
"AA 10. Shift cable connection
(Transmission side)
"AA 11. Shift cable and select cable as-
sembly
Shift lever assembly removal steps
"BA 1. Shift knob
"BA 2. Spring washer
"BA 3. Nut
D Front floor console
(Refer to GROUP 52.)
4. Snap pin
5. Select cable connection
(Shift lever side)
6. Clip
7. Shift cable connection
(Shift lever side)
12. Shift lever assembly
13. Distance piece
14. Bushing
