EXTERIOR – Rear Fender Garnish <EVOLUTION-V>
51-11

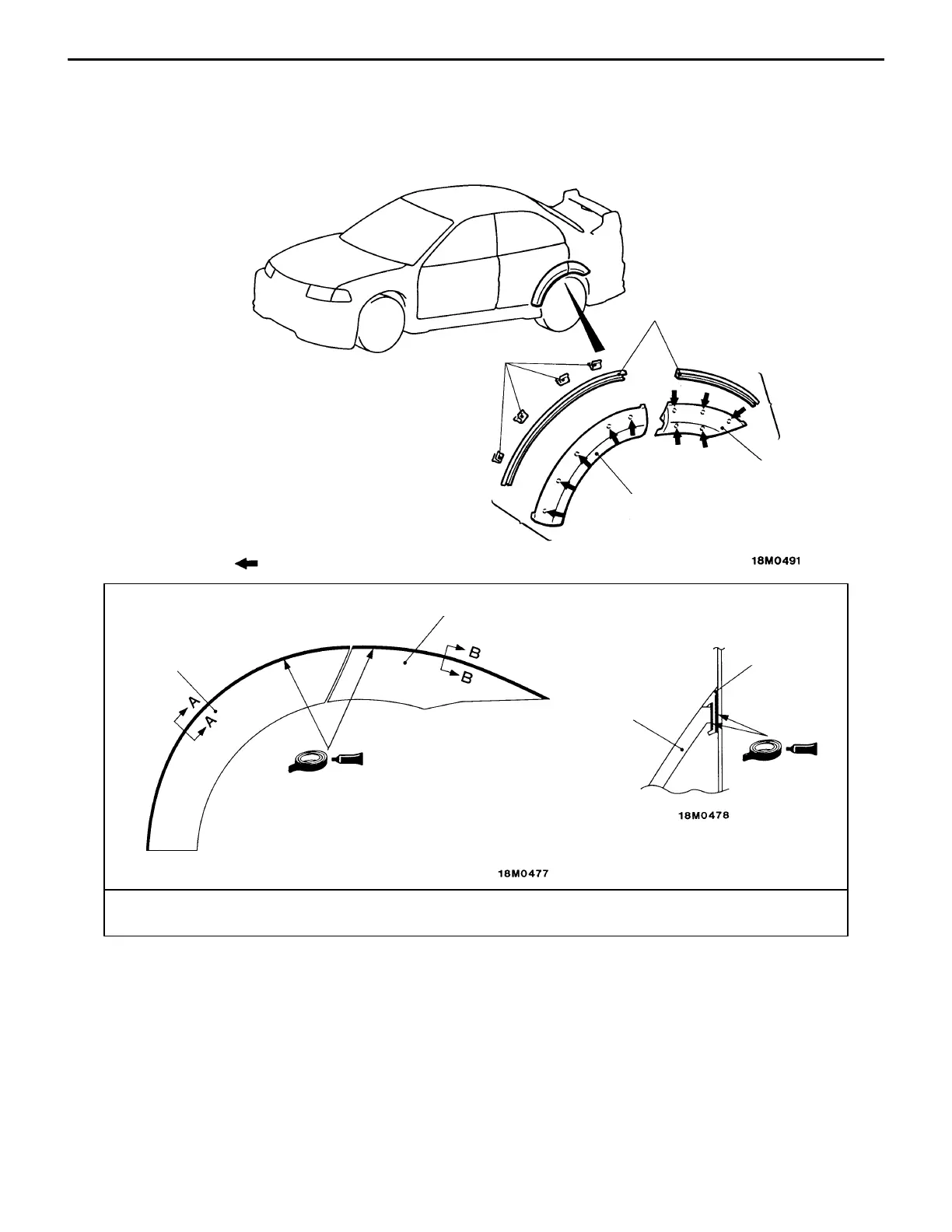

REAR FENDER GARNISH <EVOLUTION-V>
REMOVAL AND INSTALLATION
1
2
3
4
5
6
NOTE
The parts marked with are plastic clips.
Double-sided adhesive tape: SUMITOMO 3M 4213 or equivalent (thickness: 0.8 mm)
Primer: SUMITOMO 3M 8107 PP parts primer
Section A-A, B-B
6
4
4, 6
3
Rear door garnish removal steps
1. Clip
AA""AA 2. Rear door garnish assembly
3. Protector
4. Rear door garnish
Quarter garnish removal steps
AA""AA 5. Quarter garnish assembly
3. Protector
6. Quarter garnish
NOTE
The same service points as those for aero parts apply for
removal and installation.
