Mitsubishi LANCER EVOLUTION-IV 1998

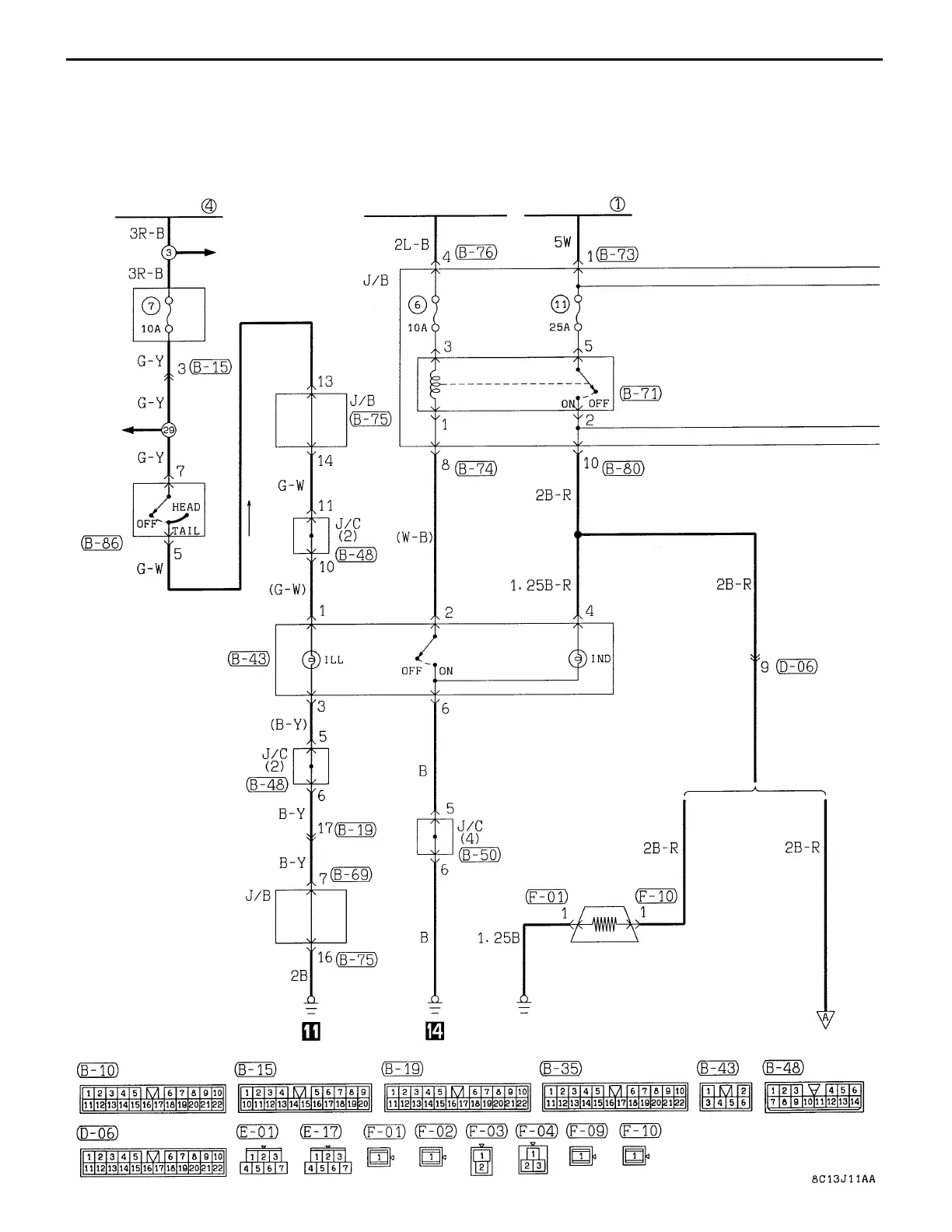

CIRCUIT DIAGRAM –
Defogger and Door Mirror Heater <Vehicles
without Fully Automatic Air Conditioner>
FUSIBLE LINK
• CHARGING
SYSTEM
• POWER SUPPLY
• HEADLAMP
DEDI-
CATED
FUSE
FOG
LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
DEFOGGER
SWITCH
IGNITION SWITCH (IG2)
FUSIBLE LINK
DEFOGGER
RELAY
VEHICLES WITHOUT
GLASS ANTENNA
VEHICLES WITH
GLASS ANTENNA
DEFOGGER
C-64
DEFOGGER AND DOOR MIRROR HEATER
<VEHICLES WITHOUT FULLY AUTOMATIC AIR CONDITIONER>
