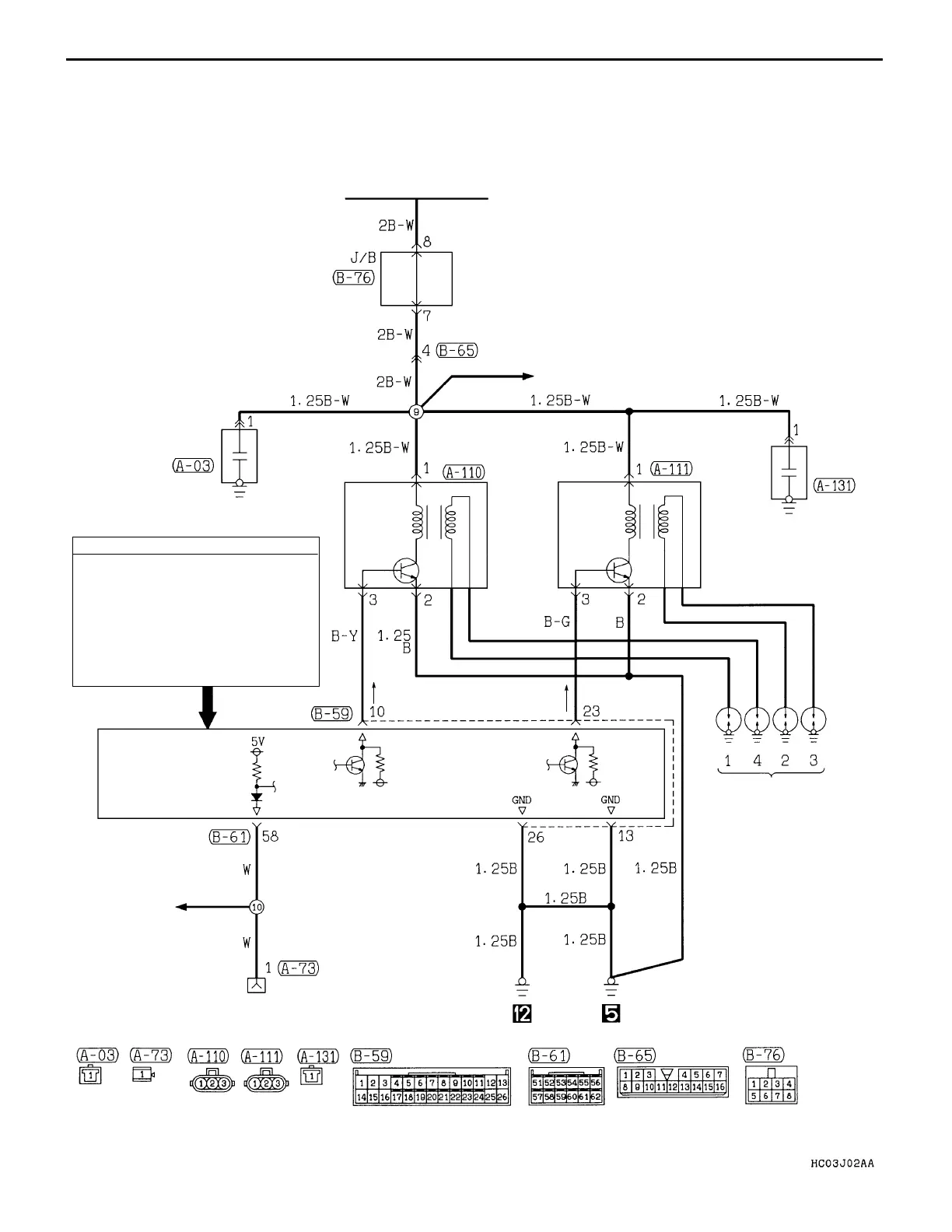

CIRCUIT DIAGRAM – Ignition System
IGNITION SWITCH (IG1)
NOISE
CONDENSER
ENGINE CONTROL
SYSTEM
IGNITION
COIL 1
IGNITION
COIL 2
NOISE
CON-
DENSER
INPUT SIGNAL
• IDLE SWITCH
• IGNITION SWITCH (ST)
• CAM POSITION SENSOR
• INTAKE AIR TEMPERATURE SENSOR
• CRANK ANGLE SENSOR
• VEHICLE SPEED SENSOR
• ENGINE COOLANT TEMPERATURE
SENSOR
• BAROMETRIC PRESSURE SENSOR
• KNOCK SENSOR
ENGINE-ECU
METER AND
GAUGE
ENGINE SPEED
DETECTION CONNECTOR
SPARK PLUG
B-32
IGNITION SYSTEM
