Mitsubishi LANCER EVOLUTION-IV 1998

INTAKE AND EXHAUST – Exhaust Manifold and Turbocharger
15-11

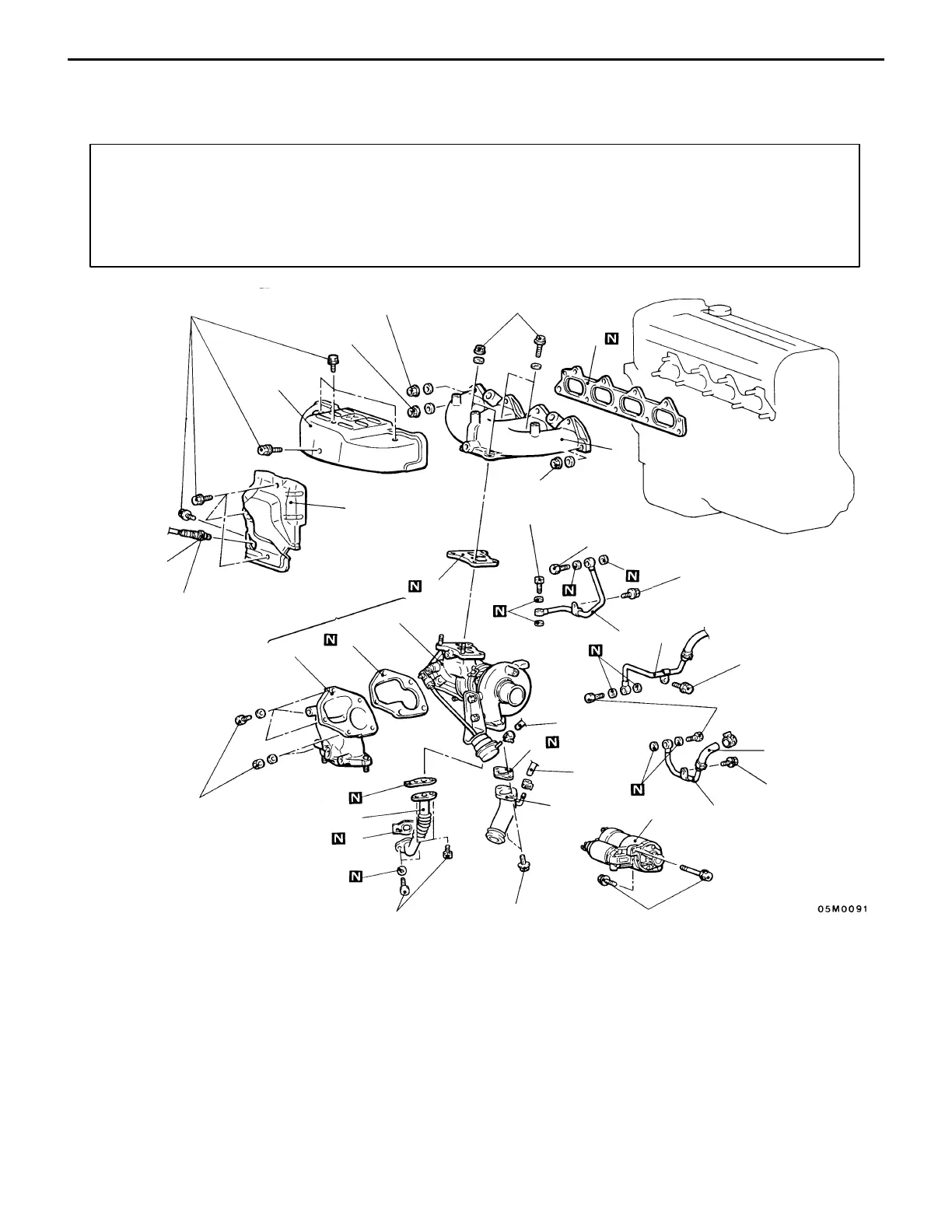

EXHAUST MANIFOLD AND TURBOCHARGER
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
(1) Radiator Removal and Installation
(Refer to GROUP 14.)
(2) Air Intake Hose and Air Hose A Removal and
Installation (Refer to P.15-7.)
(3) Front Exhaust Pipe Removal and Installation
(Refer to P.15-14.)
(4) Air Pipe Assembly Removal and Installation
(Refer to P.15-8.)
(5) Engine Oil Removal and Refilling
1
Unit: Nm {kgf@m}
49 {5.0}
54 – 64 {5.5 – 6.5}
9 {0.9}
12 – 15 {1.2 – 1.5}
2
3
4
29 {3.0}
20
49 – 59 {5.0 – 6.0}
54 – 64 {5.5 – 6.5}
30 {3.1}
17 – 20 {1.7 – 2.0}
10 {1.0}
42 {4.2}
10 {1.0}
10 – 12 {1.0 – 1.2}
17 {1.7}
49 {5.0}
27 – 32 {2.7 – 3.3}
19
6
10
12
10
11
187
8
9
17
16
15
14
13
5
Removal steps
1. Exhaust manifold heat protector
AA" 2. Oxygen sensor
3. Turbocharger heat protector
4. Water pipe assembly A connection
5. Water hose connection
AB" 6. Oil pipe
7. Starter
8. Oil return pipe
"CA 9. Oil return pipe gasket
10. Vacuum hose connection
11. Air outlet fitting
"BA 12. Air outlet fitting gasket
13. Turbocharger gasket
14. Turbocharger assembly
"AA 15. Turbocharger
16. Exhaust fitting gasket
17. Exhaust fitting
18. Water pipe hose assembly
19. Exhaust manifold
20. Exhaust manifold gasket
