STEERING – Power Steering Oil Pump
37A-7
POWER STEERING OIL PUMP
<EVOLUTION-IV>
REMOVAL AND INSTALLATION
Pre-removal Operation
D Power Steering Fluid Draining
Post-installation Operation
(1) Power Steering Fluid Supplying
(2) Drive Belt Tension Adjusting
(Refer to GROUP 11 – On-vehicle Service.)
1
2
3
4
5
6
7
8
9
10
Unit: Nm {kgf@m}
49 {5.0}
59 – 69
{6.0 – 7.0}
10 – 12
{1.0 – 1.2}
39 {4.0}
49 {5.0}
18 {1.8}
12 {1.2}
39 {4.0}

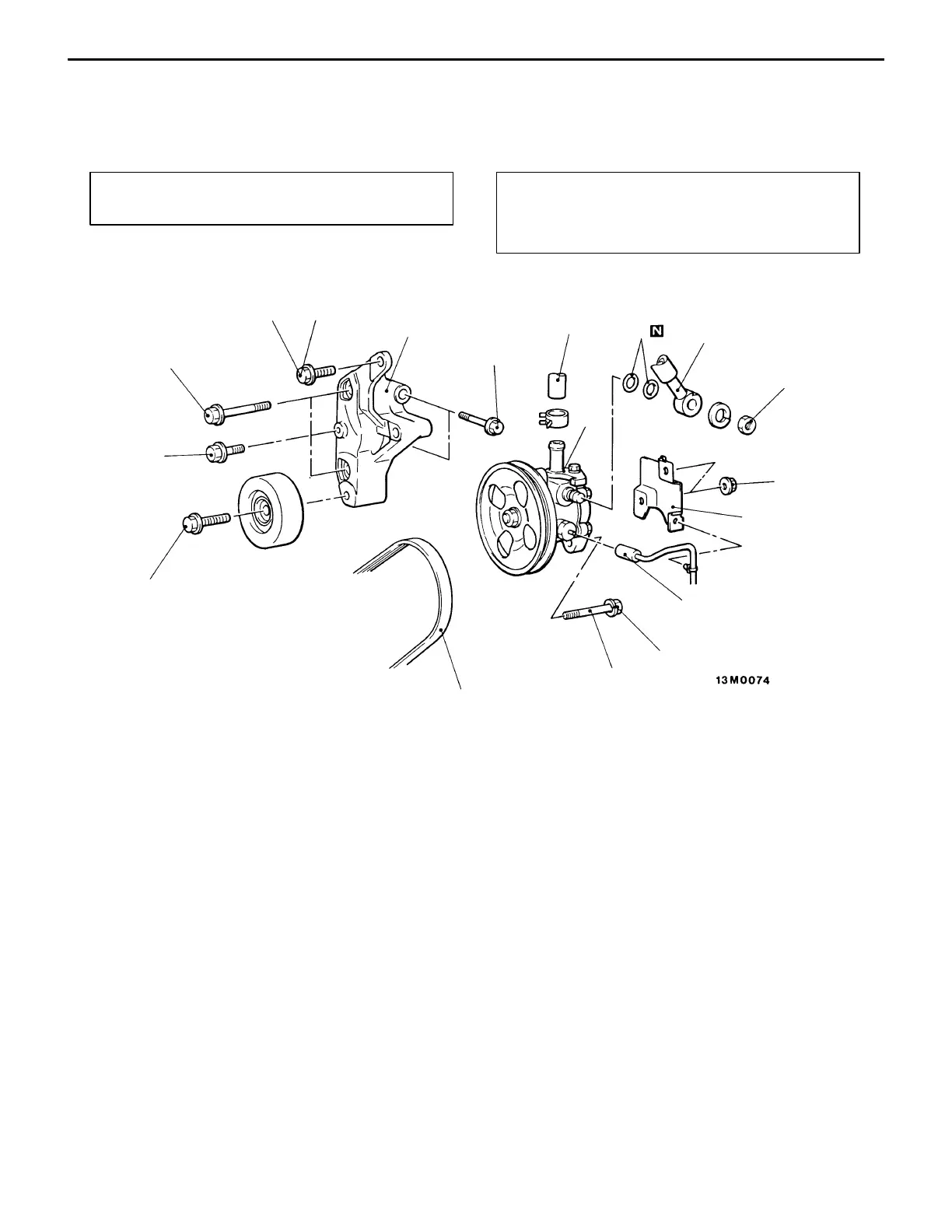

Removal steps
1. Drive belt
2. Pressure switch connector
3. Suction hose
4. Pressure hose
5. O-ring
6. Heat protector
7. Bolt
8. Bolt
9. Oil pump assembly
10. Oil pump bracket
To Next Page
