CLUTCH – Clutch Control
21-5

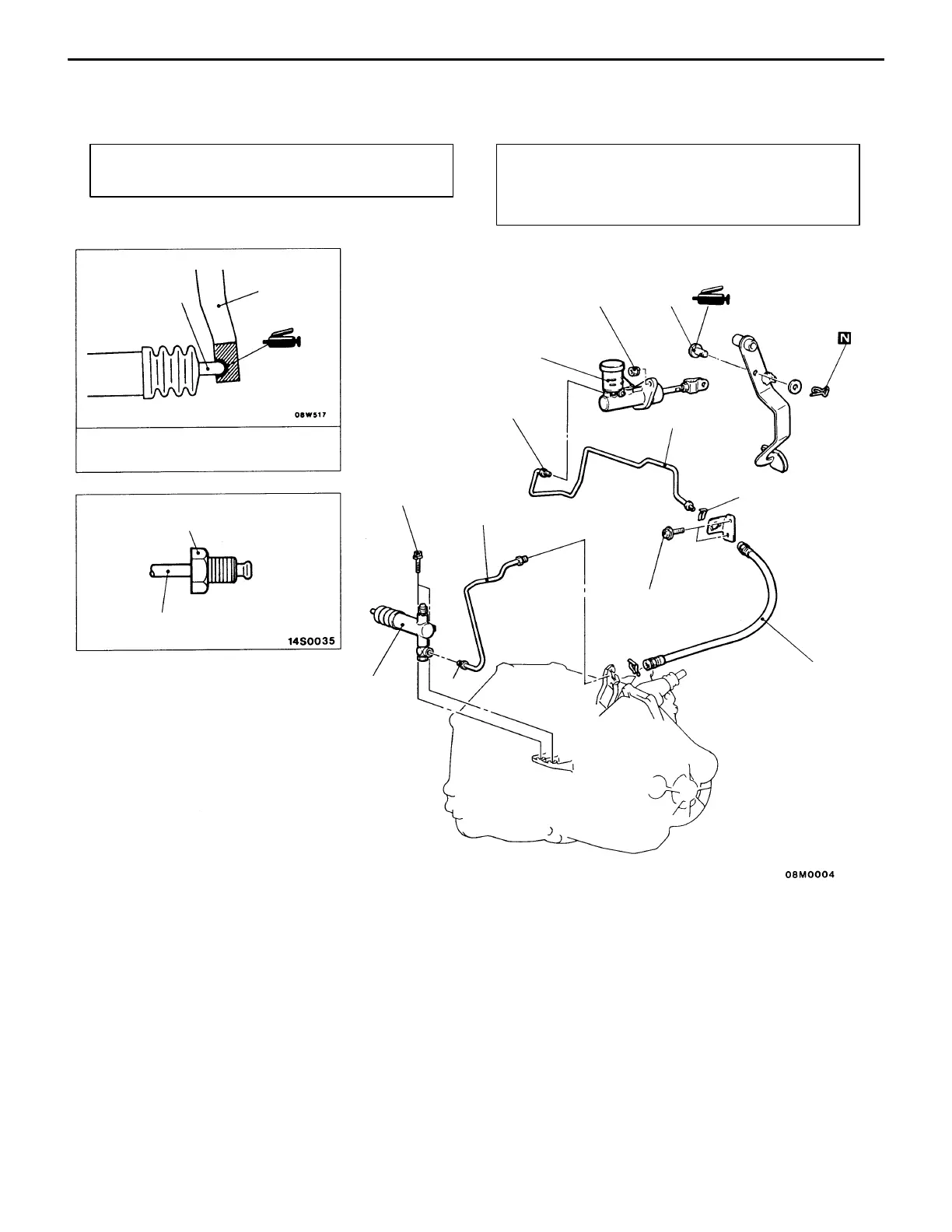

CLUTCH CONTROL
REMOVAL AND INSTALLATION
Pre-removal Operation
D Clutch Fluid Draining
Post-installation Operation
(1) Clutch Fluid Supplying
(2) Clutch Line Bleeding (Refer to P.21-3.)
(3) Clutch Pedal Adjustment (Refer to P.21-2.)
Specified grease:
MOLYKOT BR-2 PLUS
5
Unit: Nm {kgf@m}
13 {1.3}
6
6
4
6
7
8
2
3
1
5 {0.5}
15 {1.5}
19 {1.9}
Release
cylinder
push rod
Release
fork
Clutch master cylinder removal
steps
1. Clevis pin
2. Clutch pipe connection
3. Clutch master cylinder
Clutch release cylinder removal
steps
4. Clutch pipe connection
5. Clutch release cylinder
Clutch line removal steps
6. Clutch pipe
7. Hose clip
8. Clutch hose
To Next Page
