EXTERIOR – Mark <EVOLUTION-V>
51-15
MARK <EVOLUTION-V>

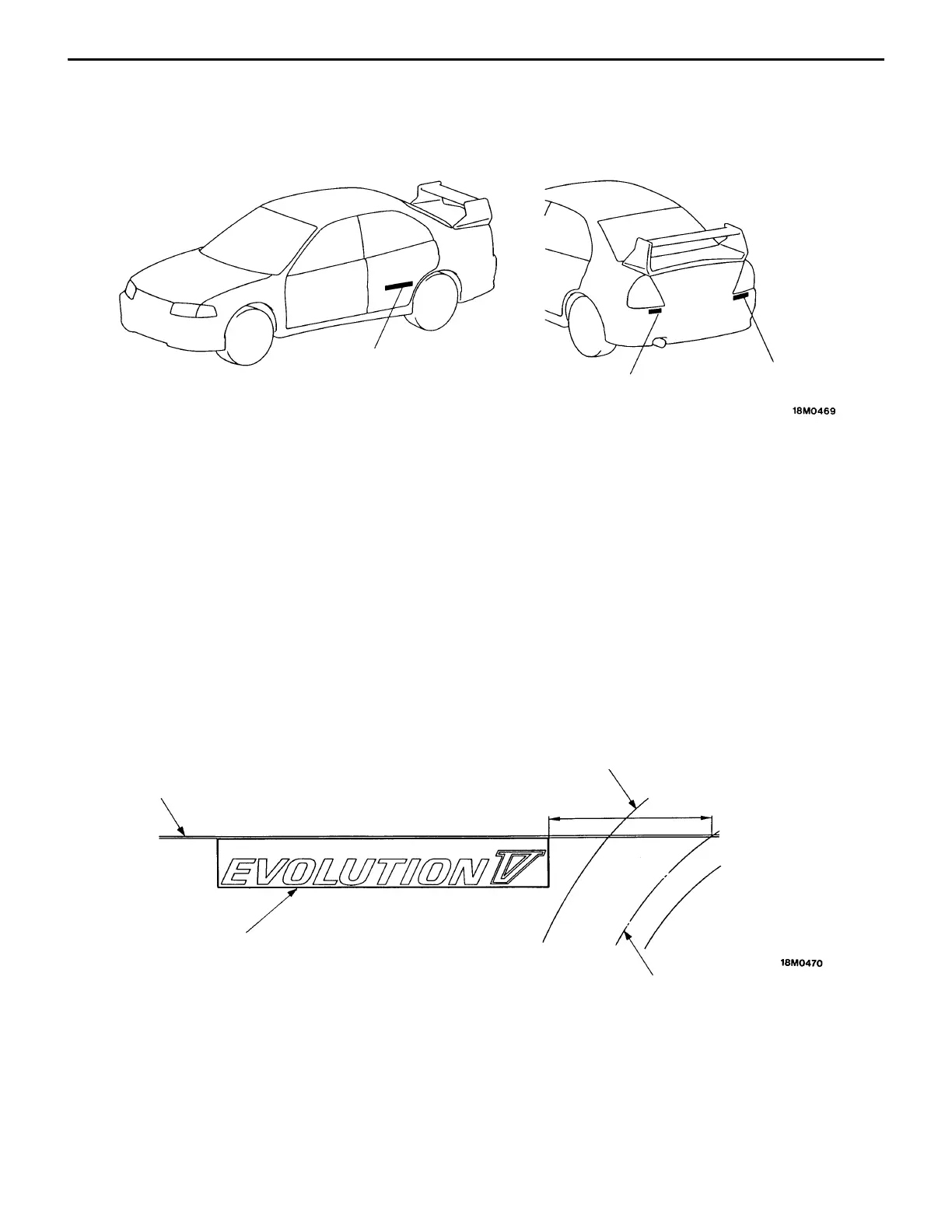

REMOVAL AND INSTALLATION
3
2
1
"AA 1. EVOLUTION-V mark (side)
"AA 2. brembo mark
"AA 3. EVOLUTION-V mark (rear)
NOTE
The mark “brembo” represents an Italian disc brake
maker, whose disc brakes are used both in front and rear
on EVOLUTION-V.
INSTALLATION SERVICE POINT
"AA MARK INSTALLATION
Installation positions
The dimension up to the cutout in decal (A in fig.) is the same as the dimension from the mounting
reference line (A’ in fig.). Use this dimension as a guideline to determine the mounting position. (A =
A’)
1. EVOLUTION-V MARK (SIDE)
Body press line
Application tape edge
Rear door garnish edge line
Rear door opening line
176 mm
