REAR SUSPENSION – Service Specifications / Lubricant / Special Tools
34-2

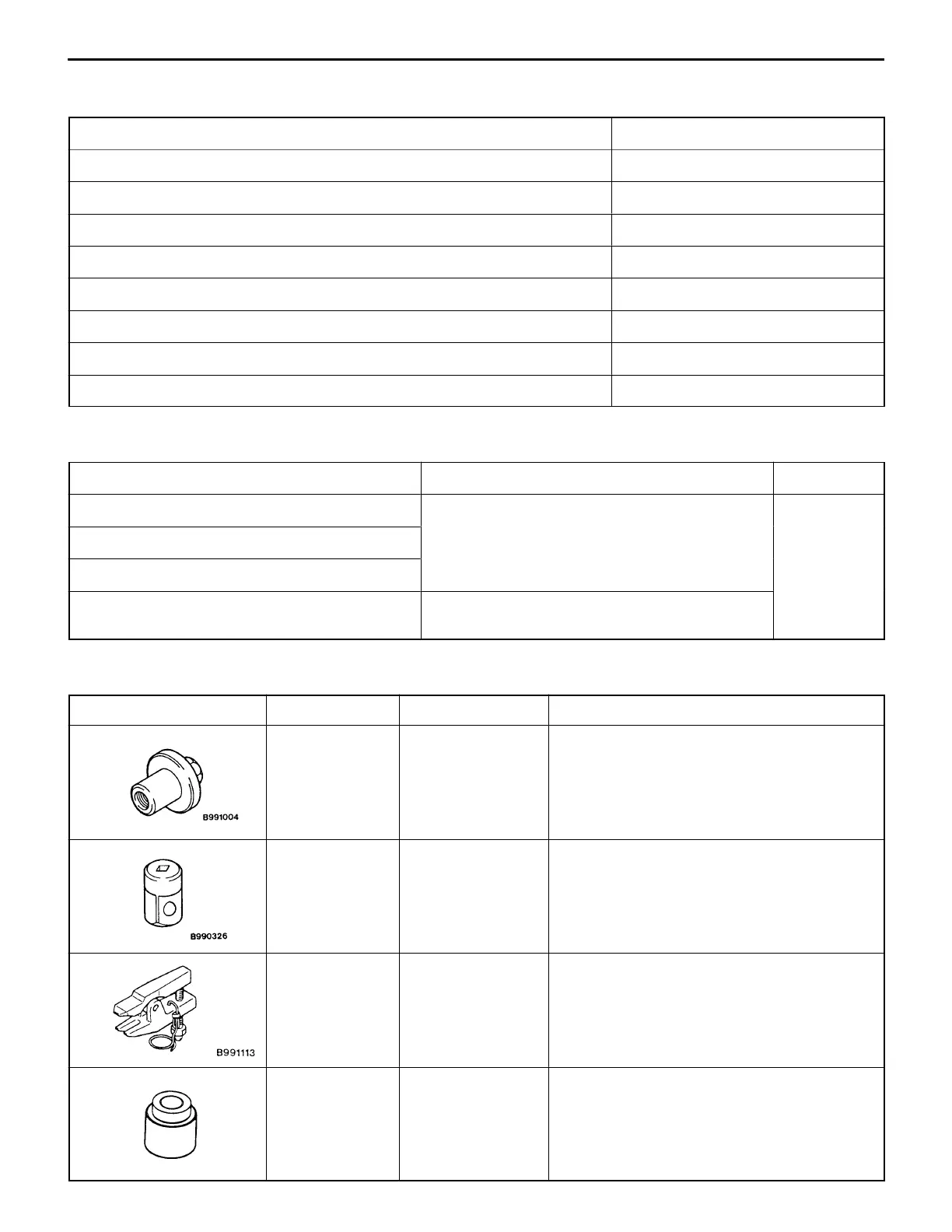

SERVICE SPECIFICATIONS
Items Standard value
Toe-in mm 3 ± 2
Camber –1_00 ± 30’
Rear thrust angle 0_00 ± 9’
Upper arm ball joint turning torque Nm {kgf@cm} 0.5 – 2.5 {5 – 25}
Trailing arm ball joint turning torque Nm {kgf@cm} 0.5 – 2.5 {5 – 25}
Toe control arm ball joint turning torque Nm {kgf@cm} 0.5 – 2.5 {5 – 25}
Toe control arm slide bushing operating torque Nm {kgf@cm} 0.2 – 1.5 {2 – 15}
Stabilizer link ball joint turning torque Nm {kgf@cm} 1.7 – 3.1 {17 – 32}
LUBRICANT
Items Specified lubricant Quantity
Inside and lips of upper arm ball joint dust cover Molybdenum disulfide-base chassis grease:
SHOWA SHELL SEKIYU SUNLITE MB2
As required
Inside and lips of trailing arm ball joint dust cover
,
NISSEKI CLAKNOCK FL, or equivalent
Inside and lips of control arm ball joint dust cover
Inside and lips of stabilizer link ball joint dust cover SHOWA SHELL SEKIYU VARIANT R-2 or
equivalent
SPECIAL TOOLS
Tool Number Name Use
MB991004 Wheel alignment
gauge attachment
Measurement of wheel alignment <vehicles
with aluminum wheels>
MB990326 Preload socket Measurement of ball joint turning torque
MB990635,
MB991113, or
MB991406
Steering linkage
puller
Disconnection of ball joint from knuckle
MB990800 Ball joint remover &
installer
Pressfitting of ball joint dust cover
