MANUAL TRANSMISSION – Transfer Assembly
22A-10

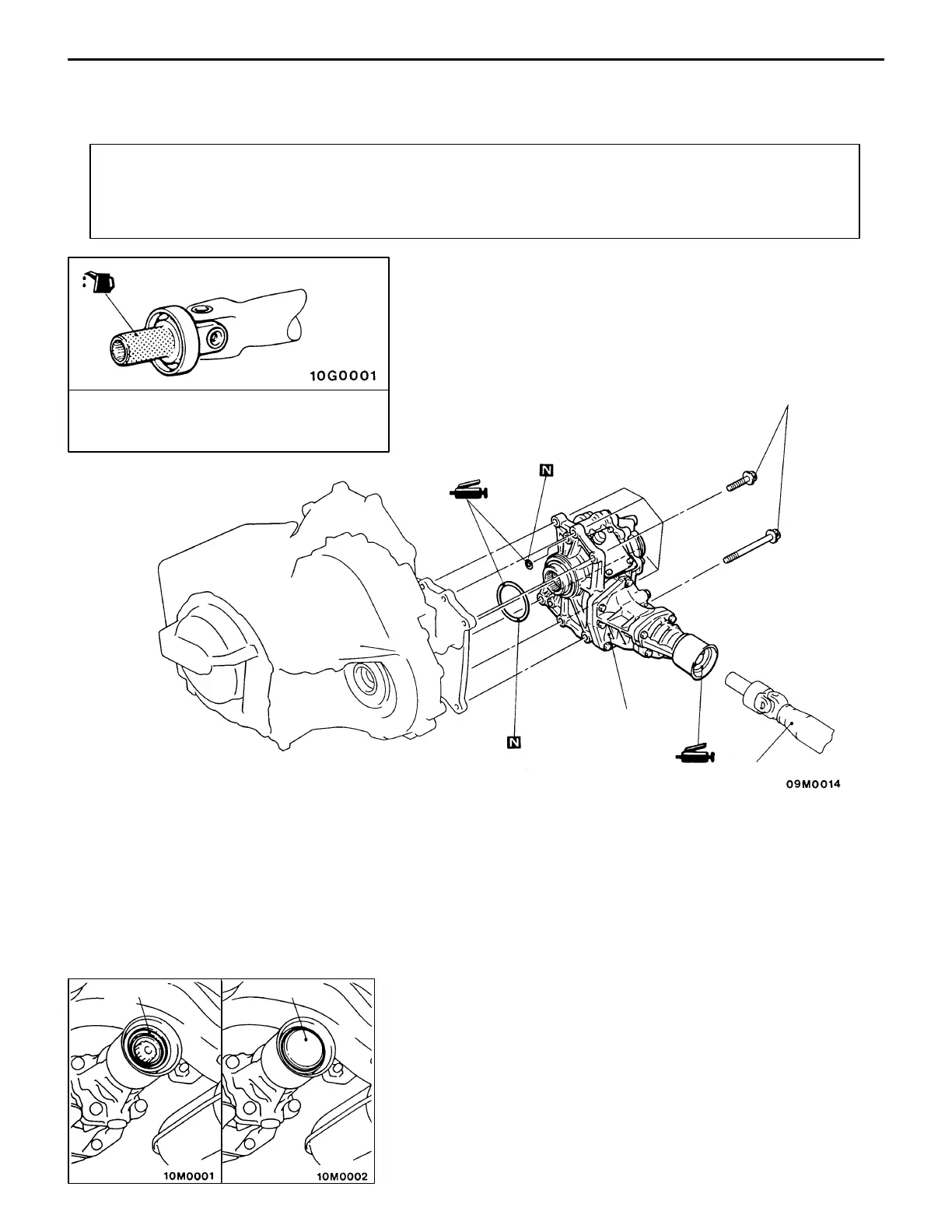

TRANSFER ASSEMBLY
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Transmission Oil Draining and Supplying
(Refer to P.22A-3.)
D Transfer Oil Draining and Supplying
(Refer to P.22A-3.)
D Front Exhaust Pipe Removal and Installation
(Refer to GROUP 15.)
Gear oil:
MITSUBISHI genuine “Dia-Queen
Super” hypoid gear oil (GL-5)
Unit: Nm {kgf@m}
2
69 {7.0}
1
Removal steps
D Drive shaft (Refer to P.22A-9.)
D Output shaft (Refer to P.22A-9.)
1. Front propeller shaft
(Refer to GROUP 25)
AA" 2. Transfer assembly
REMOVAL SERVICE POINT
AA" TRANSFER ASSEMBLY REMOVAL
Caution
(1) Use care not to damage the lip of the oil seal in the
transfer case.
(2) Use the special tool to cover the opening in the transfer
case to prevent oil from flowing out or foreign materi-
als from entering the case.
Oil seal lip MB991193
To Next Page
