Mitsubishi LANCER EVOLUTION-IV 1998

CLUTCH – Clutch Control
21-6
CLUTCH MASTER CYLINDER
DISASSEMBLY AND REASSEMBLY
6
7
4
1
3
Piston repair kit
Clutch fluid: DIA-QUEEN BRAKE
FLUID SUPER 4
Grease: Rubber grease
5
2
2
1
4
2
2
8
3
Unit: Nm {kgf@m}
13 {1.3}

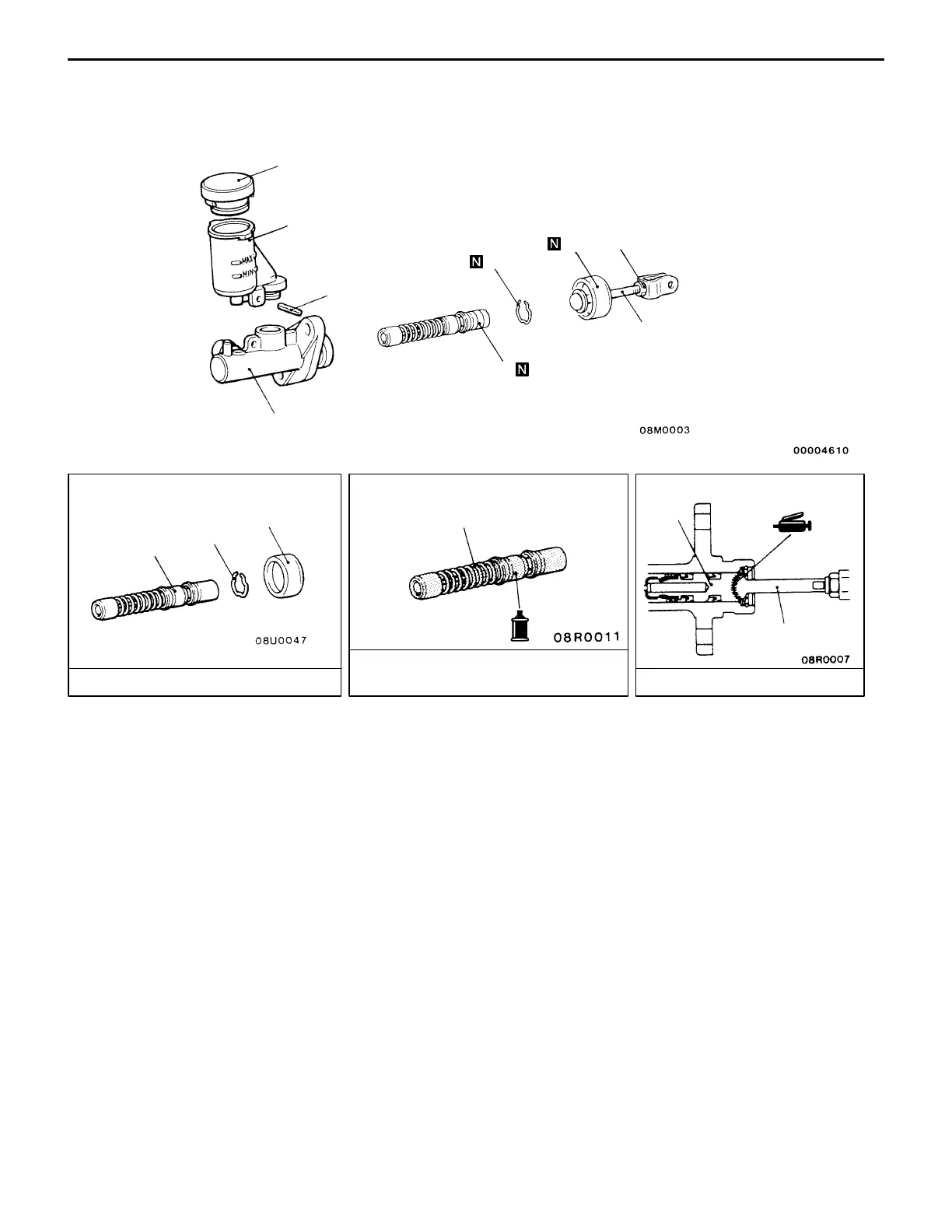

Disassembly steps
1. Piston stopper ring
2. Piston assembly
3. Push rod assembly
4. Boot
5. Reservoir cap
6. Spring pin
7. Reservoir tank
8. Clutch master cylinder body
Caution
Do not disassemble piston assembly.
