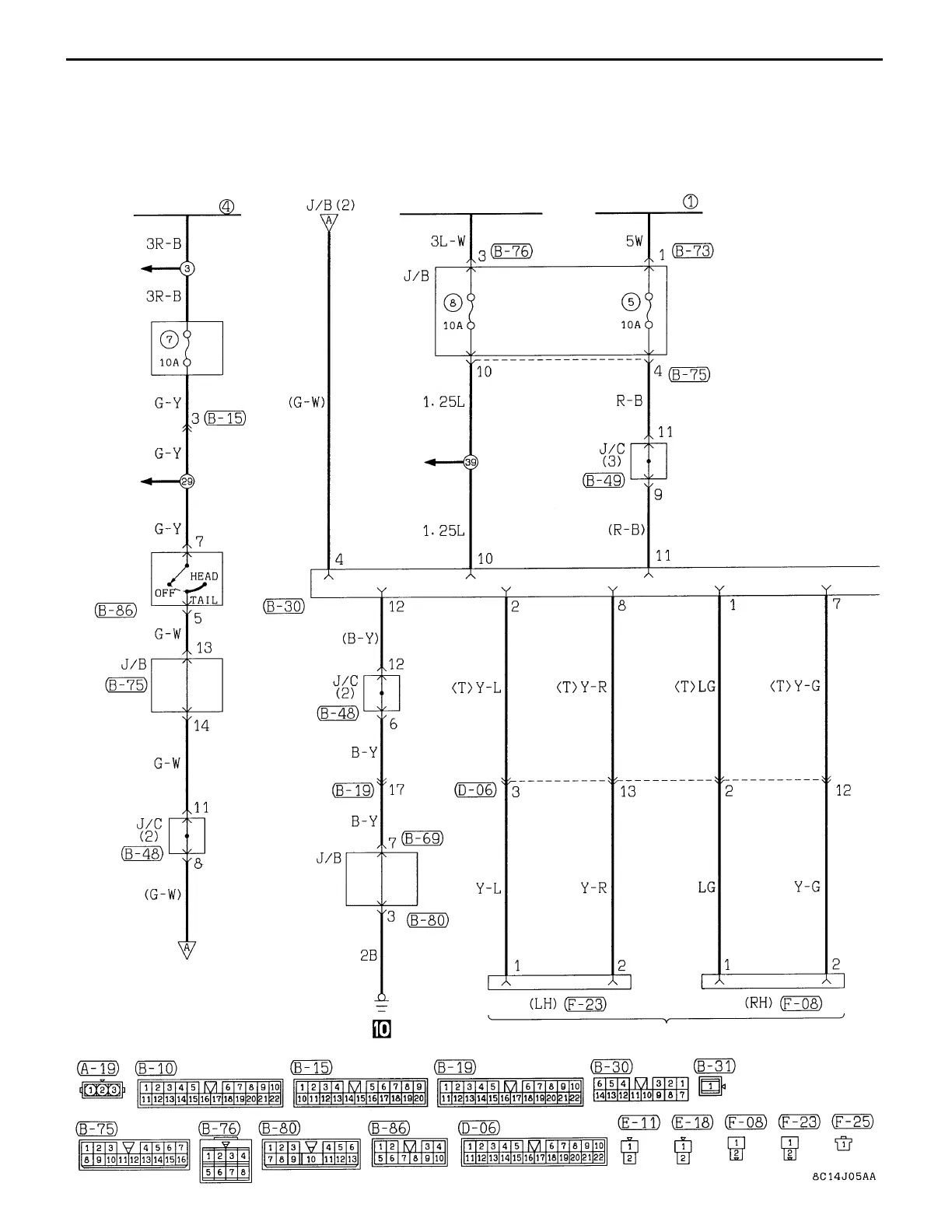

CIRCUIT DIAGRAM – Spare Connector for Radio
FUSIBLE LINK
• CHARGING
SYSTEM
• POWER
SUPPLY
• HEADLAMP
DEDICATED
FUSE
FOG
LAMP
COLUMN
SWITCH
(LIGHTING
SWITCH)
SPARE
CONNECTOR
FOR RADIO
IGNITION SWITCH (ACC)
CENTRAL DOOR
LOCKING SYS-
TEM <VEHICLES
WITH KEYLESS
ENTRY SYSTEM>
FUSIBLE LINK
SPARE CONNECTOR
FOR REAR SPEAKER
C-68
SPARE CONNECTOR FOR RADIO
