Mitsubishi LANCER EVOLUTION-IV 1998

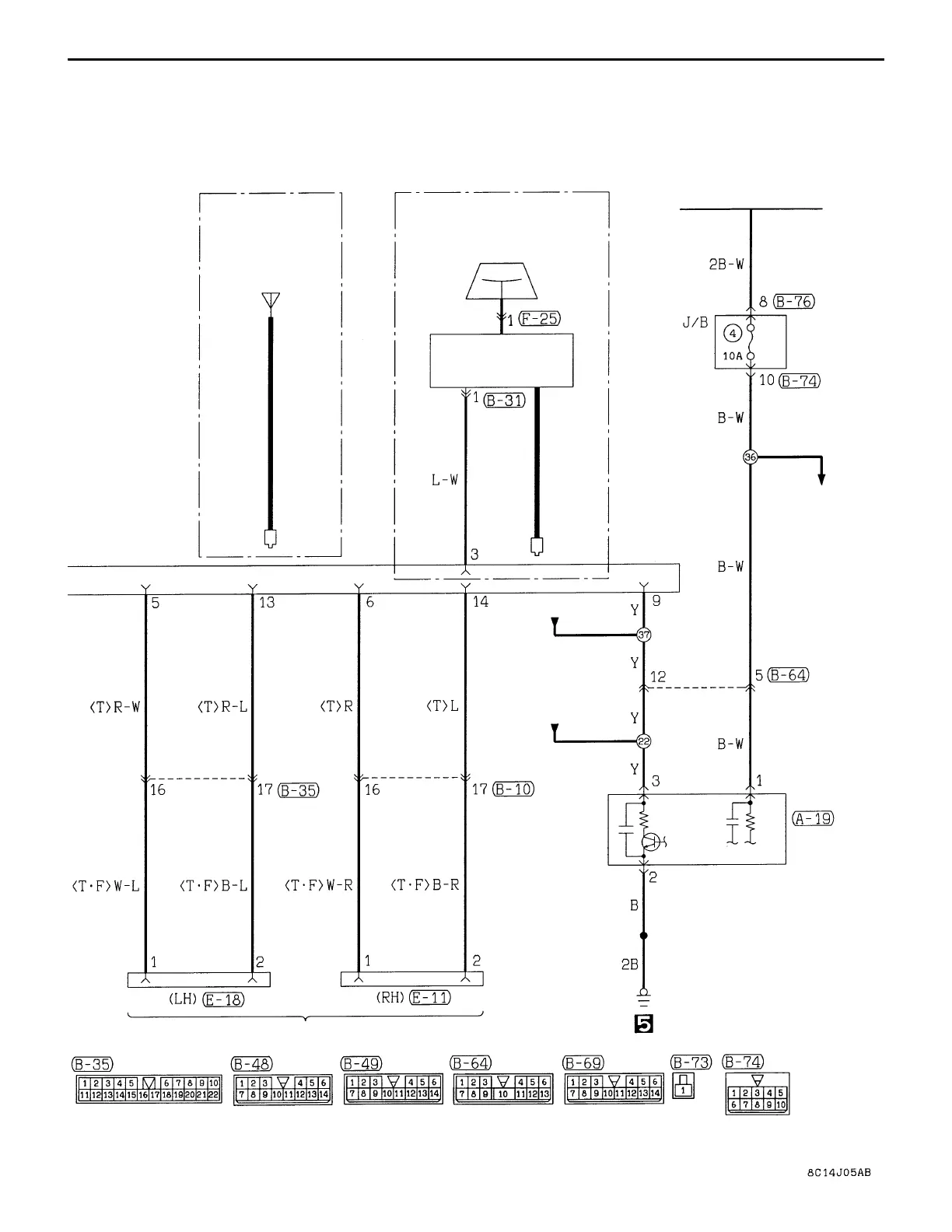

CIRCUIT DIAGRAM – Spare Connector for Radio
<VEHICLES WITH
POLE ANTENNA>
POLE
ANTENNA
ANTENNA
FEEDER
LINE
<VEHICLES WITH
GLASS ANTENNA>
REAR WINDOW
GLASS ANTENNA
GLASS ANTENNA
AMPLIFIER
ANTENNA
FEEDER
LINE
METER AND GAUGE
SPARE CONNECTOR FOR
DOOR SPEAKER
IGNITION SWITCH (IG1)
• SUNROOF
• SEAT BELT
WARNING LAMP
VEHICLE
SPEED
SENSOR
ENGINE CONTROL
SYSTEM
C-69
