MANUAL TRANSMISSION OVERHAUL – Select Lever
22B-37
SELECT LEVER
DISASSEMBLY AND REASSEMBLY
10
9
8
7
6
5
4
3
2
1
Unit: Nm {kgf@m}
11 {1.2}

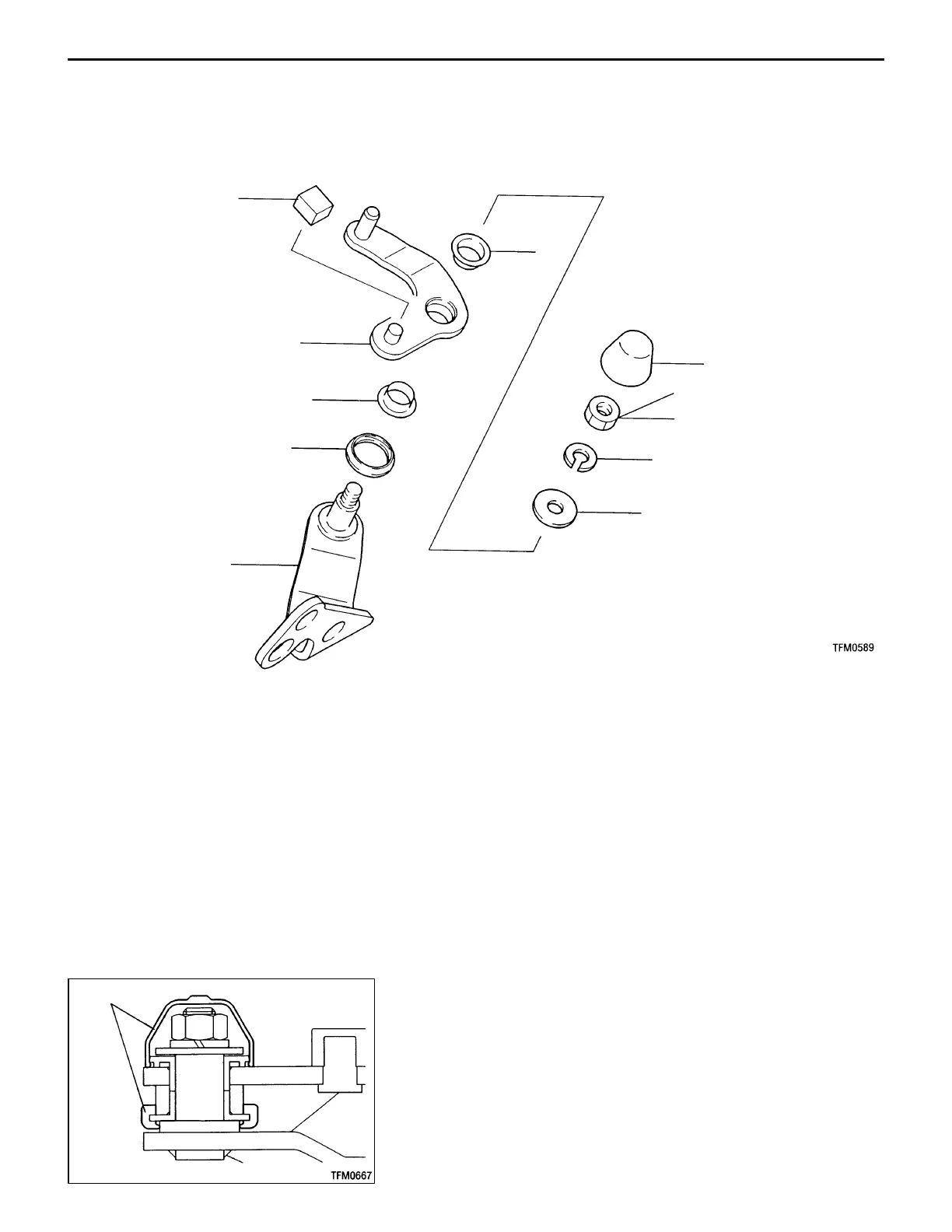

Disassembly steps
"AA 1. Dust cover
2. Nut
3. Spring washer
4. Washer
5. Select lever bushing
6. Select lever shoe
7. Select lever
8. Select lever bushing
"AA 9. Dust cover
10. Select lever shaft
REASSEMBLY SERVICE POINT
"AA DUST COVER INSTALLATION
Dust cover
