ENGINE COOLING – Water Pump
14-5

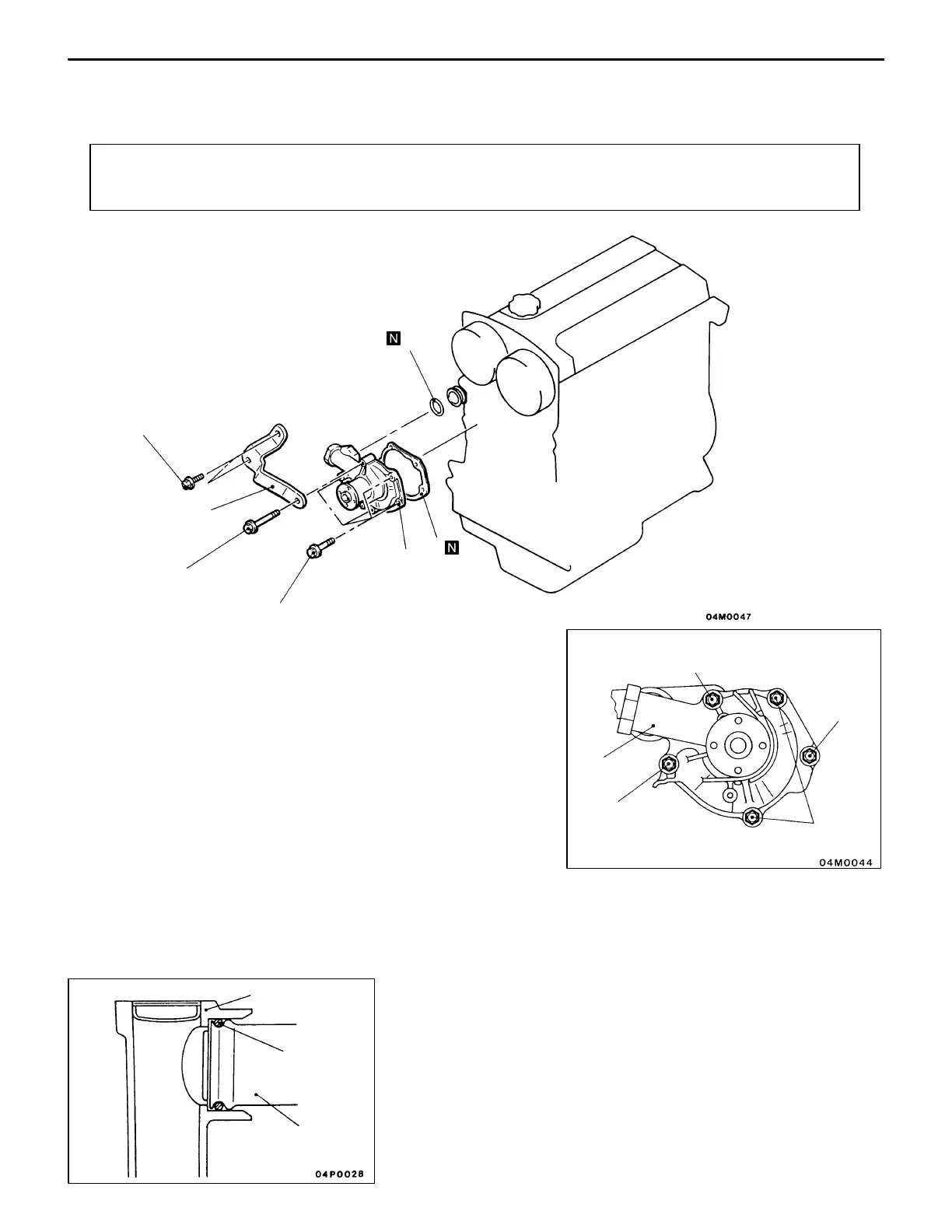

WATER PUMP
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Engine Coolant Draining and Supplying
(Refer to P.14-2.)
D Timing Belt and Timing Belt B Removal and Installation
(Refer to GROUP 11.)
12 – 15 {1.2 – 1.5}
24 {2.4}
8 × 22
8 × 14
Bolt specifications
8 × 24
Screw diameter × length mm
1
2
4
3
2
22 {2.2}
8 × 70
Unit: Nm {kgf@m}
Removal steps
1. Alternator brace
2. Water pump
3. Water pump gasket
"AA 4. O-ring
INSTALLATION SERVICE POINT
"AA O-RING INSTALLATION
Fit the O-ring in the O-ring groove in the water inlet pipe,
and coat the outer circumference of the O-ring or the inside
surface of the water pump with water before inserting the
pipe.
Water pump
O-ring
Water inlet pipe
