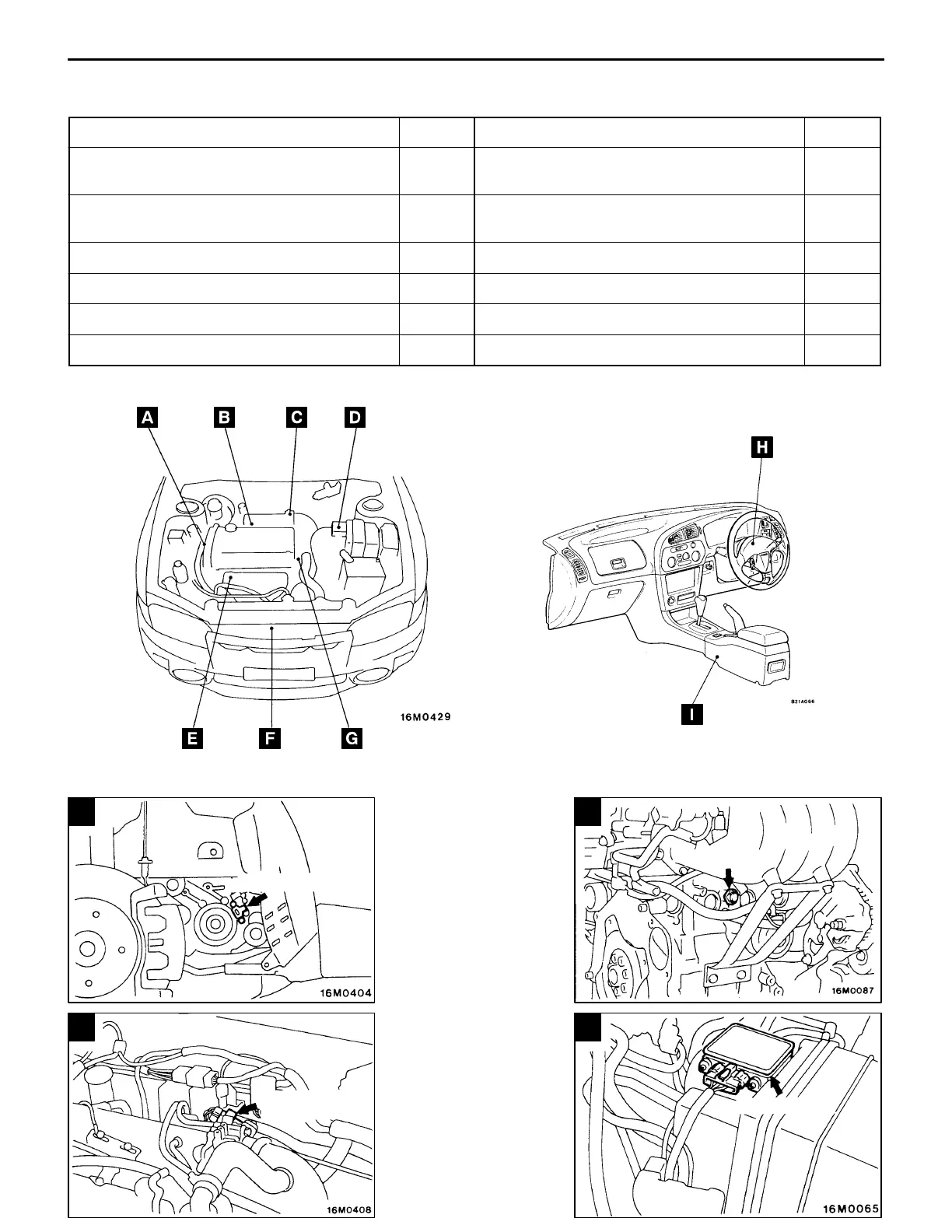

SINGLE PART INSTALLATION POSITION – Sensor
A
Crank angle sensor
B
Knock sensor
C
Throttle position
sensor
D
Air flow sensor
B-18
SENSOR
Name Symbol Name Symbol
Acceleration sensor (lateral)
<vehicles with AYC>
I Knock sensor B
Acceleration sensor (longitudinal)
<vehicles with ABS and AYC>
I Outside air temperature sensor
<vehicles with fully automatic air conditioner>
F
Air flow sensor D O
2
sensor E
Camshaft position sensor G Steering angle sensor <vehicles with AYC> H
Crank angle sensor A Throttle position sensor C
Engine coolant temperature sensor G
