ENGINE ELECTRICAL – Charging System
16-3
REMOVAL SERVICE POINTS
AA" POWER STEERING, A/C COMPRESSOR, AND
ALTERNATOR DRIVE BELT REMOVAL
(1) Align the hole in the auto tensioner bracket with that
in the arm and insert a screwdriver into the holes.
(2) Remove the drive belt.
AB" DELIVERY PIPE, INJECTOR, AND PRESSURE
REGULATOR ASSEMBLY REMOVAL
After the mounting points have been loosened, slightly move
the corresponding part to allow for a space for removal of
the alternator.
AC" ALTERNATOR REMOVAL
Push the engine all the way up with a garage jack and remove
the alternator upward the engine compartment.

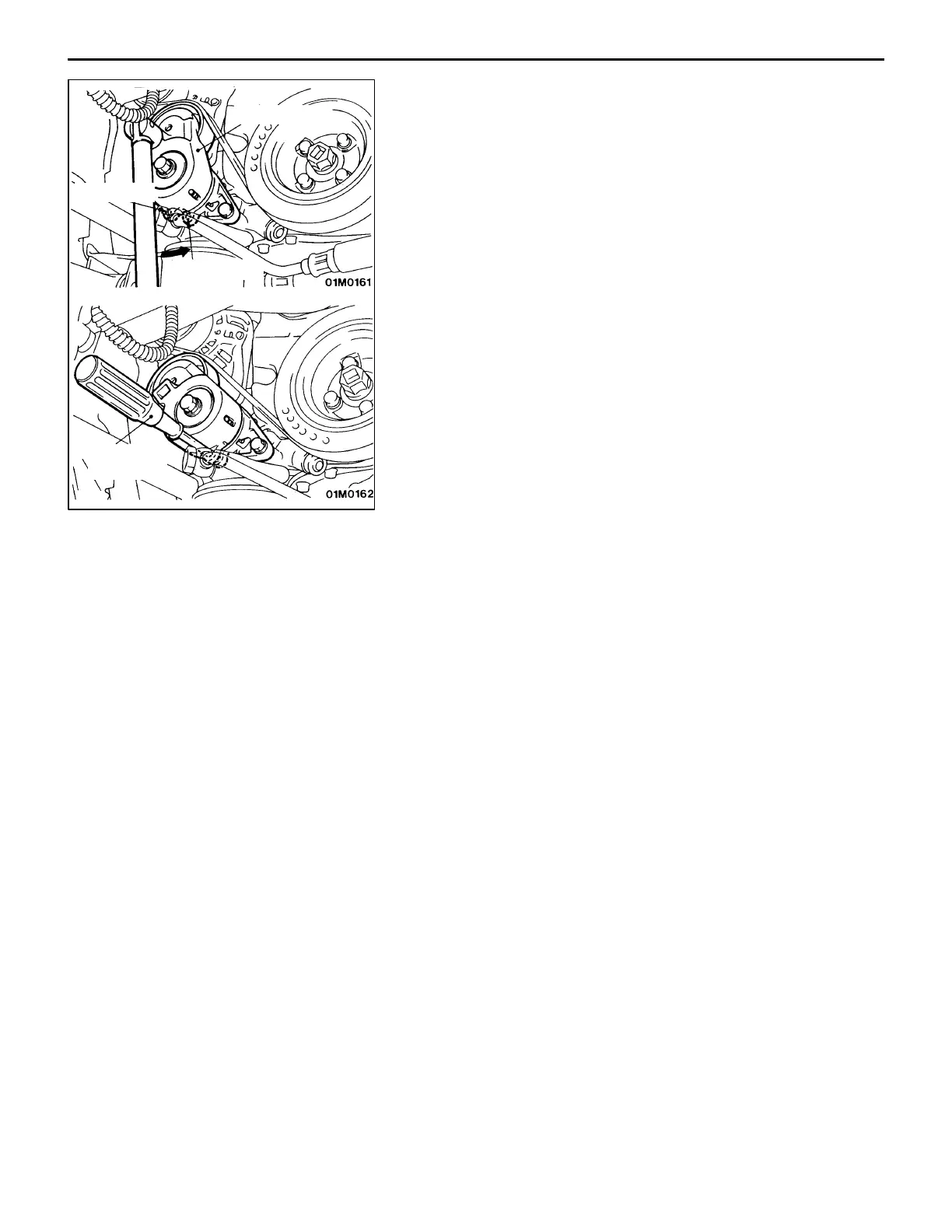

Phillips
screwdriver
Hole in arm
Auto tensioner
Hole in bracket
