Mitsubishi LANCER EVOLUTION-IV 1998

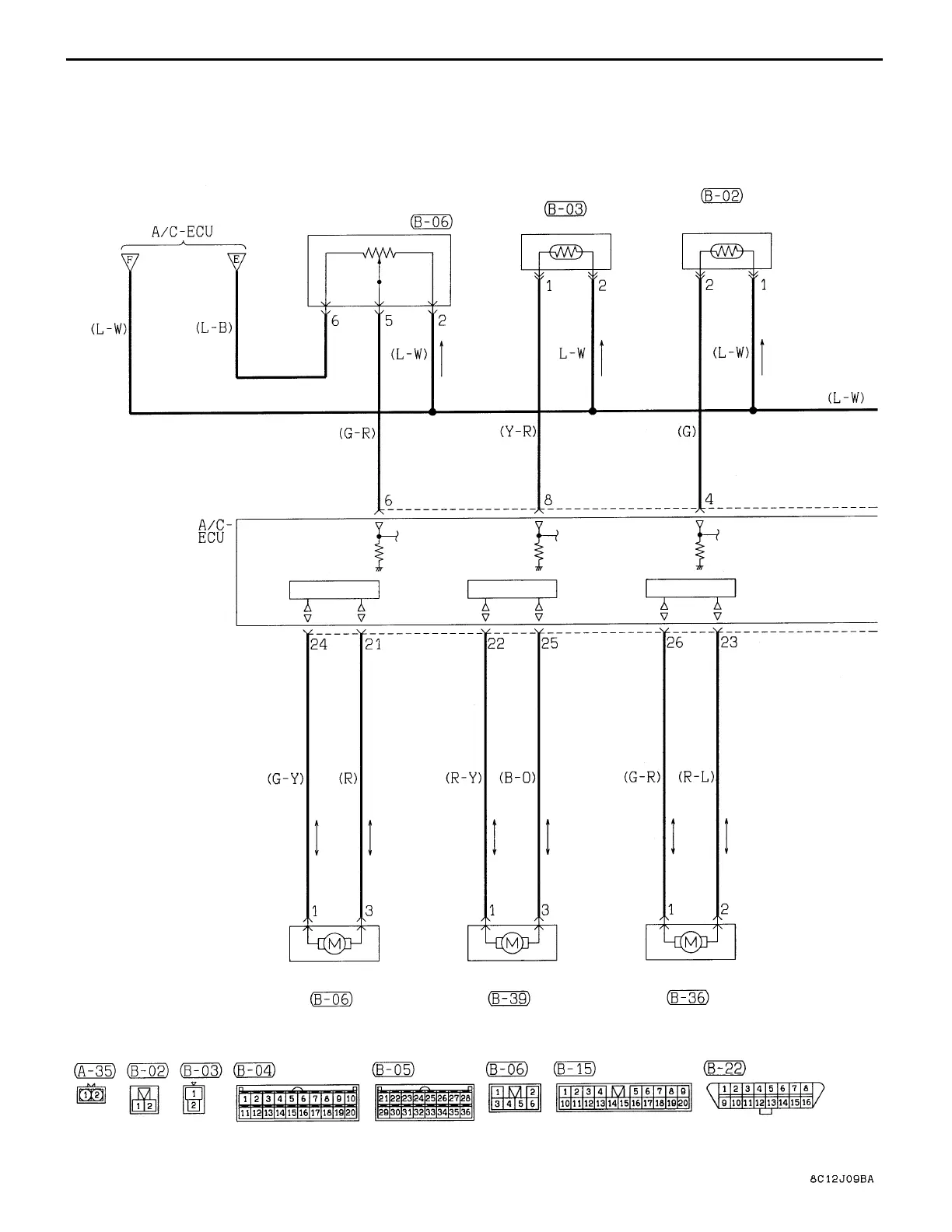

CIRCUIT DIAGRAM – Fully Automatic Air Conditioner
AIR OUTLET CHANGEOVER
POTENTIOMETER
AIR THERMO SENSOR
HEATER WATER
TEMPERATURE SENSOR
DEDICATED IC
AIR OUTLET CHANGEOVER
DAMPER MOTOR
AIR MIX DAMPER
MOTOR
INSIDE AND OUTSIDE AIR
CHANGEOVER DAMPER MOTOR
DEDICATED IC
DEDICATED IC
FRONT VIEW
C-56
FULLY AUTOMATIC AIR CONDITIONER (CONTINUED)
