Mitsubishi LANCER EVOLUTION-IV 1998

ENGINE EMISSION CONTROL – Emission Control System <MPI>
17-3

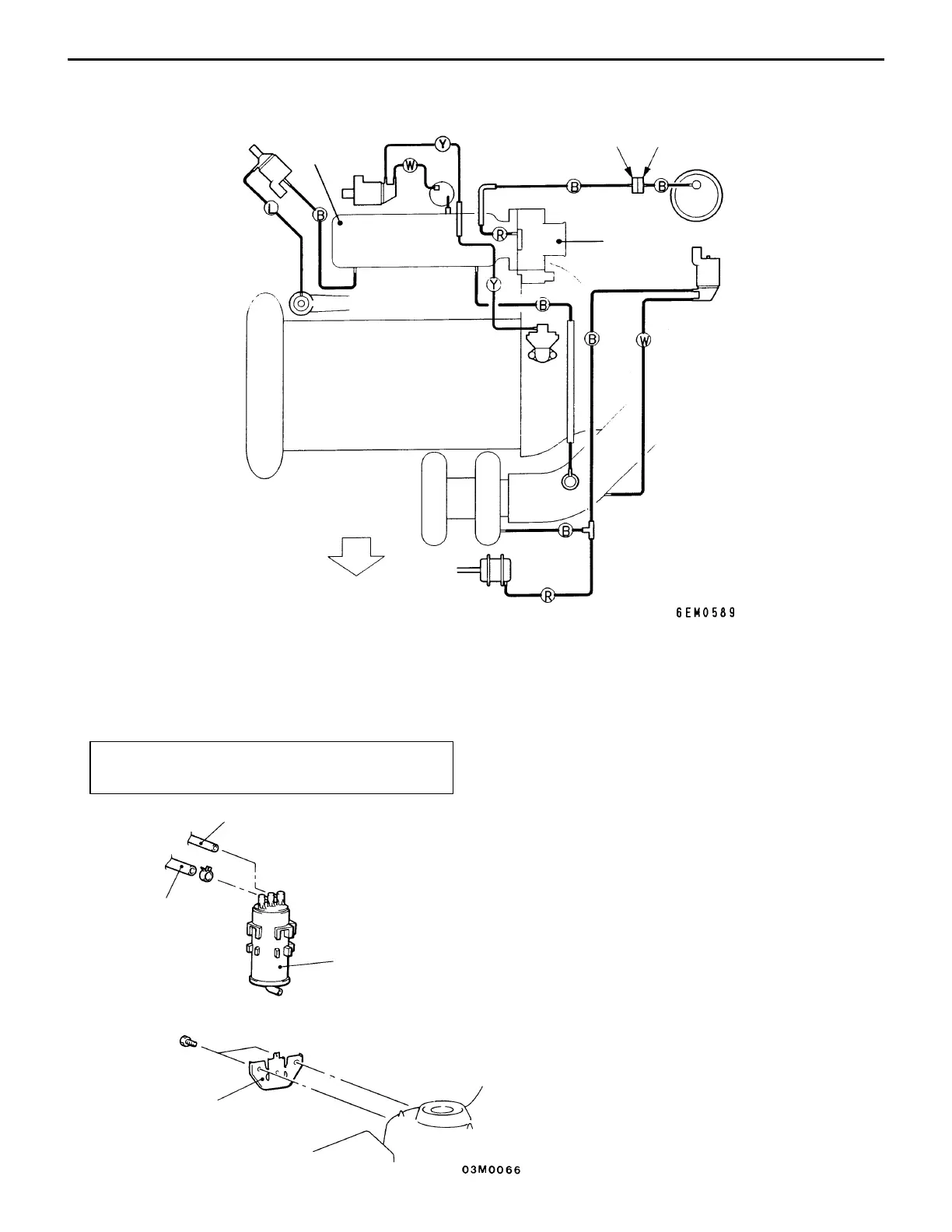

VACUUM HOSE PIPING CIRCUIT DIAGRAM
Fuel pressure
control valve
Surge tank
Secondary air
control solenoid
valve
Blue White
Canister
Check
valve
Throttle body
Fuel
pressure
regulator
Wastegate
solenoid
valve
Secondary
air valve
Bypass
valve
Front of vehicle
Wastegate
actuator
Vacuum hose color
B: Black
L: Blue
R: Red
W: White
Y: Yellow
CANISTER
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Air Cleaner Removal and Installation
2
1
3
4
Removal steps
1. Vapor hose
2. Purge hose
3. Canister
4. Canister bracket
