MANUAL TRANSMISSION OVERHAUL – Transmission
22B-18

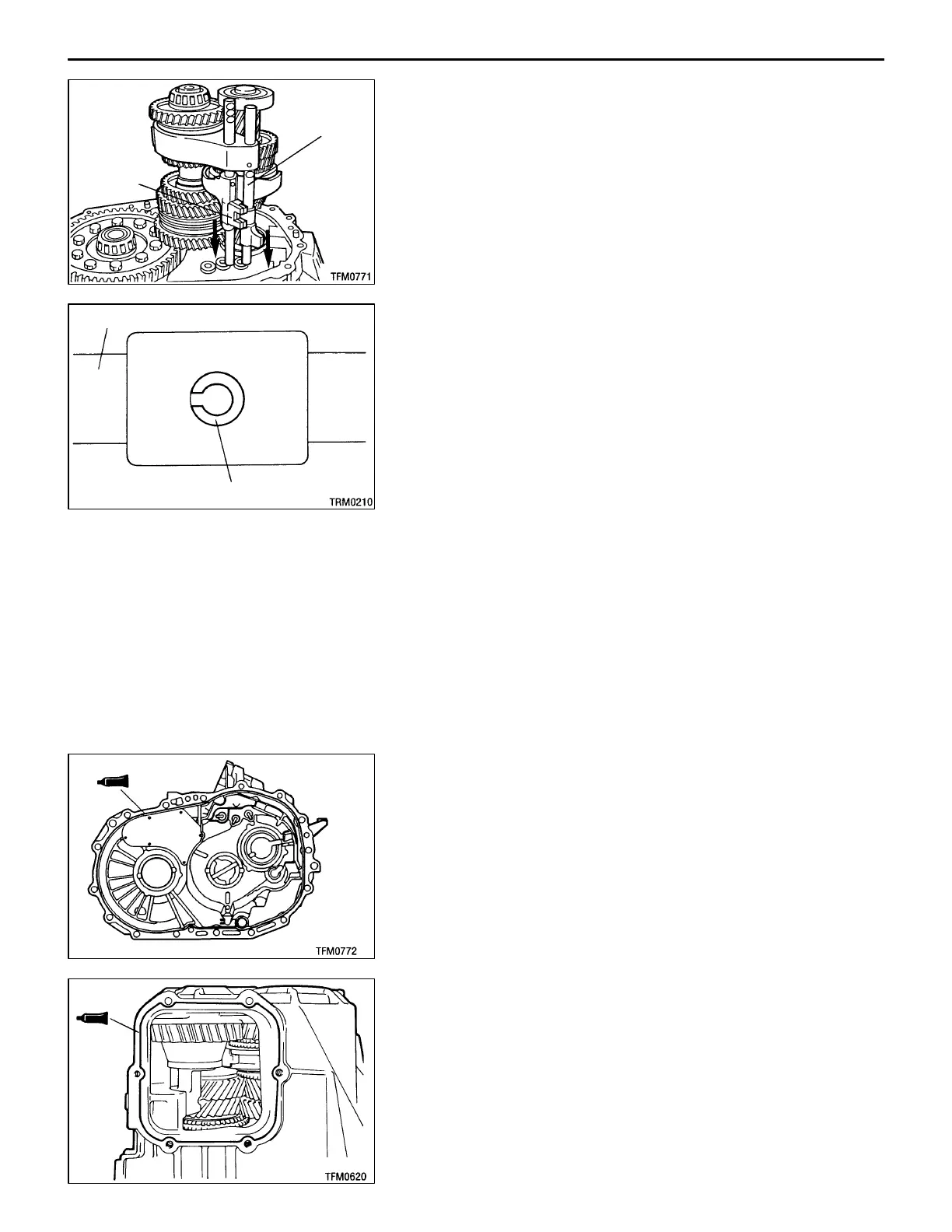

(2) Slide the shift rails into the shift rail holes in the clutch
housing.
"CA SPRING PIN INSTALLATION
Install the spring pin with its slit directed as shown in the
illustration.
"DA SPACER INSTALLATION
Install the spacer selected in the section “ADJUSTMENT
BEFORE REASSEMBLY”.
"EA TRANSMISSION CASE INSTALLATION
Apply sealant to the illustrated position of the transmission
case.
Specified sealant: THREEBOND 1216
Caution
Squeeze out the sealant uniformly, while making sure
that it is not broken or excessively applied.
"FA UNDER COVER INSTALLATION
Apply sealant to the illustrated position of the transmission
case.
Specified sealant: THREEBOND 1216
Caution
Squeeze out the sealant uniformly, while making sure
that it is not broken or excessively applied.
3rd-4th speed
shift rail
5th-reverse
speed shift
rail
Spring pin
Shift rail
f 2 mm
f 2 mm
