MANUAL TRANSMISSION OVERHAUL – Transmission Case
22B-45

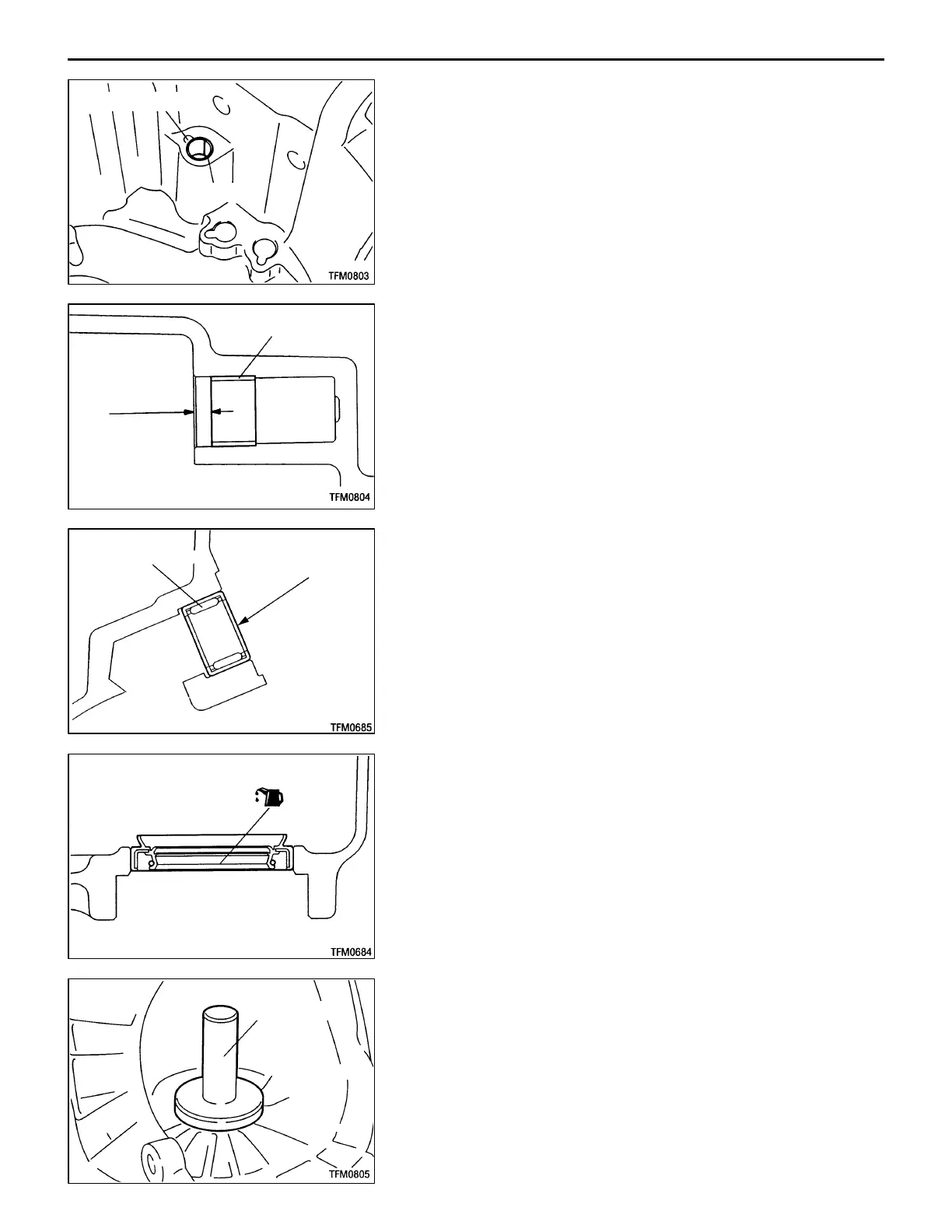

REASSEMBLY SERVICE POINTS
"AA BUSHING INSTALLATION
Press fit the bushing to the illustrated position, while making
sure that the split ends of the bushing do not coincide with
the air purge groove.
"BA NEEDLE BEARING INSTALLATION
Press fit the needle bearing until it is flush with the case,
while making sure that the model number stamped side is
oriented in the direction shown.
"CA OIL SEAL INSTALLATION
Apply transmission oil to the oil seal lip area.
Transmission oil: DIA QUEEN MULTI-GEAR OIL 75W/85W
Air purge groove
Bushing
Bushing
3 mm
Needle bearing Model No.
stamped surface
MD998800
To Next Page
