MANUAL TRANSMISSION OVERHAUL – Center Differential
22B-47

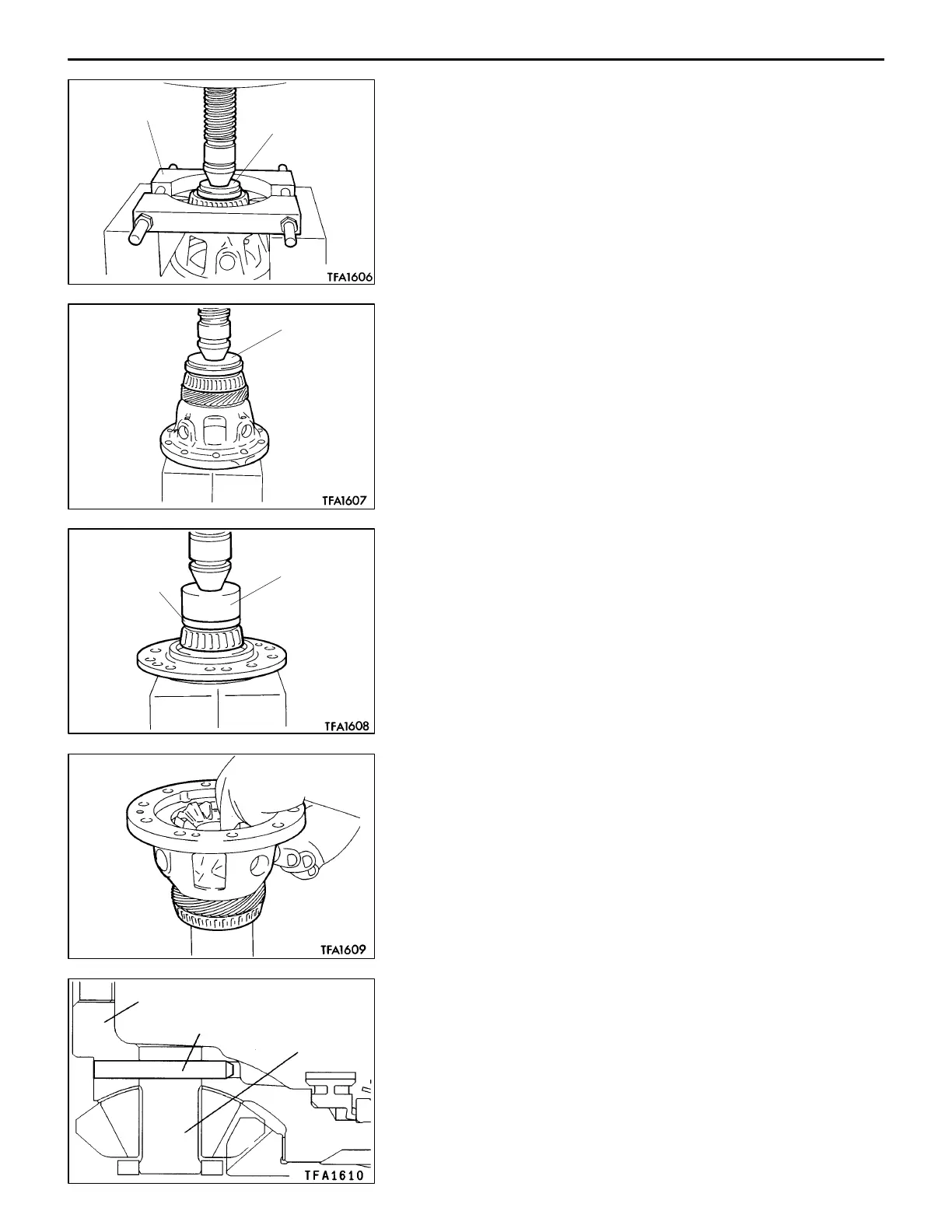

AB" TAPER ROLLER BEARING REMOVAL
Use the special tools to remove the taper roller bearing.
REASSEMBLY SERVICE POINTS
"AA TAPER ROLLER BEARING INSTALLATION
Use the special tool to install the taper roller bearing.
"BA TAPER ROLLER BEARING INSTALLATION
Use the special tools to install the taper roller bearing.
"CA SPACER / SIDE GEAR / WASHER /
PINION/PINION HOLDER / PINION SHAFT /
LOCK PIN / FRONT OUTPUT SHAFT / SNAP
RING / CENTER DIFFERENTIAL FLANGE
INSTALLATION
(1) Install the side gear in the center differential case with
the spacer attached.
NOTE
If a new side gear is to be installed, select a spacer
with medium thickness (0.8 – 0.9 mm).
(2) Fit the washer on the back of each pinion. Engage the
4 pinions simultaneously in the side gear.
Rotate the gears to place them in position, then install
the pinion shaft holder.
(3) Insert the pinion shafts.
(4) Install the lock pins in the illustrated direction.
MD998917
MB990932
MB990937
MD998812
MD998823
Lock pin
Differential case
Pinion shaft
