REAR AXLE – LSD Case Assembly <Vehicles without AYC>
27-47
ASSEMBLY SERVICE POINTS
"AA INSTALLATION TO DIFFERENTIAL CASE B
Before starting the assembly procedure, perform the following
steps to adjust dimensional differences (clutch plate friction
force) in the axial direction of the components inside the
differential case and axial clearance of the differential side
gear.

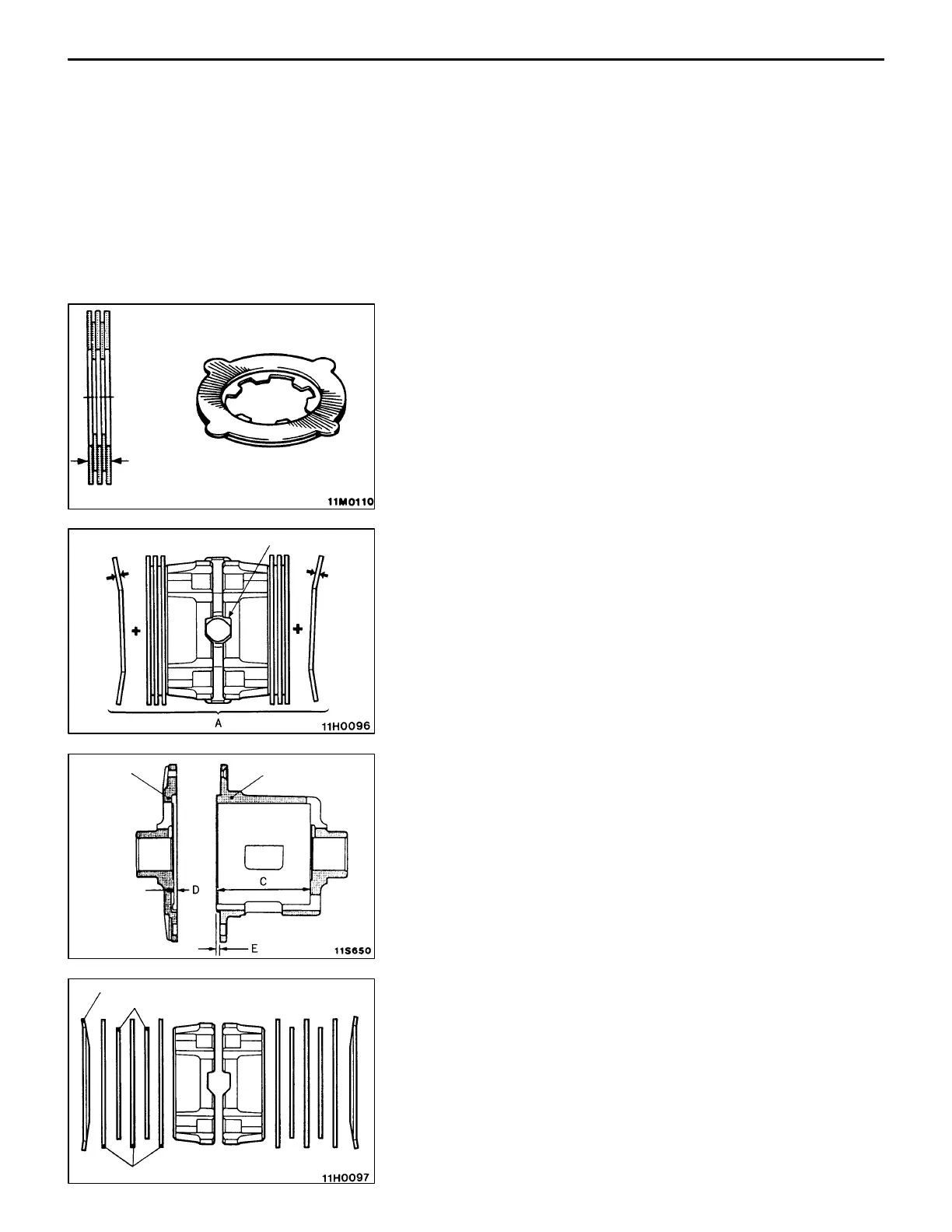

(1) Place friction discs (two each) and friction plates (three
each) one on top of another as illustrated and, using
a micrometer, measure the thickness of each of the right
and left assemblies. Select different discs and plates so
that the difference between the right and left assemblies
falls within the specified range.
Standard value: 0 – 0.05 mm
NOTE
If a new part is used, note that the friction disc comes
in two thicknesses: 1.6 mm and 1.7 mm.
(2) Measure the thickness of each of the right and left spring
plates.
(3) Assemble the pressure ring internal parts (pinion shaft
and pressure ring), friction plates, and friction discs and,
using a micrometer, measure the overall width.
NOTE
When taking measurements, press the assembly from
both sides so that the pinion shaft makes a positive contact
with the groove in the pressure ring.
(4) Find value (A) which is the thickness measured in step
(3) added to the thickness of two spring plates.
(5) Find dimension (B) between the spring plate faying
surfaces when differential case A and B are assembled
together.
B = C + D – E
(6) If the clearance between the spring plate and differential
case (B – A) is outside the specified range, change the
friction discs and make adjustments.
Standard value: 0.06 – 0.25 mm
(7) Coat each part with the specified gear oil and mount
it in the specified direction and order into differential case
B.
Gear oil: DIA QUEEN LSD GEAR OIL
NOTE
Apply a careful coat of gear oil to the contacting and
sliding surfaces.
Groove
Differential
case A
Differential case B
Spring plate
Friction disc
Friction plate
To Next Page
