REAR AXLE – Hydraulic Unit <Vehicles with AYC>
27-51
INSTALLATION SERVICE POINTS

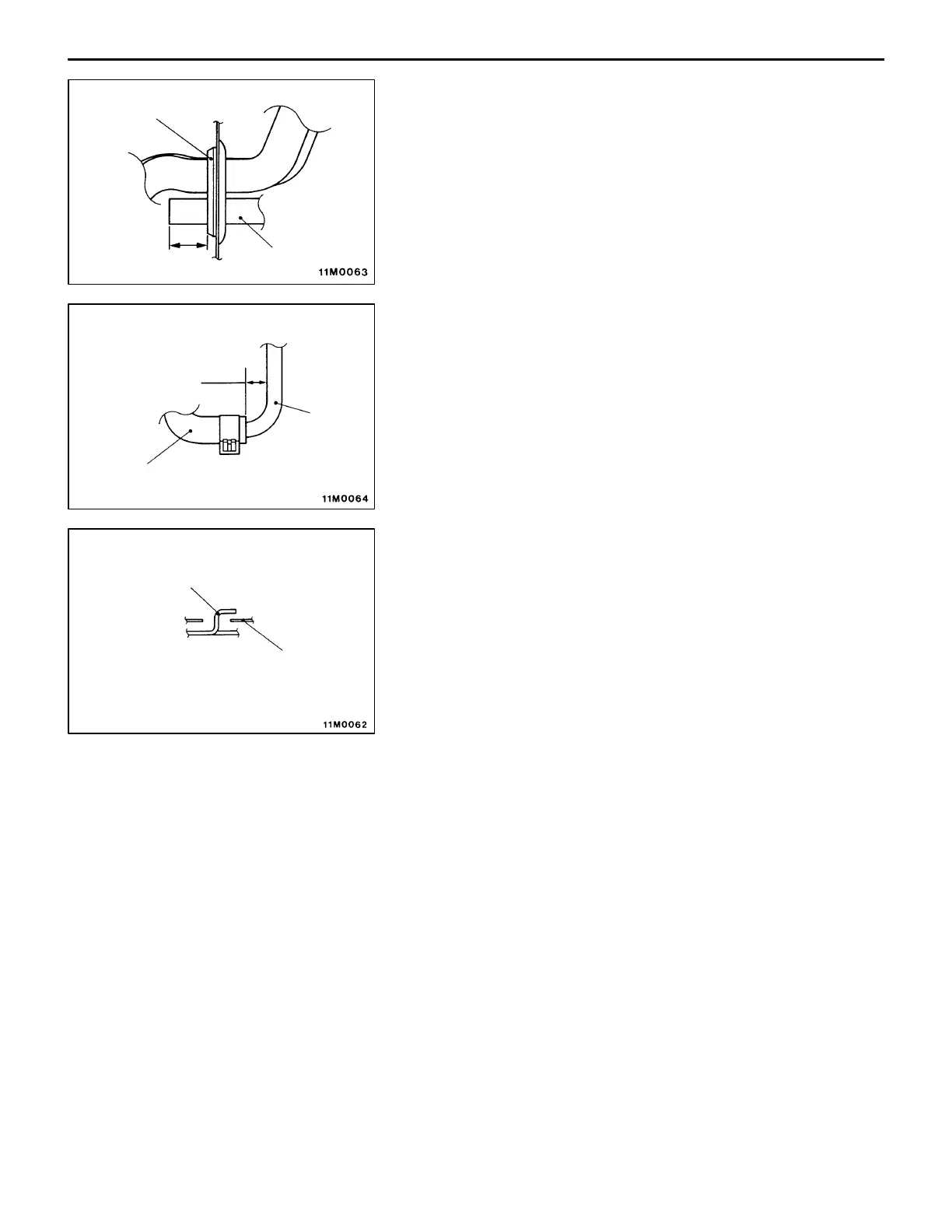

"AA GROMMET INSTALLATION
On the vehicle mounted with a sun roof, mount the drain
pipe to the grommet as illustrated.
"BA SUCTION HOSE / RETURN HOSE INSTALLATION
Fit the suction hose and return hose to the nipple of hydraulic
unit as illustrated.
"CA HYDRAULIC UNIT AND BRACKET ASSEMBLY
INSTALLATION
Hook the hydraulic unit bracket hook to the rear floor side
member and install the hydraulic unit and bracket assembly
mounting bolt.
Grommet
Drain pipe
25 ± 5 mm
Nipple
Suction hose and
return hose
15 mm
Hook
Rear floor side member
