POWER PLANT MOUNT – Roll Stopper and Centermember
32-2
ROLL STOPPER AND CENTERMEMBER
REMOVAL AND INSTALLATION
Caution
When tightening the portion marked with *, first
temporarily tighten it, then torque to specification
with the engine weight applied to the body.
1
2
34
5
Unit: Nm {kgf@m}
52 {5.3}*
2
2
34 {3.5}
34 {3.5}
93 {9.5}
69 {7.0}
93 {9.5}
2

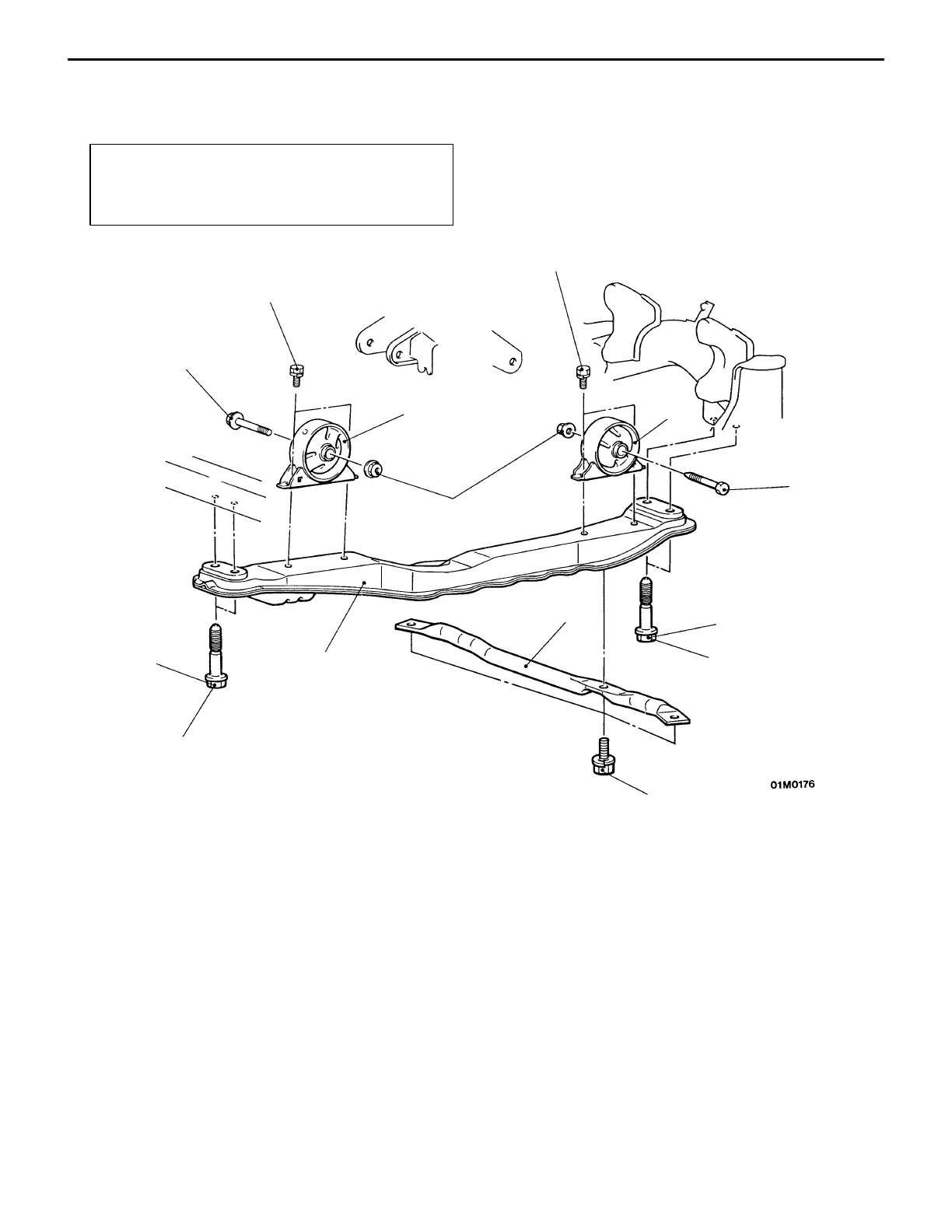

Removal steps
1. Front crossmember bar <vehicles
with 17’ wheels>
2. Bolt
"BA 3. Front roll stopper bracket assembly
"AA 4. Rear roll stopper bracket assembly
5. Centermember
NOTE
The conventional service procedures apply for the
installation service points.
To Next Page
