BASIC BRAKE SYSTEM – On-vehicle Service
35A-5

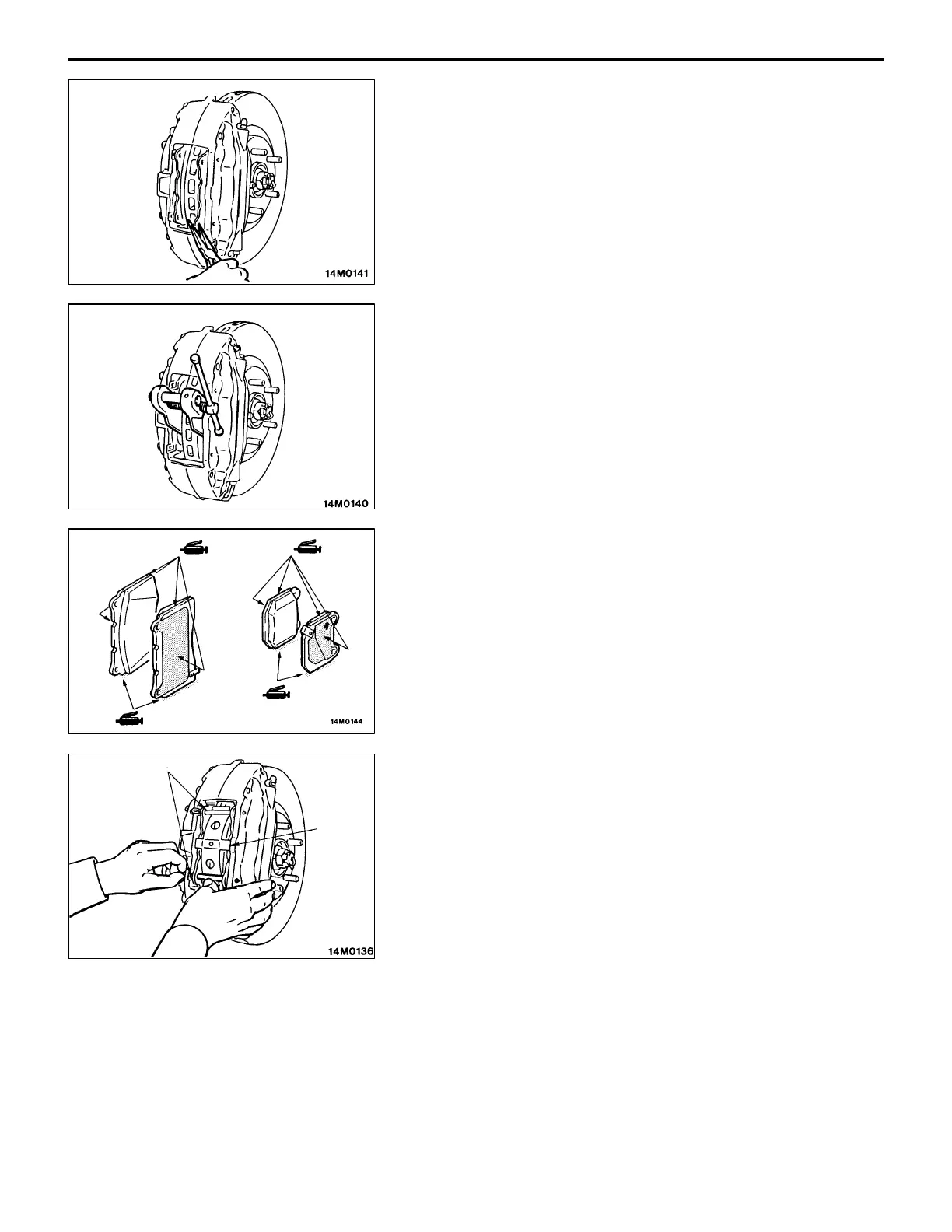

(5) Remove the pad from the caliper.
(6) To measure brake drag force after new pads have been
installed, use a spring balance to measure the turning
sliding resistance of the hub with the pads removed.
(7) Clean the piston and, using the special tool, push the
piston into the cylinder.
(8) Apply repair kit grease to the portions of the pads indicated
on the left. At this time, make sure that the grease will
not be applied to any other surfaces.
(9) Mount the pad to the caliper so that its side with the
wear indicator is on the outside of the vehicle. With the
rear pad, ensure that the arrow on the pad faces in the
same direction as the brake disc turns when the vehicle
moves forward.
(10)Holding the cross spring with one hand, fit pins in the
caliper.
(11)Mount clips to the pins.
(12)Using a spring balance, measure the turning sliding
resistance of the hub in the forward direction.
(13)Find the brake disc drag force [the difference in
measurements taken in step (6) and in step (12)].
Standard value: 69 N {7.0 kgf}
<Front> <Rear>
Pins
Cross
spring
