PARKING BRAKE – Parking Brake Drum
36-8

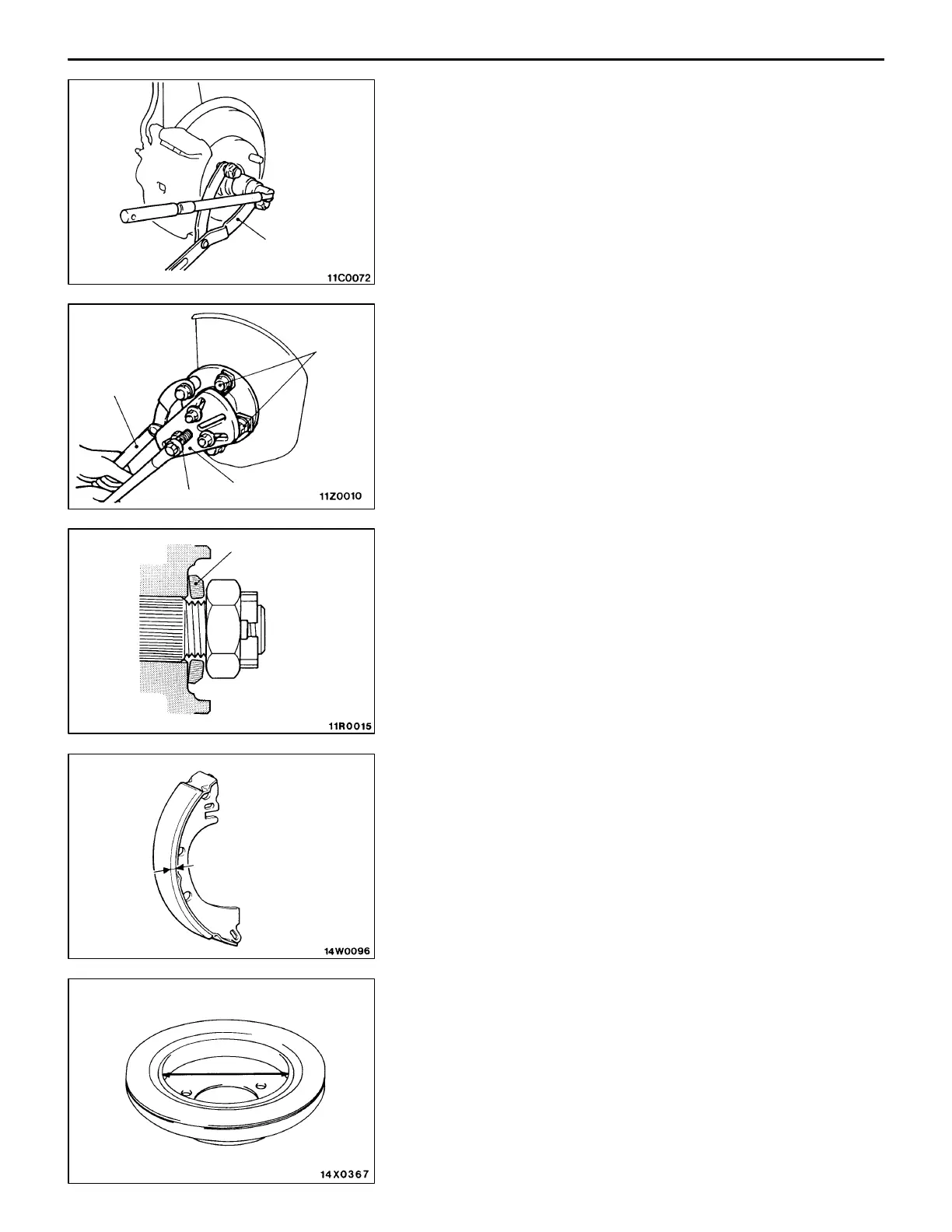

REMOVAL SERVICE POINTS
AA" DRIVE SHAFT NUT REMOVAL
AB" REAR HUB ASSEMBLY REMOVAL
(1) Using the special tool, remove the drive shaft from the
rear hub assembly.
(2) Remove the mounting bolts and remove the rear hub
assembly from the knuckle.
INSTALLATION SERVICE POINT
"AA DRIVE SHAFT NUT INSTALLATION
(1) Install the drive shaft washer in the direction shown.
(2) Use the special tool as you did during removal and tighten
the drive shaft nut to the specified torque.
Tightening torque: 196 – 255 Nm {20.0 – 26.0 kgf@m}
INSPECTION
BRAKE LINING AND BRAKE DRUM WEAR CHECK
(1) Measure the thickness of the brake lining at a location
that wears most.
Standard value: 2.8 mm
Limit: 1.0 mm
(2) If the measurement exceeds the limit, replace the shoe
& lining assembly of both sides as a set.
(3) Measure I.D. of the brake disc at two or more places.
Standard value: 168.0 mm
Limit: 169.0 mm
(4) If the measurement exceeds the limit or there is an
excessive eccentric wear evident, replace the brake disc.
MB990767
MB990244
(3)
MB990767
MB990242
MB991354
Washer
