STEERING – Power Steering Gear & Linkage
37A-5
LUBRICANT AND SEALANT APPLICATION POINTS
Same as before.
DISASSEMBLY SERVICE POINT
Follow the conventional procedures.
REASSEMBLY SERVICE POINTS
Follow the conventional procedures except followings.

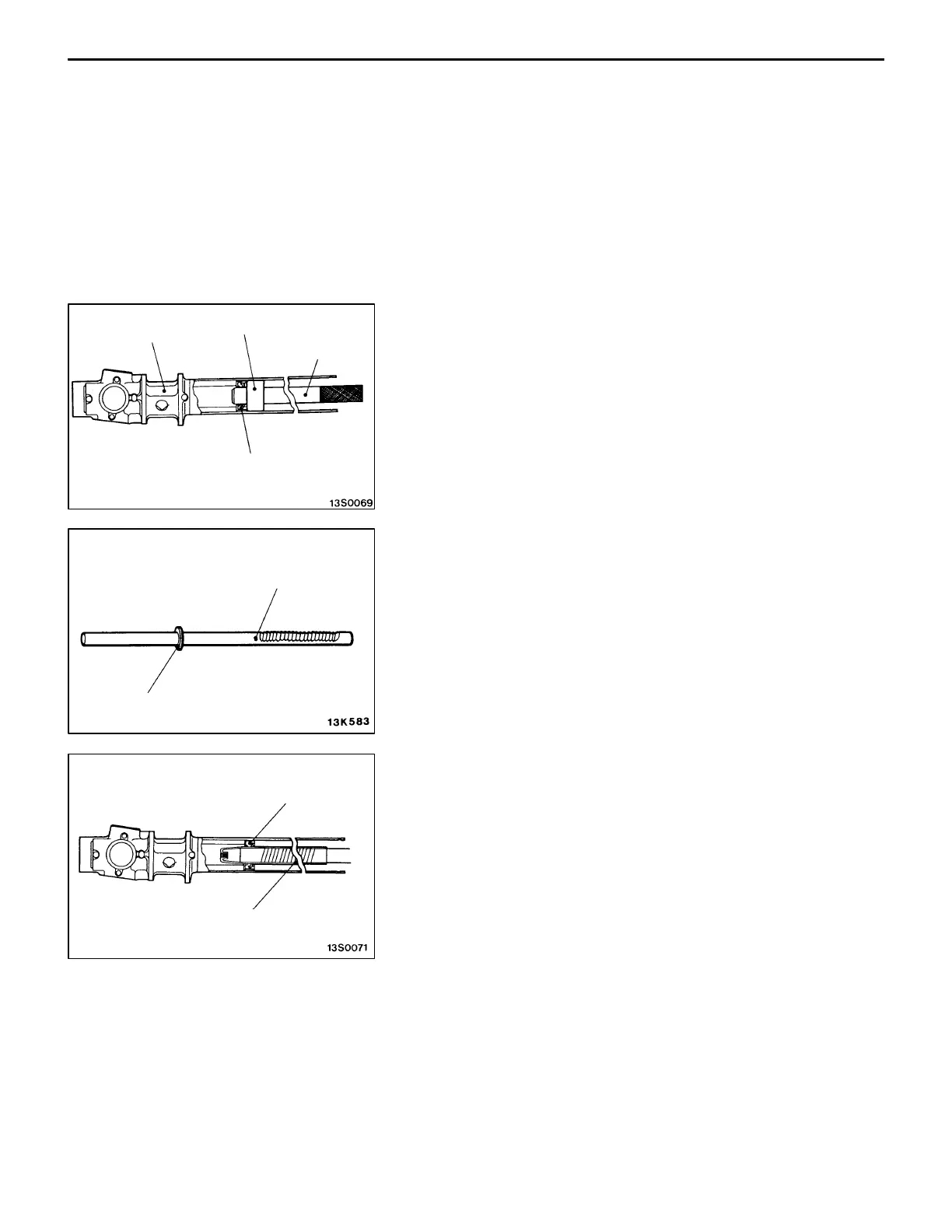

"AA OIL SEAL INSTALLATION
"CA RACK ASSEMBLY INSTALLATION
(1) Apply a coating of repair kit grease to the rack tooth
face.
Caution
Do not close the vent hole in the rack with grease.
(2) Cover rack serrations with special tool.
(3) Apply the specified fluid on the special tool, seal ring
and O-ring surfaces.
Specified fluid:
MITSUBISHI GENUINE ATF II
Caution
Do not use ATF-SP II.
(4) Slowly insert the special tool-covered rack into the gear
housing from power cylinder side.
Caution
When inserting the rack, align the oil seal center with
the tip of the special tool to prevent the retainer spring
from slipping.
MB991197
Gear housing
Oil seal
MB991199
Vent hole
Seal ring, O-ring
MB991214
Oil seal
